How do you set the lines not to overlap each other? [message #855511]

Tue, 24 April 2012 22:14

Che Bumagat

Messages: 41
Registered: February 2012

Member

Hello GMF Experts!

In my diagram editor, i have set my diagram preference to use a RECTILINEAR style of connection routing.

The way my diagram is structured is that I have a Figure A on the right side and I have a Figure B on the left. They have elements inside which I map using the lines.

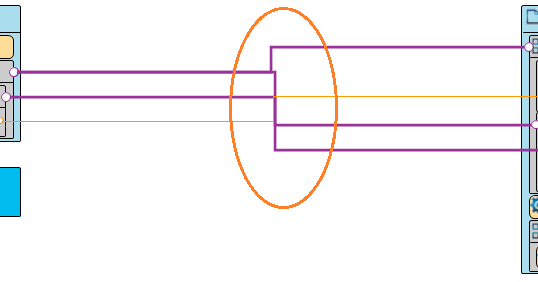

However, I notice that when mapping the elements from Figure A to B, the lines always stick in the middle (see picture). Is there a way to have these lines not overlap each other?

I'm new to GMF so appreciate the help you guys provide! Thanks!

index.php/fa/8077/0/

Attachment: gmf_rectilinear_sample.png
(Size: 8.45KB, Downloaded 662 times)
