Property window is not getting updated properly as per the node selection in GMF Editor [message #726731]

Mon, 19 September 2011 11:38

vinny503 Missing name

Messages: 156
Registered: August 2011

Senior Member

Hi All,

Property window is not getting updated properly as per the node selection in GMF Editor, The generated xml file contains the same parameters for both the components depending on the final highlighted component.
Please find the attached 2 images and an xml file.

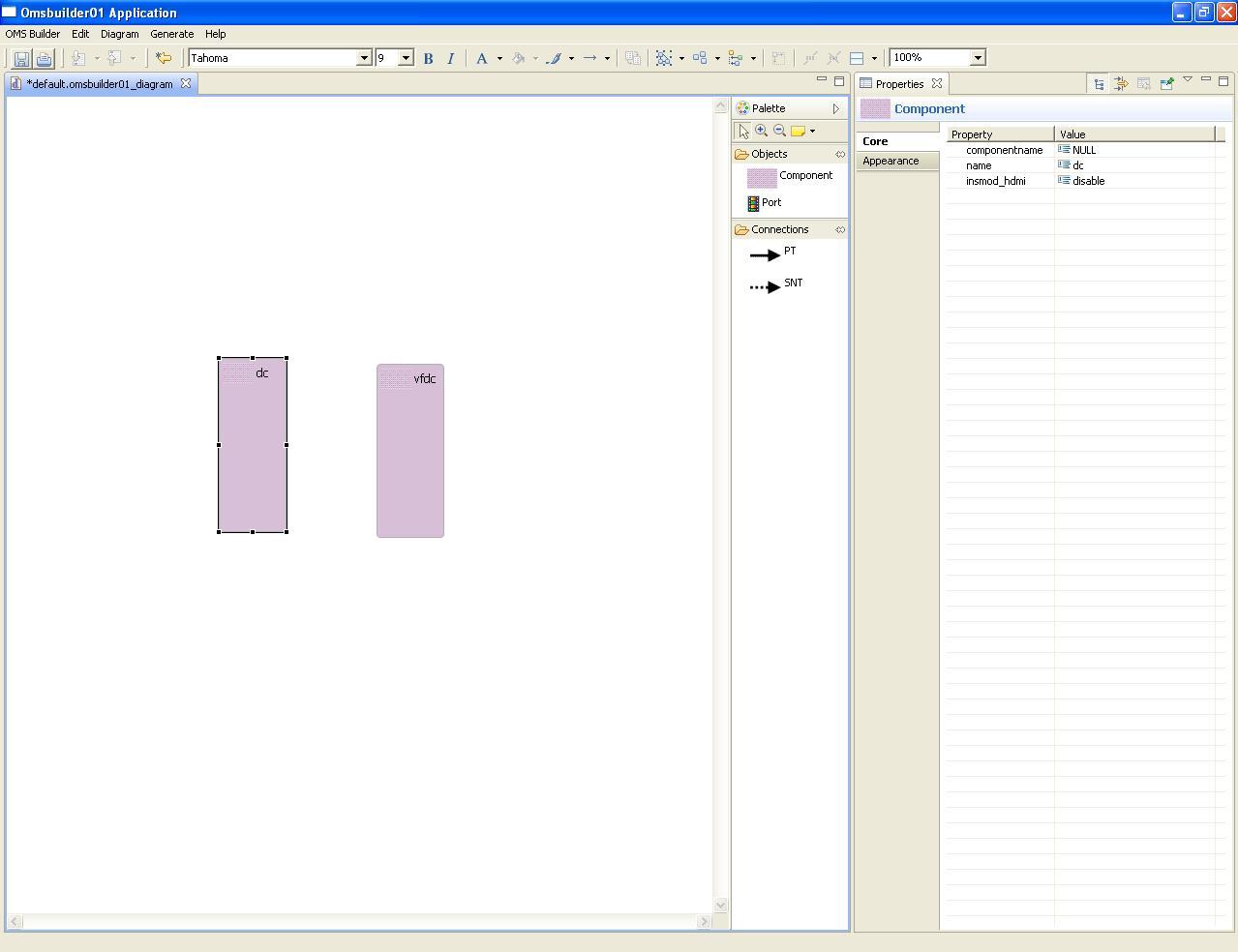

In 1st image dc node is highlighted,

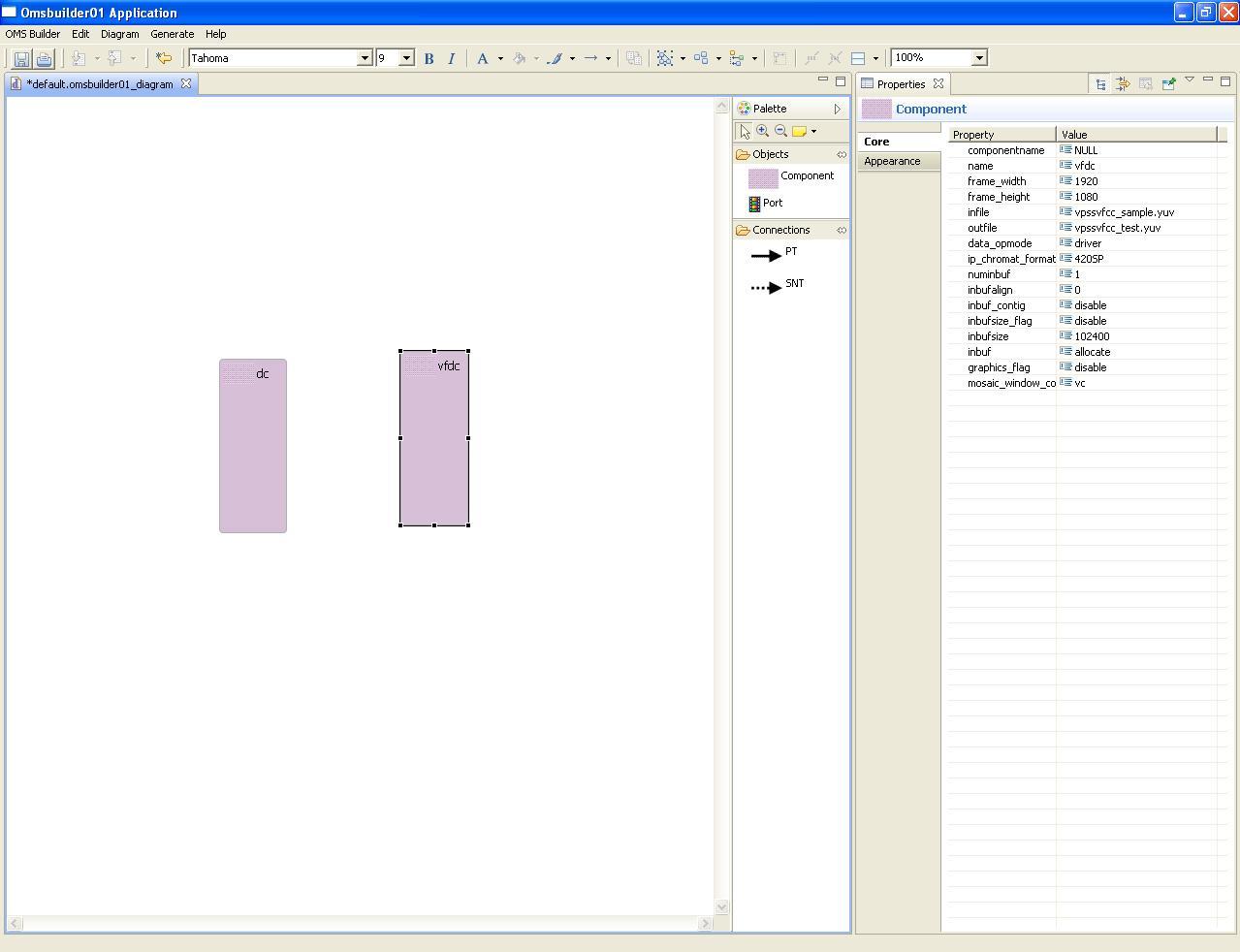

In 2nd image vfdc node is highlighted but in the generated xml contains vfdc parameters even for dc node.

Can anyone help me regarding this..

Thanks,
Vinay

Attachment: GMF Editor_dc_Component.JPG
(Size: 82.43KB, Downloaded 154 times)
Attachment: GMF Editor_vfdc_Component.JPG
(Size: 92.14KB, Downloaded 153 times)
Attachment: default.omsbuilder01
(Size: 0.85KB, Downloaded 197 times)

Report message to a moderator

Re: Property window is not getting updated properly as per the node selection in GMF Editor [message #729848 is a reply to message #726731]

Tue, 27 September 2011 05:46

Sven Krause

Messages: 119
Registered: July 2009

Senior Member

Hi Vinay,

what is the id attribute for your component eclass? componentname="NULL"
is for both entries the same.

Sven

Am 19.09.2011 13:38, schrieb vinny503:
> Hi All,
>
> Property window is not getting updated properly as per the node selection in GMF Editor, The generated xml file contains the same parameters for both the components depending on the final highlighted component.
> Please find the attached 2 images and an xml file.
>
> In 1st image dc node is highlighted,
> In 2nd image vfdc node is highlighted but in the generated xml contains vfdc parameters even for dc node.
>
> Can anyone help me regarding this..
>
> Thanks,
> Vinay
>
>

Report message to a moderator
