Problems with EdgeCreation tool with ElementBased Edges [message #1866303]

Sun, 26 May 2024 15:38

Toñi Reina

Messages: 20
Registered: May 2022

Junior Member

Hi,

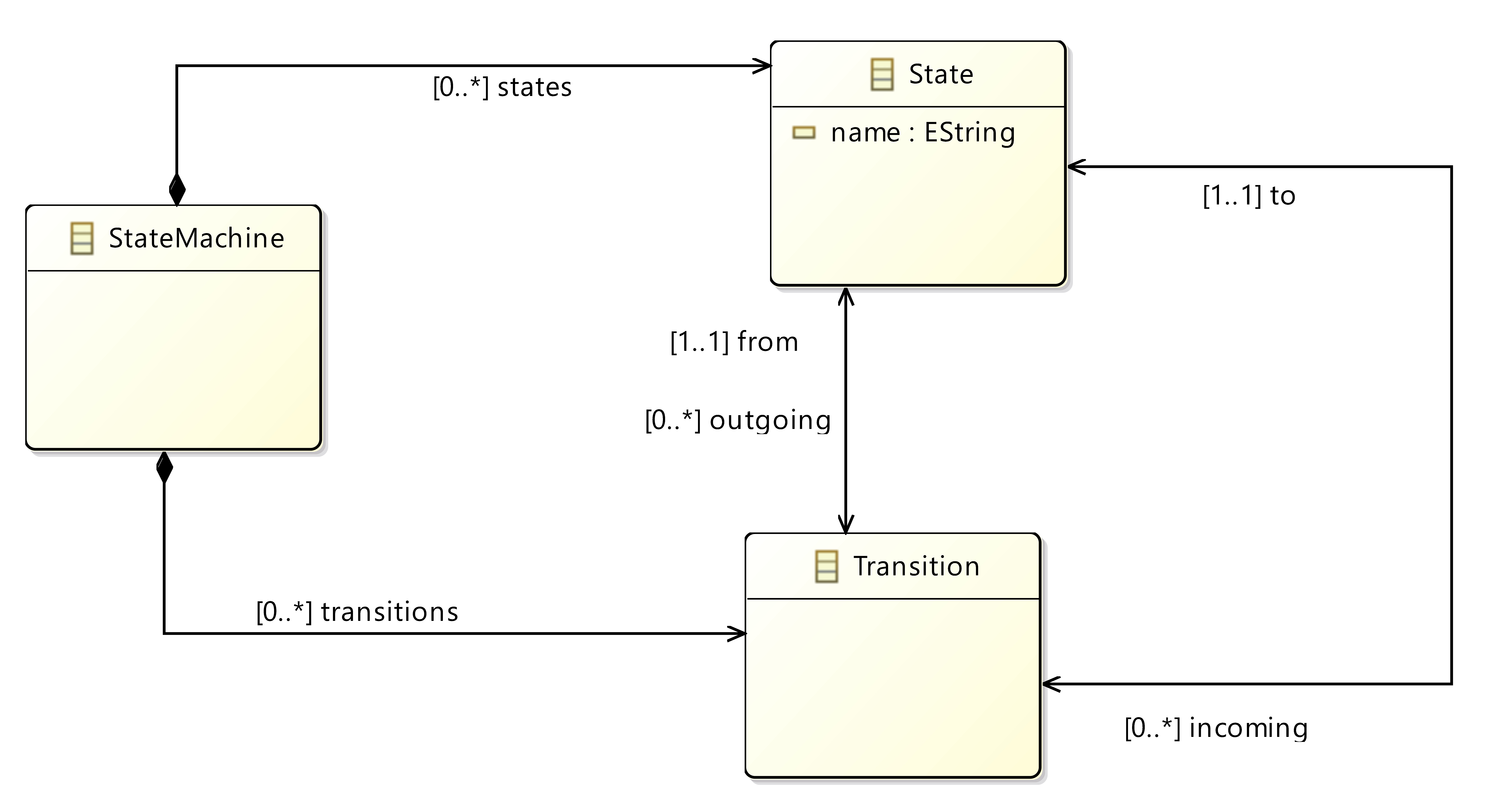

I'm trying to create a very simple editor for the following statemachine metamodel

index.php/fa/44490/0/

However, I have problems with the Edge creation tool. I have uploaded the odesign file.
The problem is that edges are drawn if they exist in the .sm file, but they are not created when I use the Creation Edge Tool.

I have tried different strategies, but I have no results.

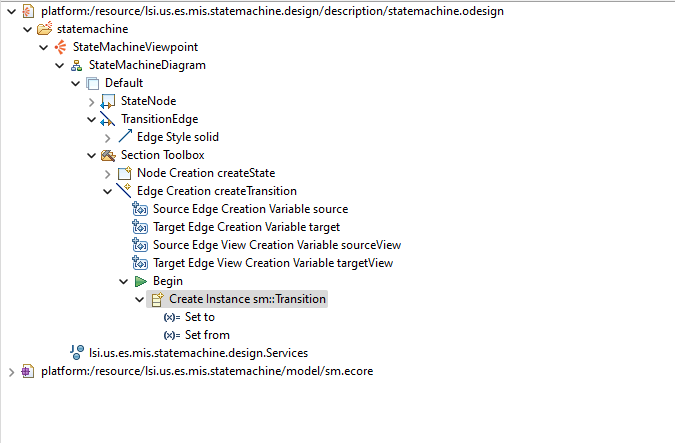

This is the sm.odesign

index.php/fa/44499/0/

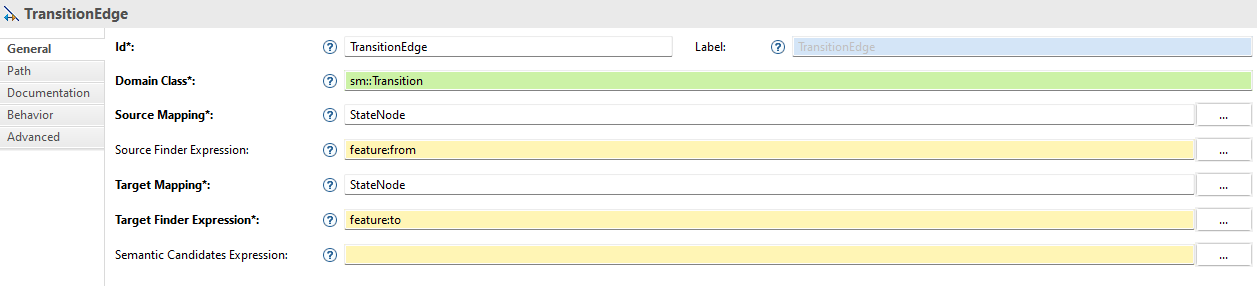

This is the configuracion of TransitionEdge

index.php/fa/44496/0/

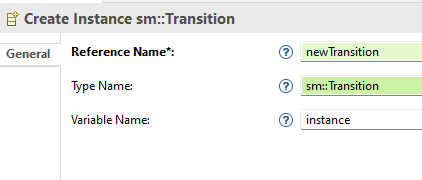

This is the configuration of CreateInstance

index.php/fa/44502/0/

The Set to operation has the followin properties:

Feature Name: to
Value Expression: var.target

The Set from operation has the followin properties:

Feature Name: from
Value Expression: var.source

What I'm doing wrong?

Thanks and best regards

Attachment: sm.jpg
(Size: 1.66MB, Downloaded 105 times)
Attachment: statemachine.odesign
(Size: 4.58KB, Downloaded 18 times)
Attachment: TransitionEdge.png
(Size: 21.79KB, Downloaded 97 times)
Attachment: odesign.png
(Size: 27.84KB, Downloaded 95 times)
Attachment: CreateInstance.png
(Size: 7.69KB, Downloaded 97 times)

Report message to a moderator

Re: Problems with EdgeCreation tool with ElementBased Edges [message #1866723 is a reply to message #1866303]

Wed, 05 June 2024 20:29

Tom Westbury

Messages: 11
Registered: December 2022

Junior Member

Hi Toñi,

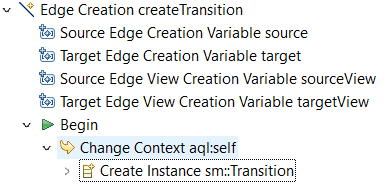

I believe the issue is that you're missing a change context action before the Create Instance in your odesign file.

Try this:
index.php/fa/44670/0/

Hopefully, that'll fix the issue

Attachment: Screenshot 2024-06-05 212540.png
(Size: 13.62KB, Downloaded 49 times)

Report message to a moderator
