customize the style of the bordered node [message #1862269]

Tue, 21 November 2023 12:11

Eclipse User

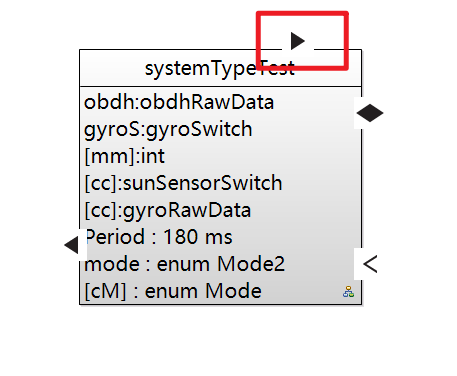

How to customize the style of the bordered node according to the location of the container where the bordered node is located. For example, I want the arrow of the input port to keep the direction of the arrow pointing inwards no matter which side of the container it is on?
index.php/fa/43744/0/

Attachment: 1.png
(Size: 14.84KB, Downloaded 186 times)

Re: customize the style of the bordered node [message #1862306 is a reply to message #1862269]

Thu, 23 November 2023 10:30

Eclipse User

Hi.
Unfortunately this is not supported directly by Sirius.
It is *possible*, but requires contributing a custom edit part.
UML Designer, which is based on Sirius, has an implementation of this that can be reused in other modelers, see https://github.com/ObeoNetwork/UML-Designer/tree/master/plugins/org.obeonetwork.gmf.runtime.diagram.ui.extension

Re: customize the style of the bordered node [message #1862349 is a reply to message #1862306]

Mon, 27 November 2023 20:19

Eclipse User

Ok thank you very much, this solved my problem.
