AQL query fails in change context [message #1861684]

Fri, 27 October 2023 10:22

Leonard Theisler

Messages: 16
Registered: September 2023

Junior Member

Hi,

I am trying to use a change context in order to create a new instance of a stage. The root element of the diagram is called composite application, and the stage is the child of guarded stage model. In the change context, I navigate from composite application to guarded stage model like so:

aql:self.component.guardedStageModel

I then try to create an instance of the stage, but it fails because the composite application is passed and not the guarded stage model. Is there anything wrong my AQL query? Does anyone have an idea on how I could fix this? I have attached a screenshot of the .odesign file.

Thank you.

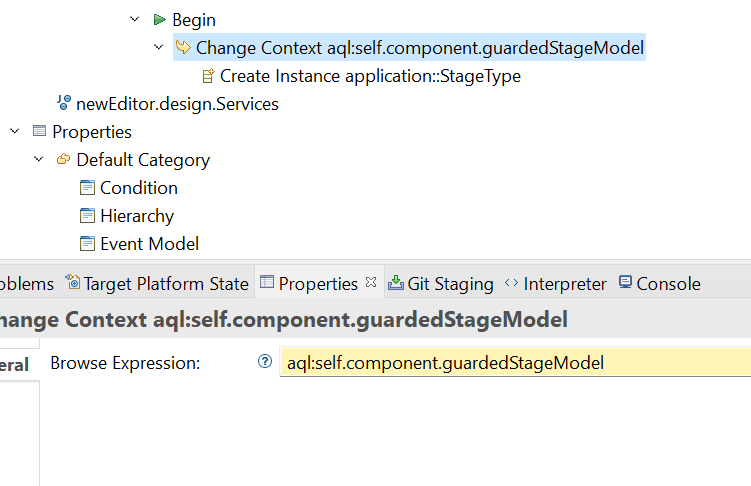

Attachment: ChangeContext.png
(Size: 29.46KB, Downloaded 46 times)
