Good morning at all,

I've got a problem while i try to run a function block that i create.
I followed the step 4 of the guide relative to create a function block and the guide on how to compile FORTE from source. The function blocks present in the library when i download the IDE work fine but the block i create doesn't work.

Can you please help me solving this problem?

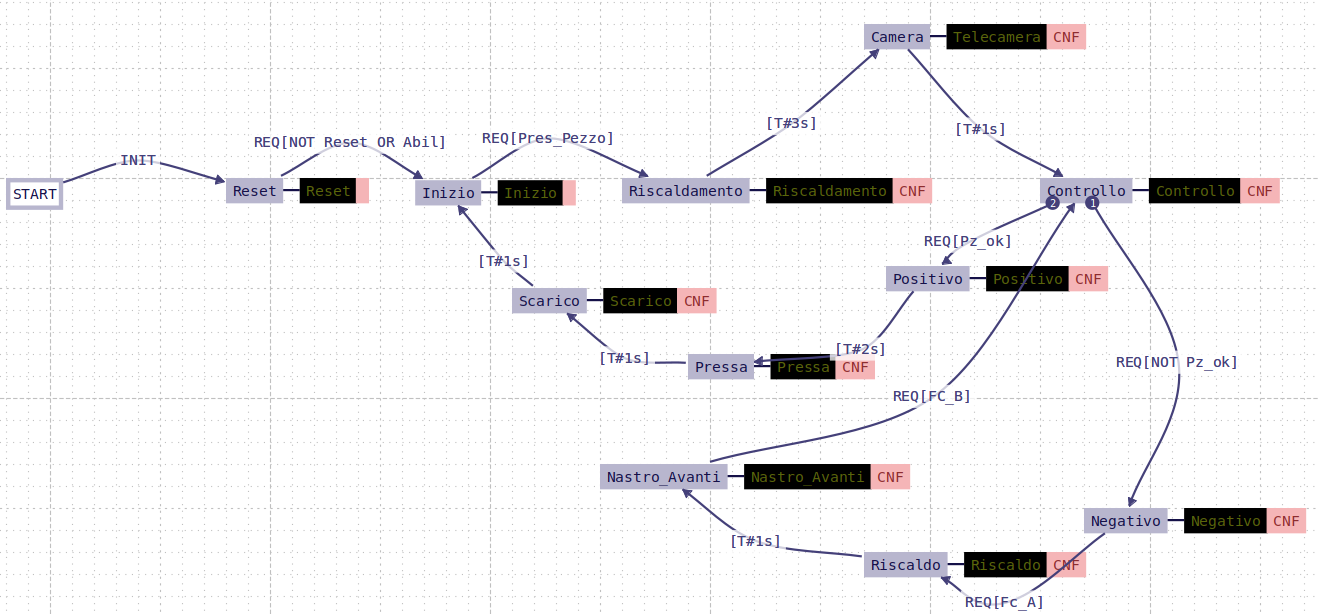

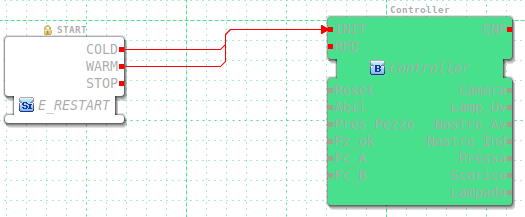

I leave the files generated when i export the FB (CMakeLists.txt, Controller.cpp and Controller.h) and the photo related to the ECC (Controller_ECC.png) of the function block in the attachment and the resource view ( Resource_view.png) in order to let you know how i connect the block to the resource (in the application view there's only this block).

below here there's the output in the deployment consolle


<Request Action="QUERY" ID="1">
<FB Name="*" Type="*"/>
</Request>

<Response ID="1"/>


<Request Action="CREATE" ID="2">
<FB Name="Controllore" Type="EMB_RES"/>
</Request>

<Response ID="2"/>


<Request Action="CREATE" ID="3">
<FB Name="Controller" Type="Controller"/>
</Request>

<Response ID="3" Reason="UNSUPPORTED_TYPE"/>


<Request Action="CREATE" ID="4">
<Connection Destination="Controller.INIT" Source="START.COLD"/>
</Request>

<Response ID="4" Reason="NO_SUCH_OBJECT"/>


<Request Action="CREATE" ID="5">
<Connection Destination="Controller.INIT" Source="START.WARM"/>
</Request>

<Response ID="5" Reason="NO_SUCH_OBJECT"/>


<Request Action="START" ID="5"/>

<Response ID="5"/>

Down here there are all the messages appeared in the simulated device manager

INFO: T#4221071617143: FORTE is up and running
INFO: T#4221071772174: Using provided bootfile location set in CMake: forte.fboot
INFO: T#4221071822009: Boot file forte.fboot could not be opened. Skipping... //now i deploy
INFO: T#4259893407187: Connection established by client
INFO: T#4259898596148: Connection closed by peer

Thanks to who will help me and have a good day

Attachment: CMakeLists.txt
(Size: 0.96KB, Downloaded 73 times)
Attachment: Controller.cpp
(Size: 10.00KB, Downloaded 82 times)
Attachment: Controller.h
(Size: 4.89KB, Downloaded 121 times)
Attachment: Controller_ECC.png
(Size: 120.05KB, Downloaded 124 times)
Attachment: Resource_view.png
(Size: 24.60KB, Downloaded 127 times)

Re: Can't execute the function block i create [message #1858935 is a reply to message #1858931]

Tue, 02 May 2023 08:31

Eclipse User

NO_SUCH_OBJECT means that the 4diac FORTE you are running does not have the FB with the given type name in its internal typelibrary. There are two common reasons for that:
- you are not running your self compiled 4diac FORTE
- you have not activated the module with your fb and therefore it is not compiled into your forte

Re: Can't execute the function block i create [message #1858937 is a reply to message #1858935]

Tue, 02 May 2023 09:23

Eclipse User

Thanks for the answer Mr. Zoitl, i found the problem: in step 7 in the building FORTE from source there's written that will appear FORTE_MODULE_EXTERNAL_EXAMPLE_TEST (in my case it could be FORTE_MODULE_EXTERNAL_ExportedFBs because i saved my exported fb in /home/nick/Scrivania/progetti_4diac/Progetto/ExportedFBs) but it never appears even i press configure multiple times

Could you please explain me how to solve this issue?

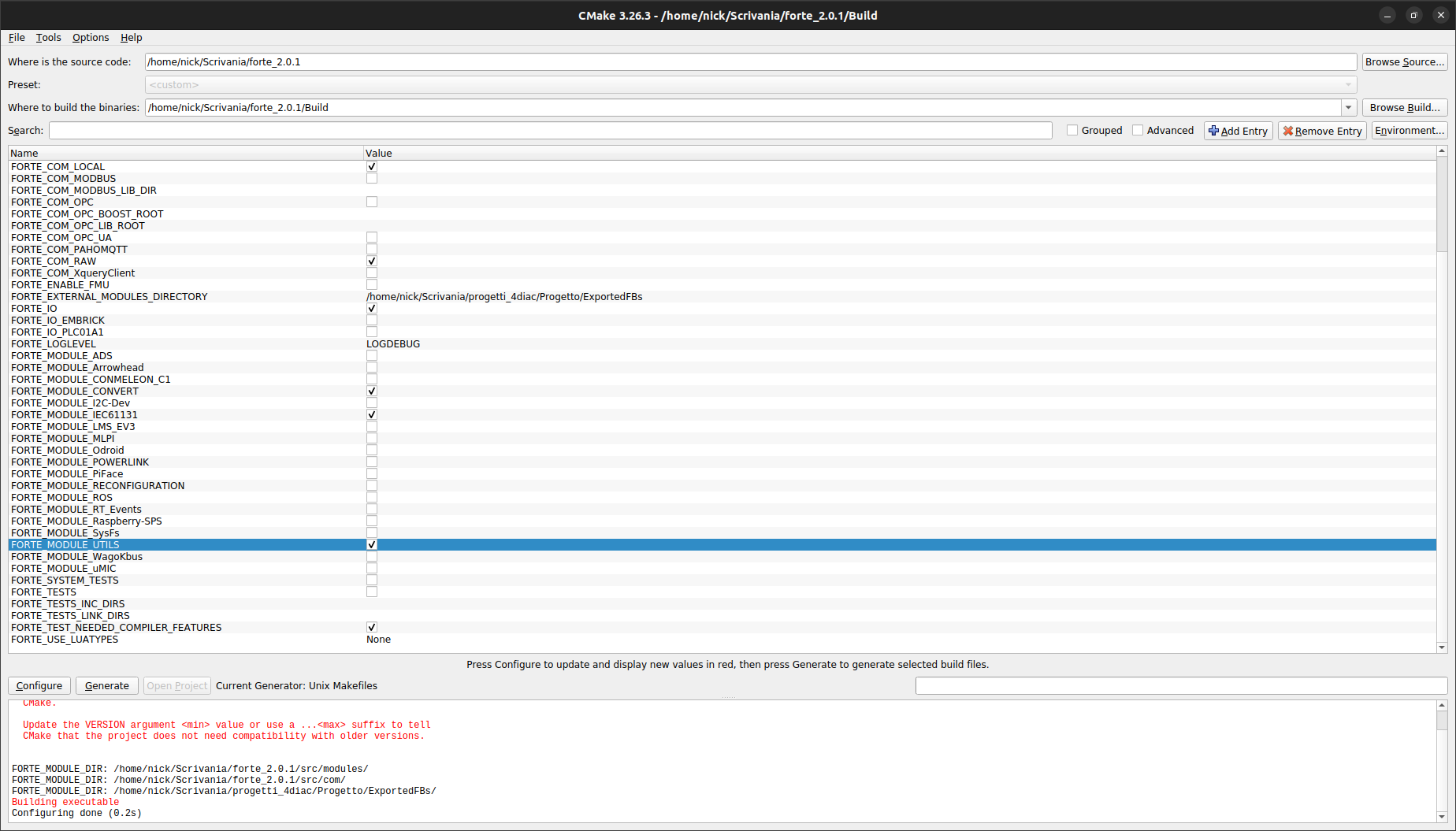

I leave you my cmake screen in the attachments after i press configure for the second time.

Thanks in advance

Nicolò

Attachment: CMke_GUI_2.png
(Size: 209.02KB, Downloaded 117 times)

Re: Can't execute the function block i create [message #1858939 is a reply to message #1858937]

Tue, 02 May 2023 10:11

Eclipse User

ok, i solved all the problems, now the block works well. thank for the help.

for who is reading this discussion the folder you have to select for the external modules is the folder which contains the folder with the .h .cpp and the CMakeLists.txt (in my case is /Scrivania/progetti_4diac/Progetto).

thanks for the help Mr Zoitl and have a good day,

Nicolò

Re: Can't execute the function block i create [message #1858940 is a reply to message #1858939]

Tue, 02 May 2023 10:35

Eclipse User

I was about to write that. Happy that it worked out. The idea is that you can have several modules in your external modules directory.
