Home » Eclipse Projects » Papyrus for Real Time » Statemachine UML-RT(PAPYRUS-RT STATE MACHINE PROBLEM)

Show: Today's Messages :: Show Polls :: Message Navigator

Statemachine UML-RT [message #1853433]

Fri, 01 July 2022 15:09

Hanene Bourrich

Messages: 1
Registered: June 2022

Junior Member

I am using Papyrus for creating model using uml-rt but when trying to create the state machine for the capsule the statemachine don't show in the menu.

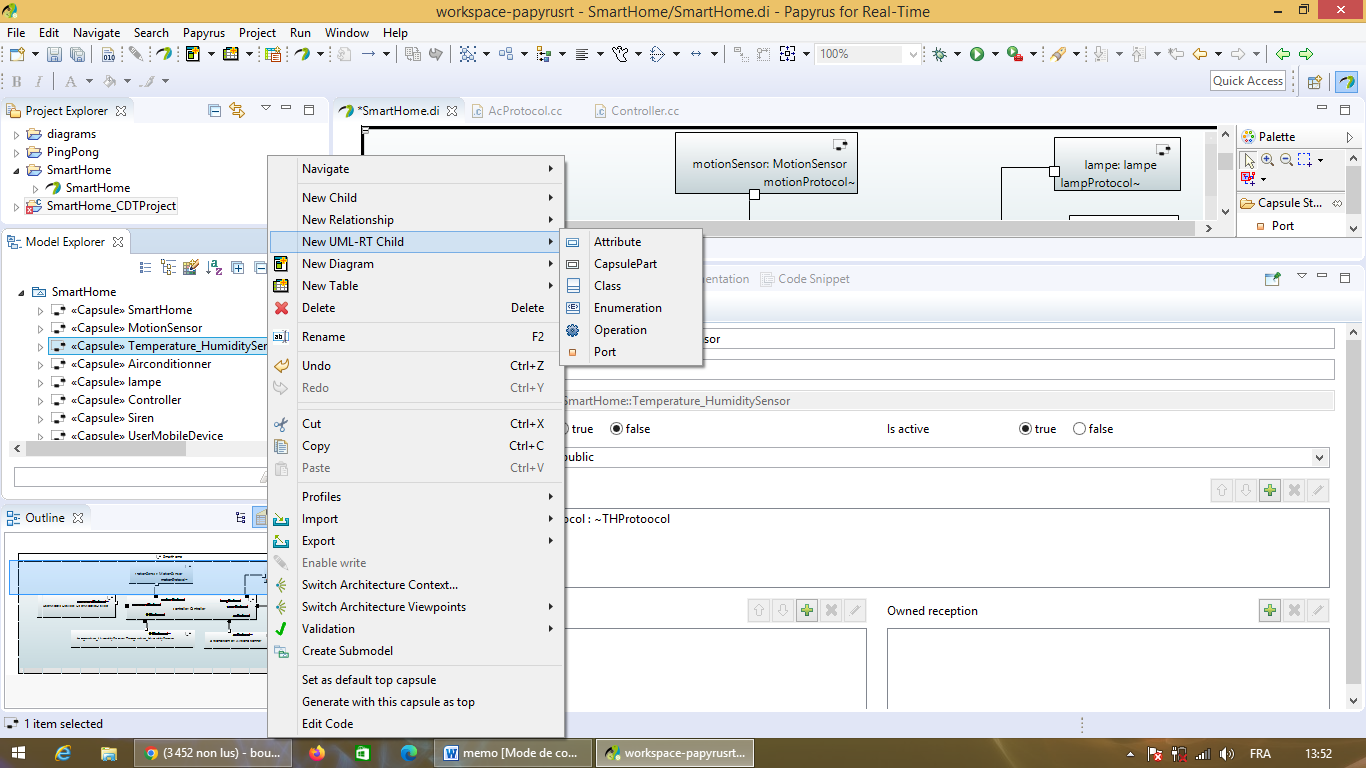

Attachment: menu.png
(Size: 133.72KB, Downloaded 71 times)

Report message to a moderator

Re: Statemachine UML-RT [message #1853486 is a reply to message #1853433]

Mon, 04 July 2022 15:42

Ernesto Posse

Messages: 438
Registered: March 2011

Senior Member

This is likely because your model doesn't have the UML-RT StateMachine profile, which happens if you select the "UML-RT for structural modelling" template when creating the model.

In order to be able to add state machines, you need to select either the "UML-RT basic" or "UML-RT for C++" template when you create the model. See the screenshots attached.

PS: If you plan to generate code, use the "UML-RT for C++" template.

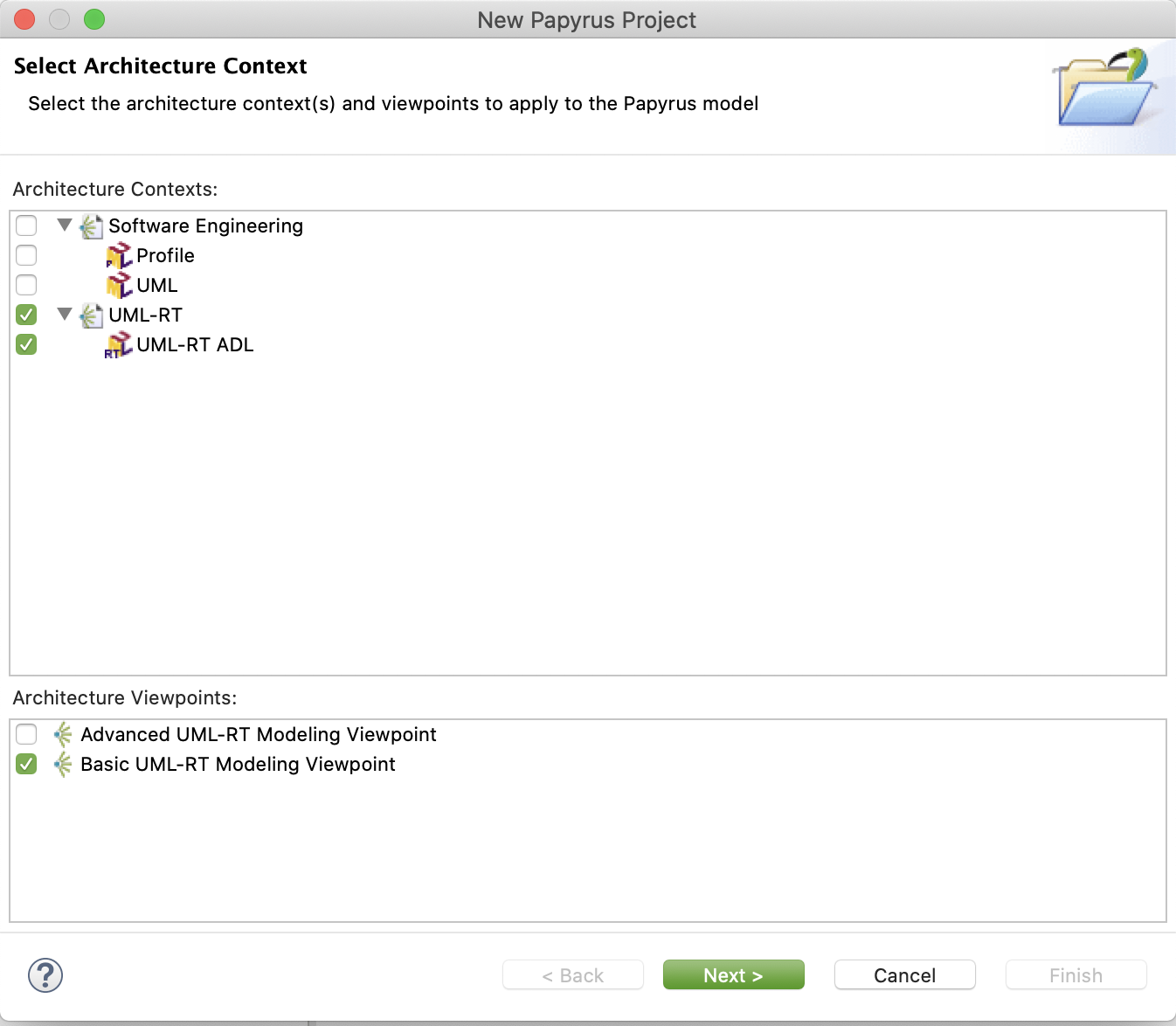

Attachment: new_model_dialog.png
(Size: 178.30KB, Downloaded 71 times)

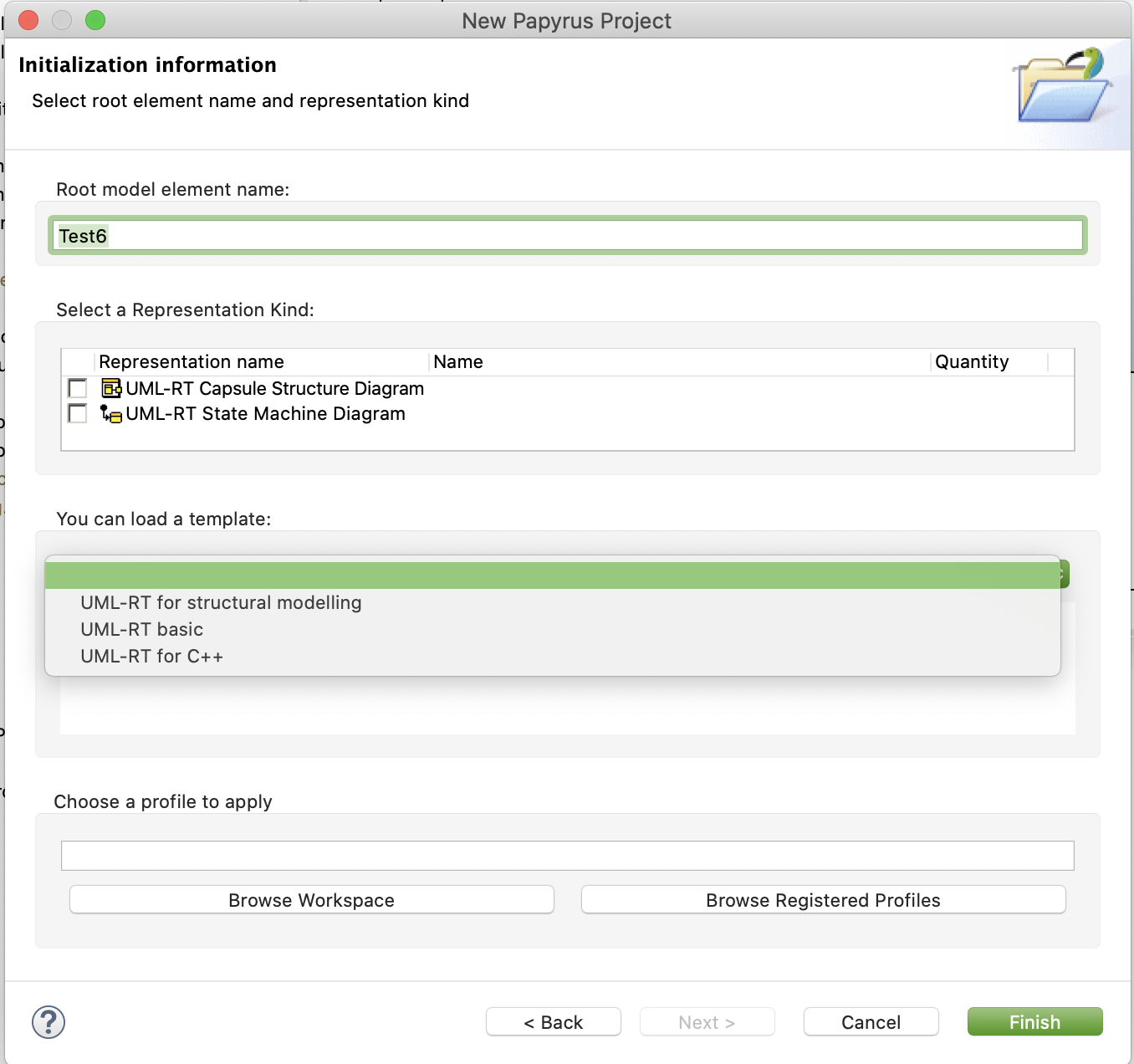

Attachment: template_selection.png
(Size: 320.65KB, Downloaded 65 times)

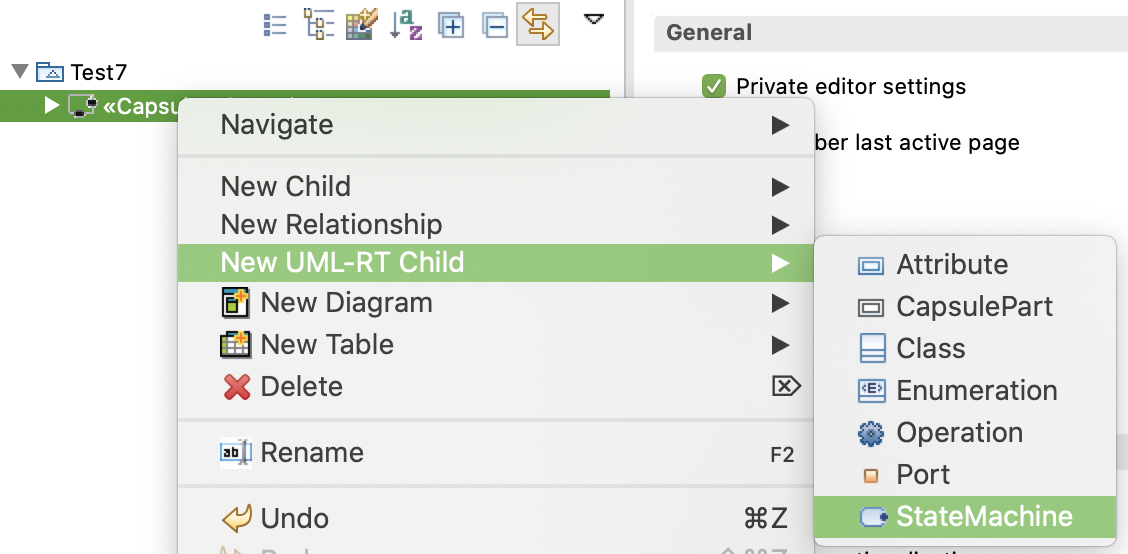

Attachment: new_child_menu.png
(Size: 510.36KB, Downloaded 67 times)

Report message to a moderator
