Home » Eclipse Projects » Eclipse Titan » usage of PRESENCE (how to descripe && in PRESENCE)

Show: Today's Messages :: Show Polls :: Message Navigator

usage of PRESENCE [message #1853021]

Wed, 15 June 2022 07:48

lou ban

Messages: 17
Registered: June 2020

Junior Member

hello,

as the struct

type record test_presence
{
    B1_Type    f1,
    B3_Type    f2,
    B4_Type    f3    optional,
};

if add

variant (f3) "PRESENCE({f1 = '0'B, f2 = '000'B})"

means if f1 = '1'B or f2 = '001'B, then f3 is present

But now I hope f1 = '0'B or f2 = '000'B, then f3 is not presence,
what should I do?

I donot find the usage in referenceGuide.pdf

Thanks a lot!

[Updated on: Wed, 15 June 2022 07:58]

Report message to a moderator

Re: usage of PRESENCE [message #1853022 is a reply to message #1853021]

Wed, 15 June 2022 08:01

Gábor Szalai

Messages: 133
Registered: December 2015

Senior Member

Sorry, but "and" is not supported by the RAW encoder.

Maybe the reorganization of the data structure helps to resolve the issue.

Can you share the original problem?

Report message to a moderator

Re: usage of PRESENCE [message #1853025 is a reply to message #1853022]

Wed, 15 June 2022 08:53

lou ban

Messages: 17
Registered: June 2020

Junior Member

thanks for your reply

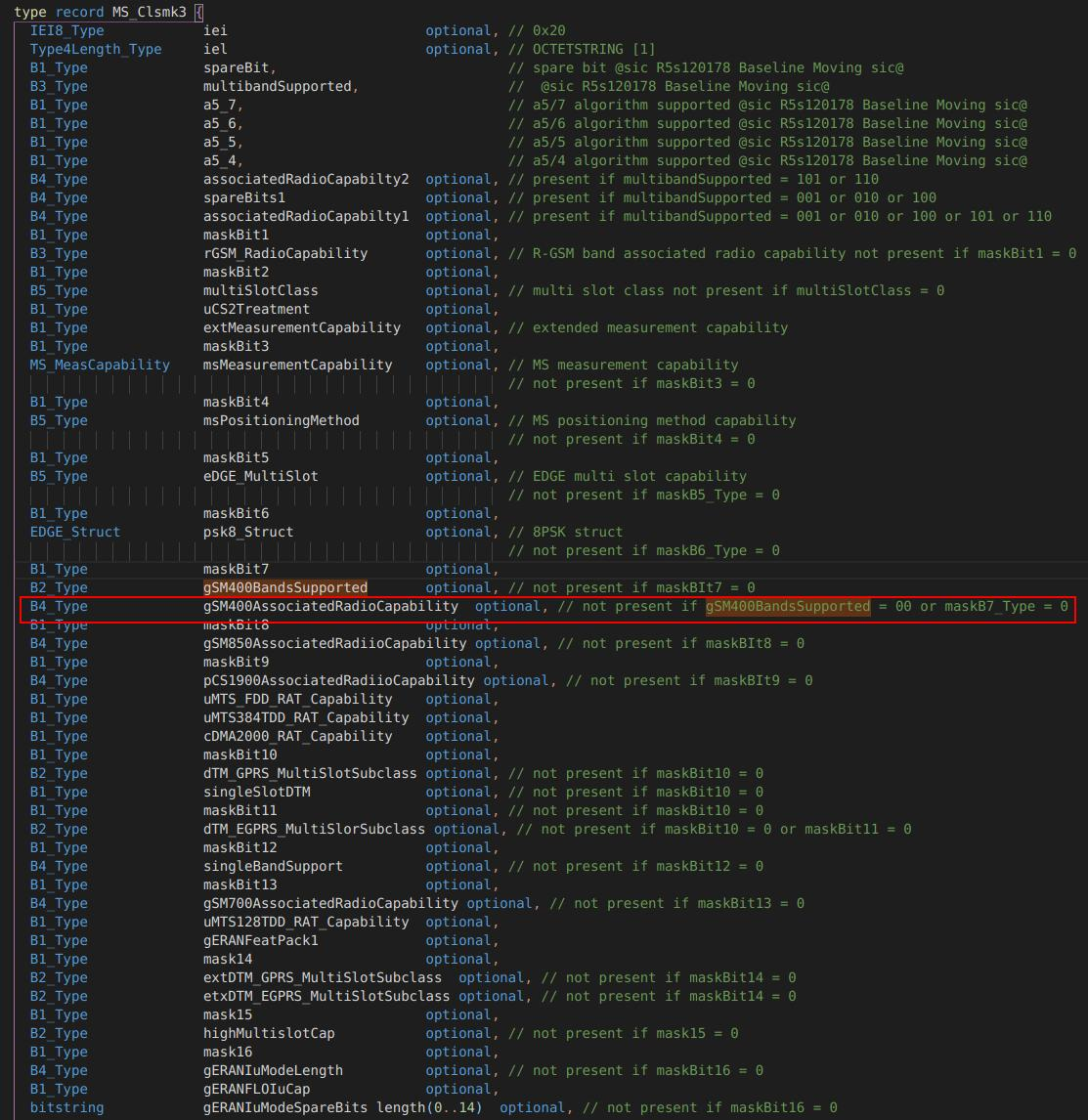

as the image, I hope descripe the

gSM400AssociatedRadioCapability

field

it is a 3gpp protocol

Attachment: 1.png
(Size: 1.18MB, Downloaded 68 times)

[Updated on: Wed, 15 June 2022 08:55]

Report message to a moderator

Re: usage of PRESENCE [message #1853026 is a reply to message #1853025]

Wed, 15 June 2022 09:08

Gábor Szalai

Messages: 133
Registered: December 2015

Senior Member

According to the comment the gSM400AssociatedRadioCapability present if the gSM400BandsSupported is not 00

try this:

variant (gSM400AssociatedRadioCapability) "PRESENCE({gSM400BandsSupported = '01'B, gSM400BandsSupported = '10'B,  gSM400BandsSupported = '11'B})"

If the maskBit7 is 0, then the gSM400AssociatedRadioCapability is not present.

Report message to a moderator

Re: usage of PRESENCE [message #1853027 is a reply to message #1853026]

Wed, 15 June 2022 09:17

lou ban

Messages: 17
Registered: June 2020

Junior Member

THANKS a lot

But if maskBit7 and gSM400AssociatedRadioCapability are not related, Is there a solution to resolve it?

Report message to a moderator

Previous Topic:	Ghost field in record to help RAW encoder choose union member
Next Topic:	usage of LENGTHTO and UNIT(elements)
