[SOLVED] Profile and stereotypes are not applied in the "Intro to Profile" example [message #1851540]

Thu, 07 April 2022 18:45

Eclipse User

Hi, I just launched the "Intro to Profile" example project created from the Eclipse wizard. The console seems to tell that everything was successfully generated.

But the "ExtendedPO2.uml" file doesn't show any profile and stereotype applications in the "Properties" view.

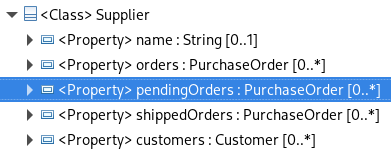

As an example, there is no "EReference" stereotype applied to the "pendingOrders" operation of the "Supplier" class although we have the following code in the project :

applyStereotype(pendingOrdersProperty, eReferenceStereotype);

.

What is going wrong?

Thank you.

index.php/fa/41875/0/

Attachment: Capture d’écran du 2022-04-08 00-38-54.png
(Size: 14.31KB, Downloaded 342 times)

[Updated on: Fri, 08 April 2022 09:29] by Moderator

Re: Profile and stereotypes are not applied in the "Intro to Profile" example [message #1851543 is a reply to message #1851540]

Fri, 08 April 2022 02:53

Eclipse User

Hi

If you look at /org.eclipse.uml2.examples.introtoprofiles/ExtendedPOEcore.metamodel.uml you should see what you expect. Perhaps you have been confused by /org.eclipse.uml2.examples.introtoprofiles/ExtendedPOEcoreBad.metamodel.uml or the unmodified original /org.eclipse.uml2.examples.introtoprofiles/ExtendedPO2.uml

Regards

Ed Willink

Re: Profile and stereotypes are not applied in the "Intro to Profile" example [message #1851545 is a reply to message #1851543]

Fri, 08 April 2022 03:07

Eclipse User

Hi Ed,

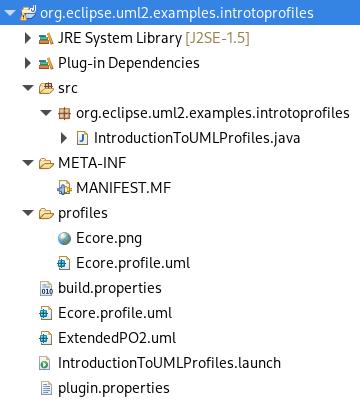

I could not see any "ExtendedPOEcore.metamodel.uml" or "ExtendedPOEcoreBad.metamodel.uml" file in the folder of the "Intro to profile" example ("/org.eclipse.uml2.examples.introtoprofiles/").

Thank you,

Maxime

index.php/fa/41876/0/

I'm using Eclipse Modeling Tools Version: 2021-12 (4.22.0) with UML2 version 5.5.2.v20210228-1829.

Attachment: Capture d’écran du 2022-04-08 09-04-01.jpg
(Size: 24.45KB, Downloaded 315 times)

Re: Profile and stereotypes are not applied in the "Intro to Profile" example [message #1851552 is a reply to message #1851545]

Fri, 08 April 2022 06:11

Eclipse User

Hi

They are created the save calls when you successfully run /org.eclipse.uml2.examples.introtoprofiles/src/org/eclipse/uml2/examples/introtoprofiles/IntroductionToUMLProfiles.java perhaps by launching /org.eclipse.uml2.examples.introtoprofiles/IntroductionToUMLProfiles.launch

You might need to refresh the project to see them.

Regards

Ed Willink

Re: Profile and stereotypes are not applied in the "Intro to Profile" example [message #1851554 is a reply to message #1851552]

Fri, 08 April 2022 06:25

Eclipse User

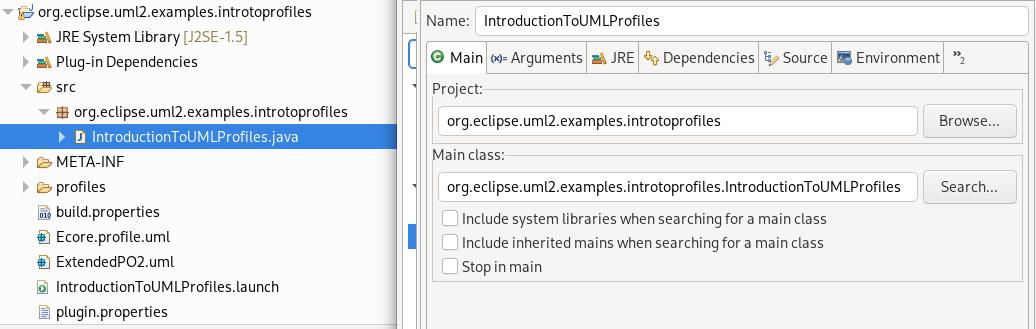

I can't see any of these files are saved in the "/org.eclipse.uml2.examples.introtoprofiles/src/org/eclipse/uml2/examples/introtoprofiles/IntroductionToUMLProfiles.java" file (see attached file).

Even after refreshing the project (using F5 or the "File > Refresh" command"), these files do not show up.

I run the project using the Eclipse "Run" button.

index.php/fa/41879/0/

Attachment: IntroductionToUMLProfiles.java
(Size: 20.93KB, Downloaded 138 times)
Attachment: Capture d’écran du 2022-04-08 12-18-28.jpg
(Size: 56.33KB, Downloaded 316 times)

Re: Profile and stereotypes are not applied in the "Intro to Profile" example [message #1851556 is a reply to message #1851554]

Fri, 08 April 2022 08:19

Eclipse User

Hi

Confusingly / fortuitously I was using my workspace in which I had developed better functionality for [1] that includes the saves that I referred to.

If you replace /org.eclipse.uml2.examples.introtoprofiles/src/org/eclipse/uml2/examples/introtoprofiles/IntroductionToUMLProfiles.java with the attachment to the bug, you may have more success.

Regards

Ed Willink

[1] https://bugs.eclipse.org/bugs/show_bug.cgi?id=569035

Re: Profile and stereotypes are not applied in the "Intro to Profile" example [message #1851563 is a reply to message #1851556]

Fri, 08 April 2022 09:28

Eclipse User

Indeed, replacing the default "/org.eclipse.uml2.examples.introtoprofiles/src/org/eclipse/uml2/examples/introtoprofiles/IntroductionToUMLProfiles.java" file with the attachment to the bug solved the problem.

I'm attaching the corrected "IntroductionToUMLProfiles.java" file to this post.

Thank you Ed.

Attachment: IntroductionToUMLProfiles.java
(Size: 23.34KB, Downloaded 130 times)
