Invalid feature as name [message #1851508]

Thu, 07 April 2022 07:29

jo ber

Messages: 94
Registered: August 2018

Member

Hi

I've defined an *.odesign file with a diagram to contain my own domain objects.

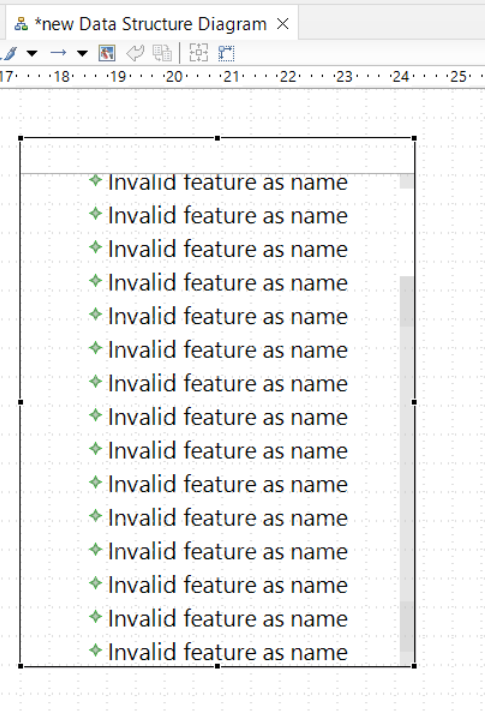

When I place the domain object in the diagram the message 'Invalid feature as name' is displayed:
index.php/fa/41871/0/

I guess, the tool expect my object to have a feature called name. But, I don't want to add this feature in my model. The question is how can I tell the tool to use another feature available in my domain model?

Thank you and kind regards.

Attachment: Q1.PNG
(Size: 123.07KB, Downloaded 347 times)

Report message to a moderator

Re: Invalid feature as name [message #1851509 is a reply to message #1851508]

Thu, 07 April 2022 07:41

Francesco Bedini

Messages: 32
Registered: March 2018

Member

Inside the style of that object, in the label section, you probably have a field containing
feature:name

You can change it to:
feature:your_name_attribute
or, if you need to do some concatenation:
aql:self.your_name_attribute1 + ' ' + self.another_attr

[Updated on: Thu, 07 April 2022 07:41]
