Sirius Web: Error without description when using Create Node tool [message #1851041]

Fri, 25 March 2022 14:10

Ain-Martin Kink

Messages: 3
Registered: March 2022

Junior Member

Hello,

Previously I have successfully developed BPMN modeling tool using Sirius Desktop and now I'm trying to recreate it on Sirius Web.

Currently I have described the Domain of the BPMN in Sirius Web and started decribing the View and its elements (nodes and edges). I'm testing the possibilites of node tools and description to work in modeling project instance.

I have a problem with Sirius Web's node creation tool.

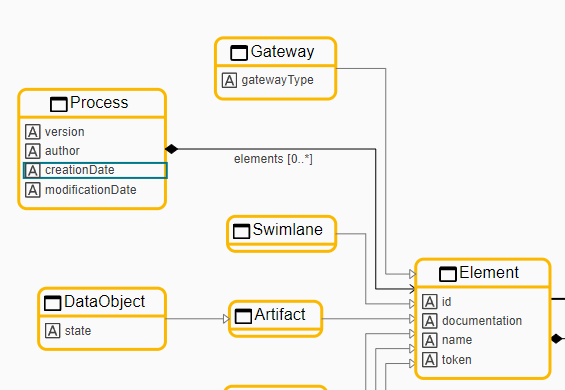

A glimpse of my domain model:
index.php/fa/41805/0/

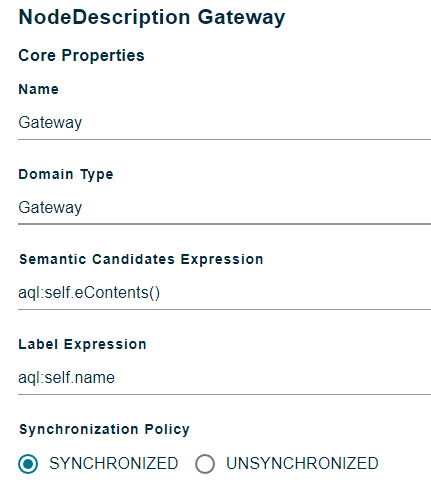

Firstly in the View object I described the gateway node:
index.php/fa/41804/0/

Then I created Change Context object for the node: aql:self.

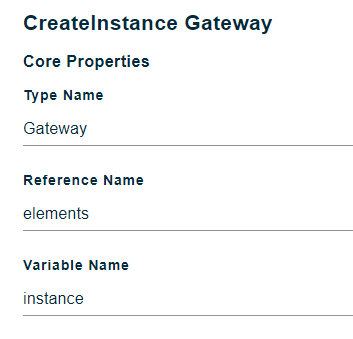

After that the Create Instance object:
index.php/fa/41806/0/

Gateway objects in Domain explorer:
index.php/fa/41807/0/

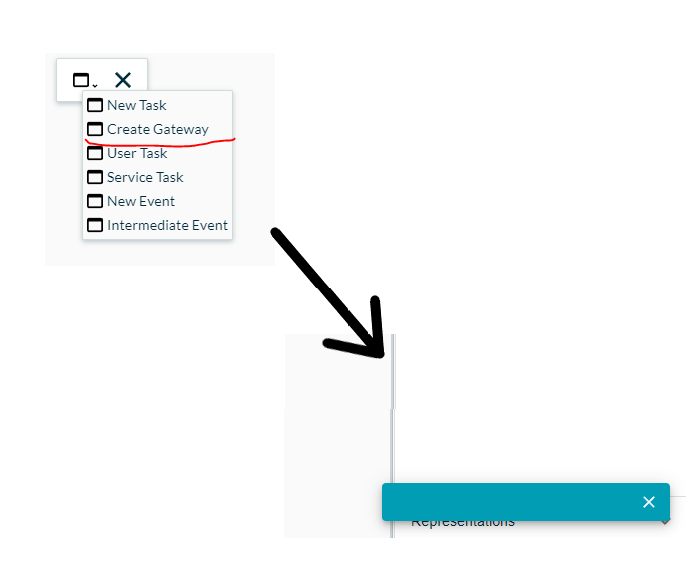

Now to modeling project instance, when trying to use described tool in modeling project instance I get this error (with no text):
index.php/fa/41809/0/

If someone can point out my mistakes then I would be very thankful for your help. And if you need more information about my problem, then please ask further questions and I try to answer them.

Thank you in advance.

Attachment: gateway_node_desc.PNG
(Size: 13.74KB, Downloaded 181 times)
Attachment: gw_element_process.PNG
(Size: 17.70KB, Downloaded 186 times)
Attachment: create_gateway_instance.PNG
(Size: 7.27KB, Downloaded 176 times)
Attachment: gateway_in_explorer.PNG
(Size: 3.88KB, Downloaded 178 times)
Attachment: error.PNG
(Size: 17.81KB, Downloaded 182 times)

Report message to a moderator

Re: Sirius Web: Error without description when using Create Node tool [message #1851307 is a reply to message #1851041]

Fri, 01 April 2022 20:07

Pierre-Charles David

Messages: 637
Registered: July 2009

Senior Member

Hi,

The "Domain Type" in the Create Instance operation is not qualified (domainName::Gateway), so it's possible that Sirius can not resolve the plain name into an actual type to instanciate.
It's difficult to tell without the whole context.

Do you see anything in the server's logs? Some stack trace maybe?

Pierre-Charles David - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator

Re: Sirius Web: Error without description when using Create Node tool [message #1851312 is a reply to message #1851307]

Fri, 01 April 2022 21:41

Ain-Martin Kink

Messages: 3
Registered: March 2022

Junior Member

Pierre-Charles David wrote on Fri, 01 April 2022 20:07

Hi,

The "Domain Type" in the Create Instance operation is not qualified (domainName::Gateway), so it's possible that Sirius can not resolve the plain name into an actual type to instanciate.

Thank you very much, this solved my problem - error is gone and the tool started functioning as expected.
