Close Sirius Dialog Widget from Java Services [message #1850915]

Tue, 22 March 2022 07:57

Hakan Yüksek

Messages: 22
Registered: October 2021

Junior Member

Hi everyone, I am struggling to save changes and close the sirius dialog box in java service method.

I have a Dialog Box in the odesign file. The user can enter inputs by using this dialog. After the user clicks to the OK Button, my service method starts to running, In this method, I checked the inputs. If all inputs is valid according to my rules, I want to save the new instance to the model and close the diagram.
I tried to solve this problem by using the following code;

Display.getCurrent().getActiveShell().close();

This code helps to close dialog box but the new instance won't be created in this situation.

If I select the "Close Dialog On Click "Option of the OK Button, this solves the problem but in this situation my validation rules will not be performed.

How can I solve this problem?

Report message to a moderator

Re: Close Sirius Dialog Widget from Java Services [message #1851305 is a reply to message #1850915]

Fri, 01 April 2022 19:58

Pierre-Charles David

Messages: 662
Registered: July 2009

Senior Member

Hi,

You do not need to "save" anything in the case when the changes are valid.
All the model changes performed inside such a dialog are directly applied to the edited model elements (even though they appear in dialog they behave like properties views in this regard).

What you can try is to rollback the changes if they are *not* valid: in your Java service try to "throw new OperationCanceledException()". This is actually what the "Cancel" button does to revert the already applied changes if the user cancels the dialog.

Pierre-Charles David - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator

Re: Close Sirius Dialog Widget from Java Services [message #1851547 is a reply to message #1851305]

Fri, 08 April 2022 07:39

Hakan Yüksek

Messages: 22
Registered: October 2021

Junior Member

Hi Pierre, I want to handle the option of the "Close Dialog On Click" in the code. How can I do it?

Pierre-Charles David wrote on Fri, 01 April 2022 19:58

Hi,

You do not need to "save" anything in the case when the changes are valid.
All the model changes performed inside such a dialog are directly applied to the edited model elements (even though they appear in dialog they behave like properties views in this regard).

What you can try is to rollback the changes if they are *not* valid: in your Java service try to "throw new OperationCanceledException()". This is actually what the "Cancel" button does to revert the already applied changes if the user cancels the dialog.

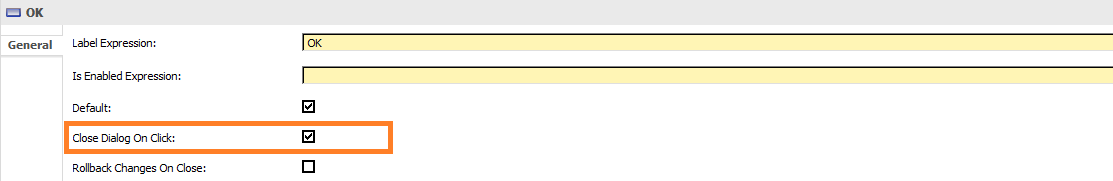

Attachment: SiriusDialogButtonExample.png
(Size: 4.57KB, Downloaded 106 times)

Report message to a moderator
