Scout 22 Contacts App [message #1850811]

Thu, 17 March 2022 08:59

Eclipse User

Hi,
I like the new look, especially the menu style Outline Buttons in the contacts app. However, I couldn't figure out how to show the icon in the button like it is done in the contacts app.

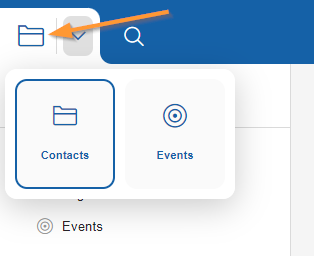

Contacts app:
index.php/fa/41780/0/

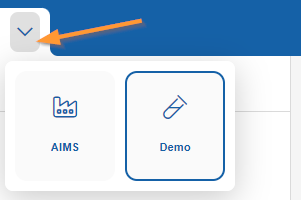

My app:

I looked at the source for the contacts app
https://github.com/bsi-software/org.eclipse.scout.docs/tree/releases/22.0/code/contacts/org.eclipse.scout.contacts.client

but couldn't find anything explaining the icon.

Thanks.
Nils

Attachment: contacts.png
(Size: 12.68KB, Downloaded 357 times)
Attachment: my-app.png
(Size: 8.34KB, Downloaded 391 times)

Re: Scout 22 Contacts App [message #1850823 is a reply to message #1850811]

Thu, 17 March 2022 11:35

Eclipse User

The icon is only shown if there is an OutlineViewButton with DisplayStyle set to DisplayStyle.TAB, like the SearchOutlineViewButton in the contacts app. Because in that case you need to be able to switch between the outlines which is done by clicking on such an icon. If you always want to show the icon, you could adjust the default behavior by extending ViewButtonBox.js and setting selectedMenuButtonAlwaysVisible = true.

You should be able to use the object factory to extend the ViewButtonBox

[Updated on: Thu, 17 March 2022 11:46] by Moderator

Re: Scout 22 Contacts App [message #1850829 is a reply to message #1850823]

Thu, 17 March 2022 15:36

Eclipse User

Thank you Claudio. It is working exactly as you said.
