StateInvariant visualization (StateMachine Diagram) [message #1848946]

Sun, 26 December 2021 15:29

Andrea Perri

Messages: 2
Registered: December 2021

Junior Member

Hello,

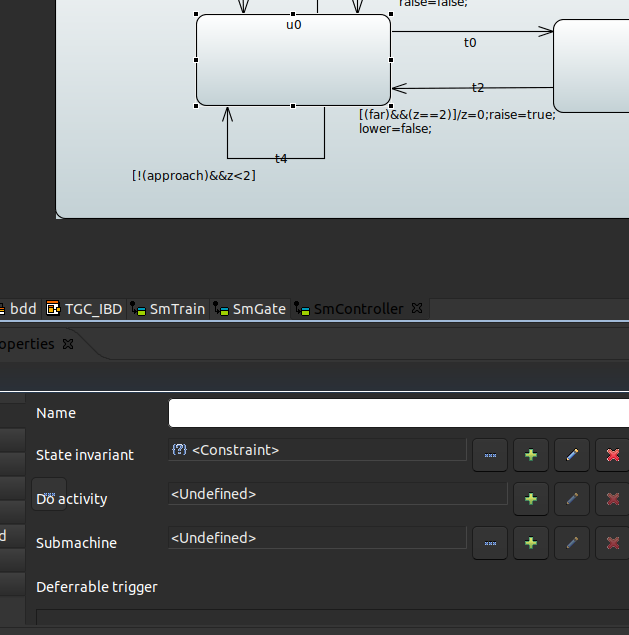

I am trying to modify the style sheet in order to make state invariant constraints visible inside StateMachine diagrams.

I tried things like this and similar:

StateMachineDiagram State > StateInvariant {
	visible:true;
}

I cannot figure out how to refer to StateInvariant.

Hope my explanation was clear enough, thanks in advance.

Attachment: stateinva.png
(Size: 39.97KB, Downloaded 161 times)

Report message to a moderator

Re: StateInvariant visualization (StateMachine Diagram) [message #1848977 is a reply to message #1848946]

Mon, 27 December 2021 19:55

Carsten Pitz

Messages: 495
Registered: May 2015
Location: Germany

Senior Member

Hi Andrea,

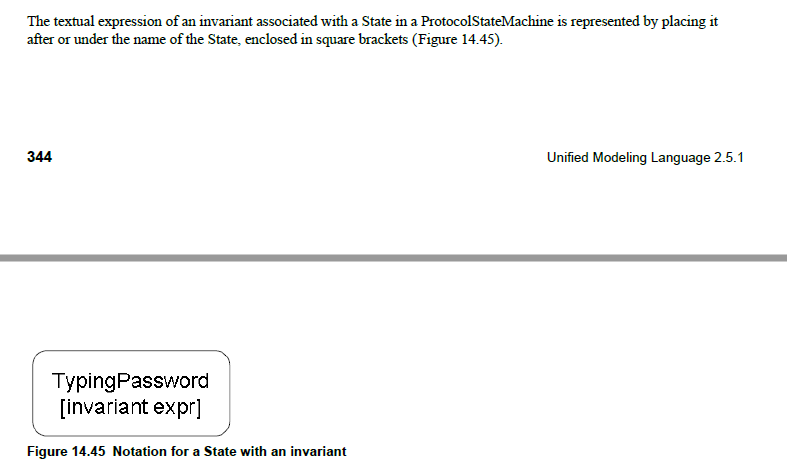

I also figured out a way to show invariants as shown in the spec

index.php/fa/41501/0/

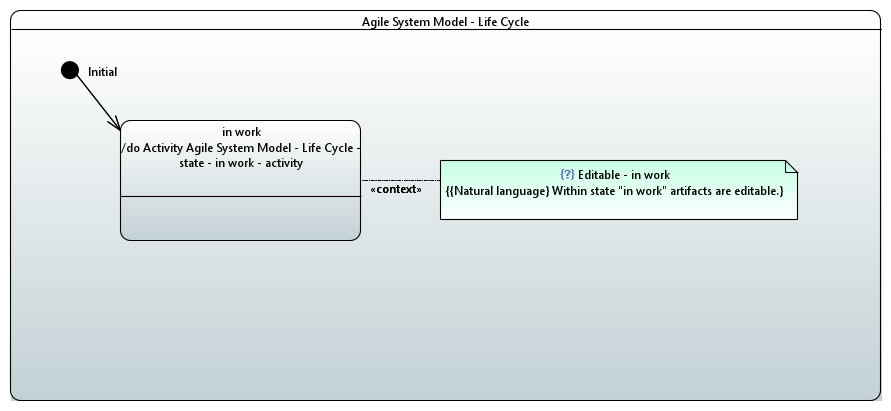

Nevertheless I prefer to following notation simply because it is no special case:

index.php/fa/41502/0/

/Carsten

PS I am currently modeling a modeling guideline for agile system modeling. Hints and suggestions are welcome.

Attachment: Screenshot 2021-12-27 204922.png
(Size: 23.17KB, Downloaded 364 times)
Attachment: stateInvWorkAround.png
(Size: 19.73KB, Downloaded 381 times)

[Updated on: Mon, 27 December 2021 19:57]

Report message to a moderator

Re: StateInvariant visualization (StateMachine Diagram) [message #1848991 is a reply to message #1848977]

Tue, 28 December 2021 14:07

Andrea Perri

Messages: 2
Registered: December 2021

Junior Member

Hello Carsten, thanks for the reply.

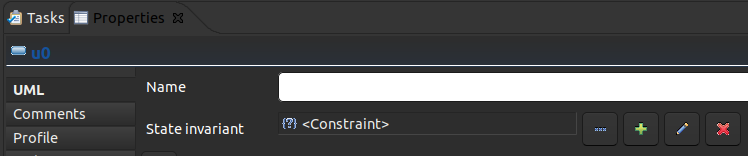

So there is no way to automatically display the invariants after specifying it in the UML tab? Without having to also write it manually?

index.php/fa/41504/0/

Thanks.

Attachment: umlTab.png
(Size: 14.52KB, Downloaded 348 times)

Report message to a moderator

Re: StateInvariant visualization (StateMachine Diagram) [message #1848992 is a reply to message #1848991]

Tue, 28 December 2021 14:22

Carsten Pitz

Messages: 495
Registered: May 2015
Location: Germany

Senior Member

Just drag'n'drop the constraint created by magic into the diagram and you're done.
/Carsten

Report message to a moderator

Re: StateInvariant visualization (StateMachine Diagram) [message #1849239 is a reply to message #1848992]

Mon, 10 January 2022 07:58

Alberto Debiasi

Messages: 84
Registered: March 2018

Member

Hi Carsten,

The style sheet used to customize the theme of the diagrams seems the right place to show the state invariant constraints.

Do you confirm that such approach does not work in this case?

Alberto

Report message to a moderator

Re: StateInvariant visualization (StateMachine Diagram) [message #1849242 is a reply to message #1849239]

Mon, 10 January 2022 08:56

Carsten Pitz

Messages: 495
Registered: May 2015
Location: Germany

Senior Member

Hi Alberto,
I am just an Eclipse Papyrus user. I have no stakes in the development of Eclipse Papyrus. As a result I feel not being the right person to confirm this.
But being more on the SE process side, establishing (MB)SE at my customers I already used almost all MBSE tools available. On that base I can confirm you that Eclipse Papyrus beside Eclipse Capella is one of the least buggy. All these tools have issues. I presume every non-trivial piece of software has issues. But I faced the least issues with these two MBSE tools. And I used both a damn lot.
And all of the issues I faced with Eclipse Papyrus and its predecessor Topcased so far are non-blocking issues.
As an example of an issue a personally rate blocker issue: Try the following steps with a commercial MBSE tools, I am not allowed to disclose the name due to its EULA (end user license agreement):
1. create a new UML or SysML project
2. create two elements connected by a directed relation
3. get the provider UUID of the provider element and safe it in a text editor, on paper, or else
4. delete the provider element from the model
5. safe the project
6. to be sure no cashing effects are involved, transfer the project file to another PC
7. re-open the project on the second PC
8. export the model as XMI
9. open the XMI file in a text editor and search the provider UUID
You will face the relation is still in the model and the refId of the provider has no Id counterpart. That tool cannot even ensure referential integrity of the model.
Ok, I first reported that issue some 15 years ago. I have reported it two more times so far and the two times I got the statement: "Thank you for reporting this issue, which is new to us.". Ok, when I confront them with the old tickets, they simply get upset ;-)
/Carsten

[Updated on: Mon, 10 January 2022 08:58]

Report message to a moderator

Re: StateInvariant visualization (StateMachine Diagram) [message #1849350 is a reply to message #1849242]

Thu, 13 January 2022 12:49

Vincent Lorenzo

Messages: 264
Registered: June 2010
Location: Paris Saclay, France

Senior Member

Hello Alberto,
to my mind, it is not possible to display StateInvariant constraint using CSS. You must DnD the Constraint from the ModelExplorer into your diagram.

Regards,
Vincent

Report message to a moderator
