Set up the Communication Between Both Devices [message #1848833]

Sun, 19 December 2021 21:16

Eclipse User

I'm following the course from https://www.eclipse.org/4diac/en_help.php?helppage=html/4diacIDE/distribute4diac.html#SetUpCommunication
Now I set up the logic completely according to the process, but the data did not circulate successfully, please check attached pic shows
I want to setup data connection, but I'm not sure where my problem is, can you please suggest if I should have any more operations.

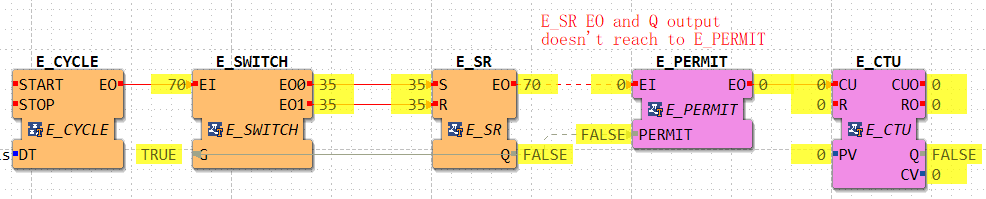

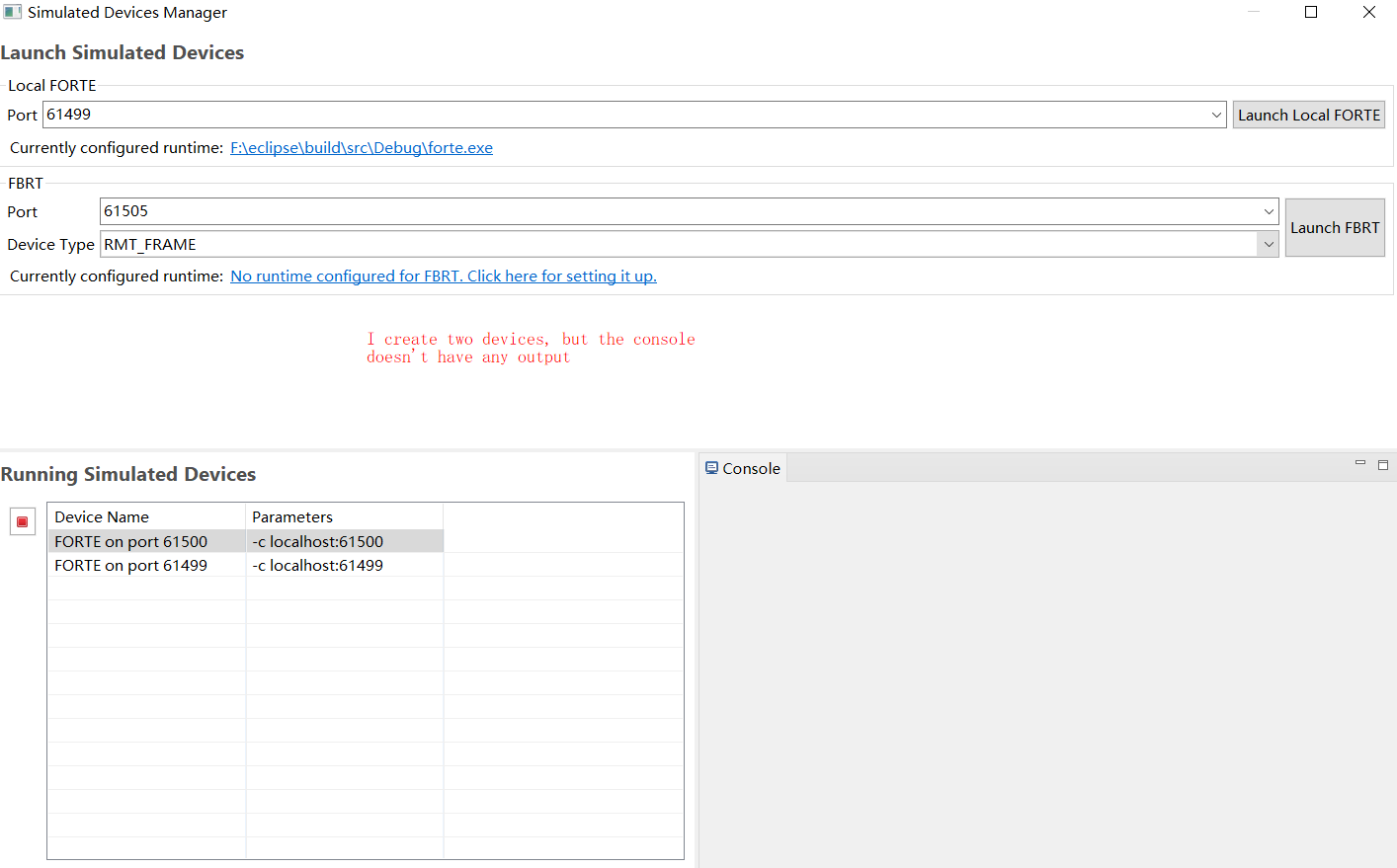

Attachment: devices manager.PNG
(Size: 33.30KB, Downloaded 173 times)
Attachment: problem.PNG
(Size: 19.41KB, Downloaded 171 times)
Attachment: mytest1.sys
(Size: 5.19KB, Downloaded 121 times)

Re: Set up the Communication Between Both Devices [message #1848840 is a reply to message #1848833]

Mon, 20 December 2021 13:58

Eclipse User

hi,
have you either manually inserted communication function blocks into your resources or created the communication function blocks with our experimental generation facility?

Unfortunately there is an issue with the console. Therefore you currently don't see any output there.

Cheers,
Alois

Re: Set up the Communication Between Both Devices [message #1848844 is a reply to message #1848840]

Mon, 20 December 2021 21:27

Eclipse User

Do you mean Publish and Subscribe node?
I add them in my logic, but I don't see data communicate between them

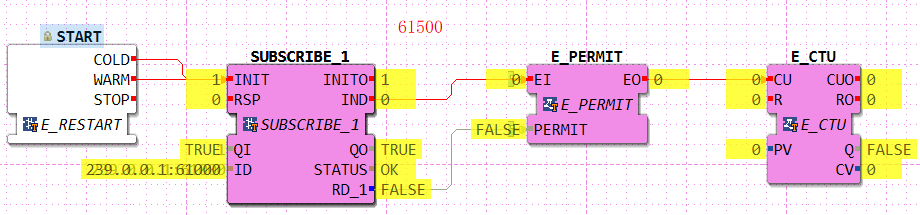

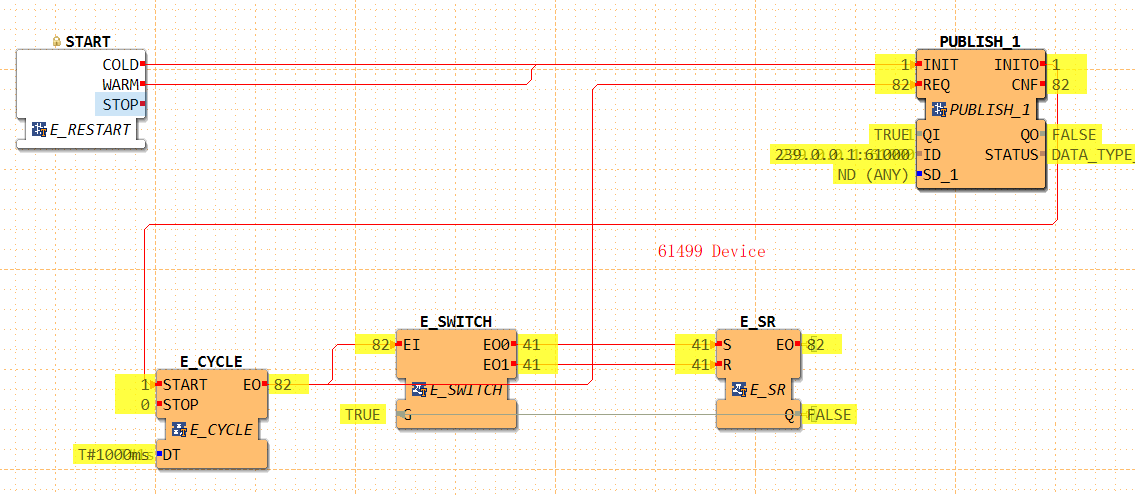

Attachment: device-1.PNG
(Size: 37.08KB, Downloaded 169 times)
Attachment: device-2.PNG
(Size: 21.48KB, Downloaded 156 times)

Re: Set up the Communication Between Both Devices [message #1848869 is a reply to message #1848844]

Tue, 21 December 2021 10:24

Eclipse User

Your publisher is missing a data connection. Therefore it reports to you a data type error as values of type any can not be send.

Please also not that you don't need to have the publish and subscribe blocks on your application it is perfectly fine to have them in the resource.

Re: Set up the Communication Between Both Devices [message #1848879 is a reply to message #1848869]

Wed, 22 December 2021 04:27

Eclipse User

Oh, I see, Now I add data connection, and it's OK now, thanks

Re: Set up the Communication Between Both Devices [message #1848882 is a reply to message #1848879]

Wed, 22 December 2021 05:02

Eclipse User

Happy to help!
