DATA_TYPE_ERROR in remote OPC UA server example [message #1841993]

Sun, 06 June 2021 15:06

Tuojian Lyu

Messages: 18
Registered: October 2020

Junior Member

Hi,

I was following the tutorial "Read and write OPC UA variables on a remote server". The PUBLISH_1 and SUBSCRIBE_1 are working well with the opc ua server.

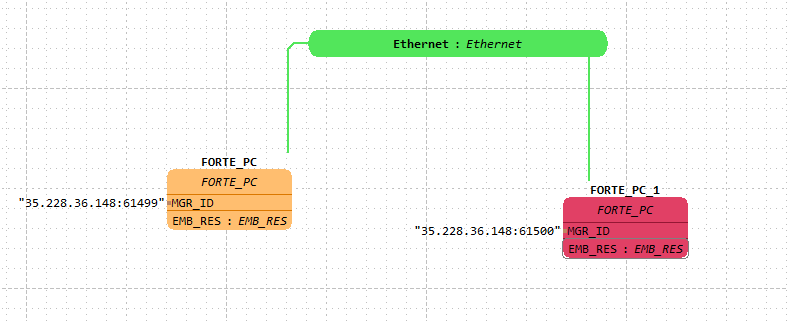

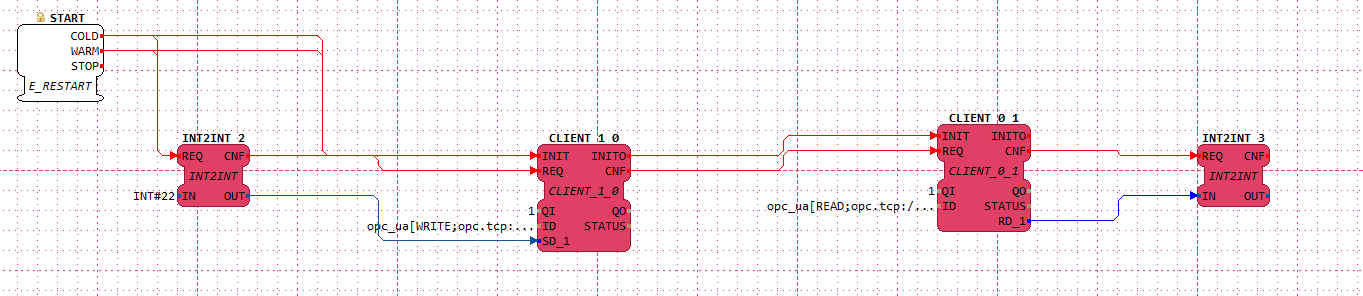

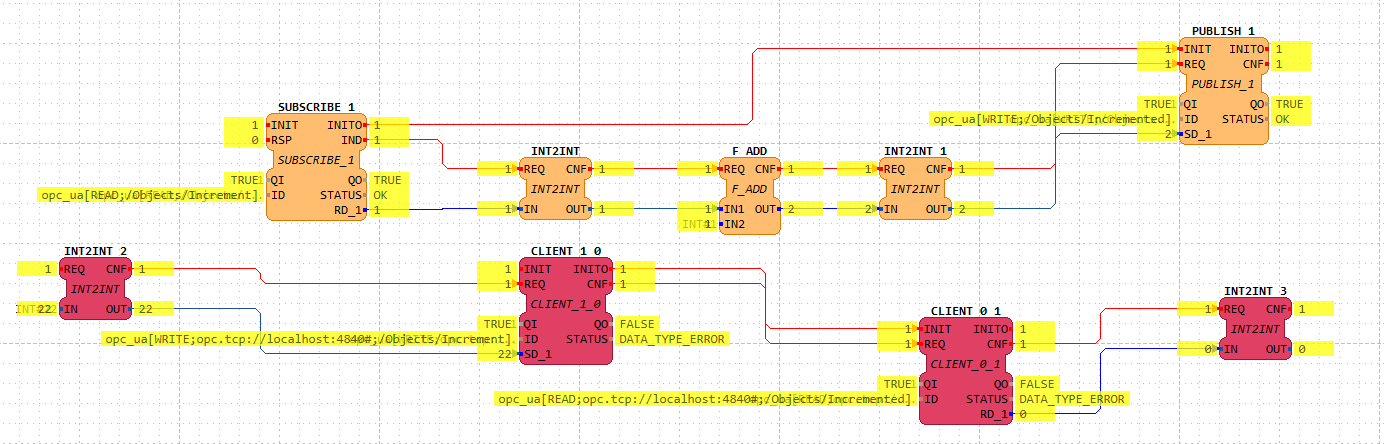

But, there is an error with the CLIENT_X_X and the error is DATA_TYPE_ERROR. The CLIENT_0_1 and CLIENT_1_0 are obtained by modifying the interfaces and names of CLIENT_1. I also checked the data type of SD_1 and it is ANY. The details of the application, devices, and resource configuration can be found via the attached images.

Specifics of the testing environment:
- two forte (with Open62541, version 1.0) instances running in the same cloud VM
- two port numbers, 61499 and 61500, are exposed from the cloud VM
- 4diac IDE version is 1.12.2

Thanks to anyone who can help me solve this issue.

Attachment: Devices.PNG
(Size: 12.52KB, Downloaded 71 times)
Attachment: Application.PNG
(Size: 50.57KB, Downloaded 68 times)

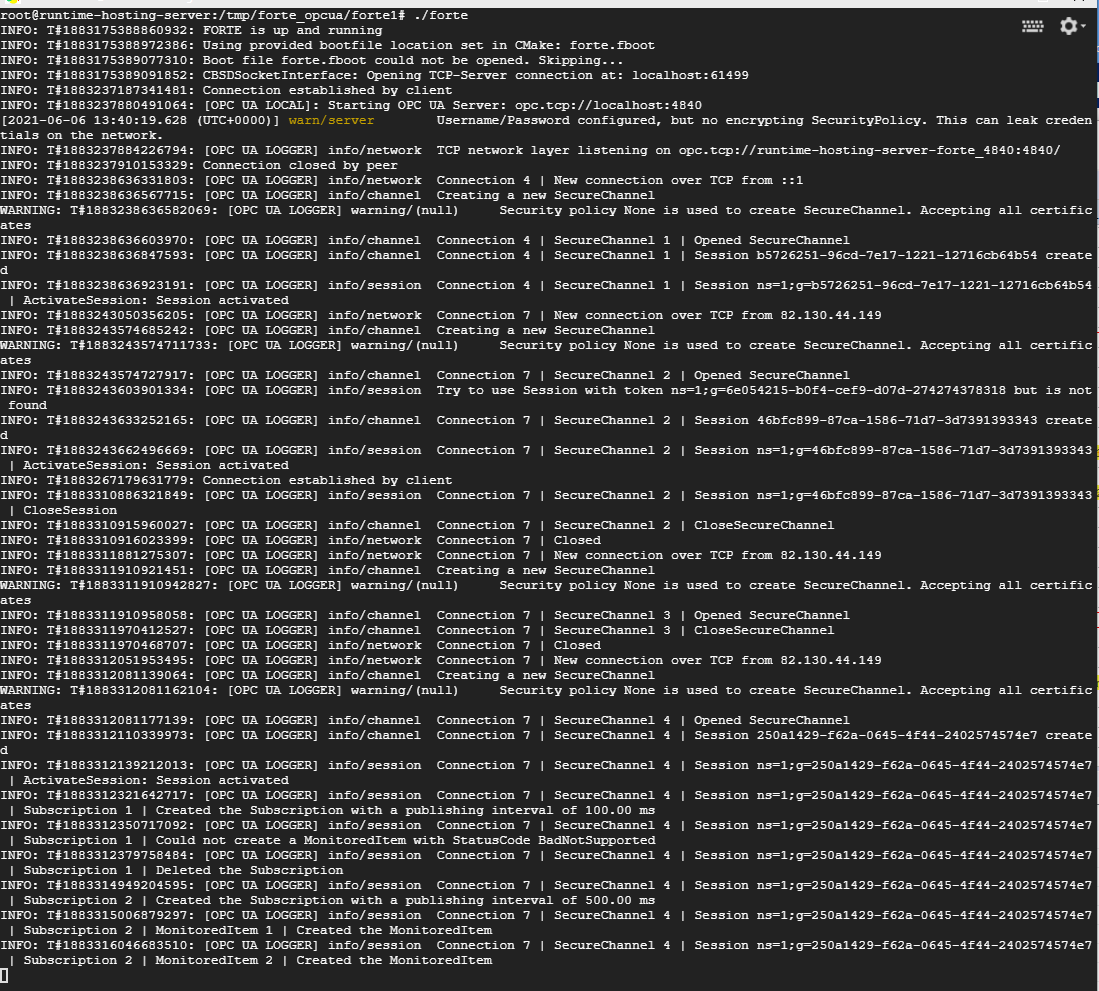

Attachment: Forte1Log.PNG
(Size: 170.51KB, Downloaded 69 times)

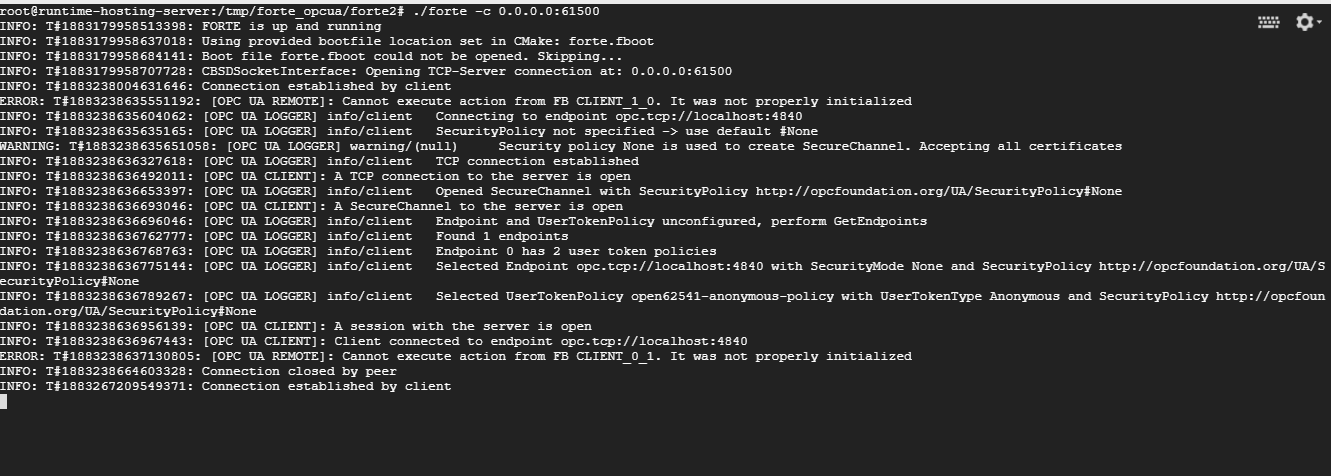

Attachment: Forte2Log.PNG
(Size: 77.50KB, Downloaded 69 times)
Attachment: Resource.PNG
(Size: 20.98KB, Downloaded 81 times)

Report message to a moderator

Re: DATA_TYPE_ERROR in remote OPC UA server example [message #1842017 is a reply to message #1841993]

Mon, 07 June 2021 10:39

Jose Maria Jesus Cabral Lassalle

Messages: 16
Registered: January 2021

Junior Member

HI,

you should initialize first your clients, and then trigger the REQ. You're triggering the INIT and REQ in parallalel, so the client is not ready when you request. Remove the E_RESTART.COLD and E_RESTART.WARM going to INT2INT_2.REQ, and connect the CLIENT_0_1.INITO to INT2INT_2.REQ. That would be the first correction. BUt the initialization of the client is done asynschronously, meaning that you get and INITO event before it acutally initialized. So my recomendation would be to put a 3 seconds delay between CLIENT_0_1.INITO and INT2INT_2.REQ.

Another better example would be to have a E_CYCLE of 1 second being started by CLIENT_0_1.INITO and adding the output of it to a counter that you then send to CLIEN_1_0. This way, the first calls might fail, but later you will see the valid results

Report message to a moderator

Re: DATA_TYPE_ERROR in remote OPC UA server example [message #1842043 is a reply to message #1842017]

Tue, 08 June 2021 07:19

Tuojian Lyu

Messages: 18
Registered: October 2020

Junior Member

Thanks, Jose. Your solution and recommendation solved my problem. It is true that the CLIENT should have some time for its initialization. Once the CLIENT initialized, it can connect to the remote OPC UA server without any error.

Another problem that I viewed is that the data type of variables should be matched otherwise there will be DATA_TYPE_ERROR in CLIENT_1_0.STATUS and BadTypeMismatch from the Forte log. An INT2INT converter is needed in my case.

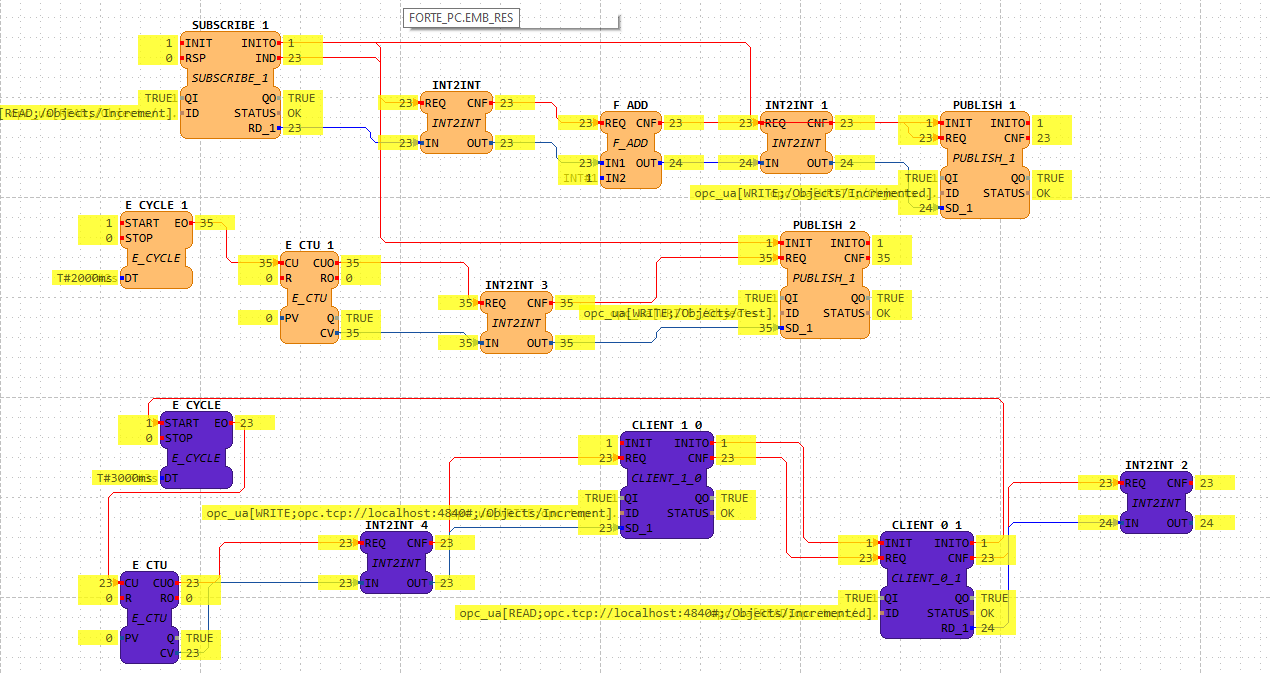

This is the working version of reading from and writing to a remote OPC UA server, just in case someone may have the same doubts as me.

index.php/fa/40592/0/

Attachment: MyExample.PNG
(Size: 77.82KB, Downloaded 232 times)

Report message to a moderator

Re: DATA_TYPE_ERROR in remote OPC UA server example [message #1842555 is a reply to message #1842043]

Wed, 23 June 2021 13:27

K Y

Messages: 7
Registered: May 2021

Junior Member
