Extending an installed diagram [message #1840653]

Wed, 21 April 2021 11:38

Faezeh Khorram

Messages: 9
Registered: June 2020

Junior Member

Hi,
I want to extend an installed diagram.
Since the extended viewpoint is not provided as a resource, I don't know how to correctly set the viewpoint URI.

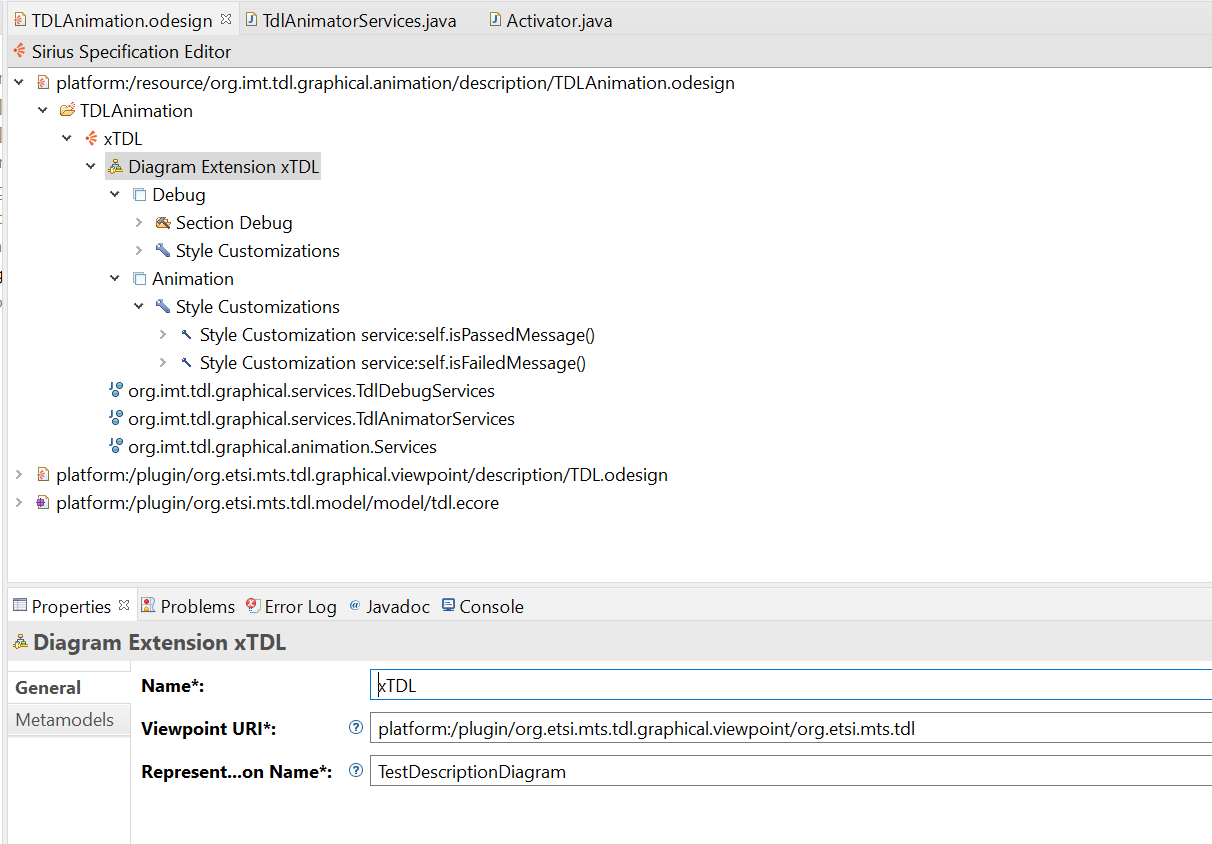

I've tried to define it as "platform:/plugin/Plugin_ID/ViewpointName" but it seems that it's not correct since my additional layers are not activated (the screenshot is attached)

thank you in advance,
Faezeh

Attachment: Capture.PNG
(Size: 53.77KB, Downloaded 22 times)

Report message to a moderator

Re: Extending an installed diagram [message #1840700 is a reply to message #1840653]

Thu, 22 April 2021 08:42

Pierre-Charles David

Messages: 646
Registered: July 2009

Senior Member

Hi.
The URI syntax to use is viewpoint:/pluginId/ViewpointName, where pluginId is the identifier of the Eclipse plug-in in which the viewpoint is defined, and ViewpointName is the name of the viewpoint.

See https://www.eclipse.org/sirius/doc/specifier/diagrams/Diagrams.html#diagram_extension for more details.

Pierre-Charles David - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator
