create a model instance from a metamodel in EMF [message #1840099]

Tue, 06 April 2021 19:29

Morteza Yaqubkhani

Messages: 5
Registered: April 2021

Junior Member

Hi.
I'm new to EMF. I've created a metamodel in eclipse, and now I want to make a model from it.
I've used this tutorial from vogella.com website.

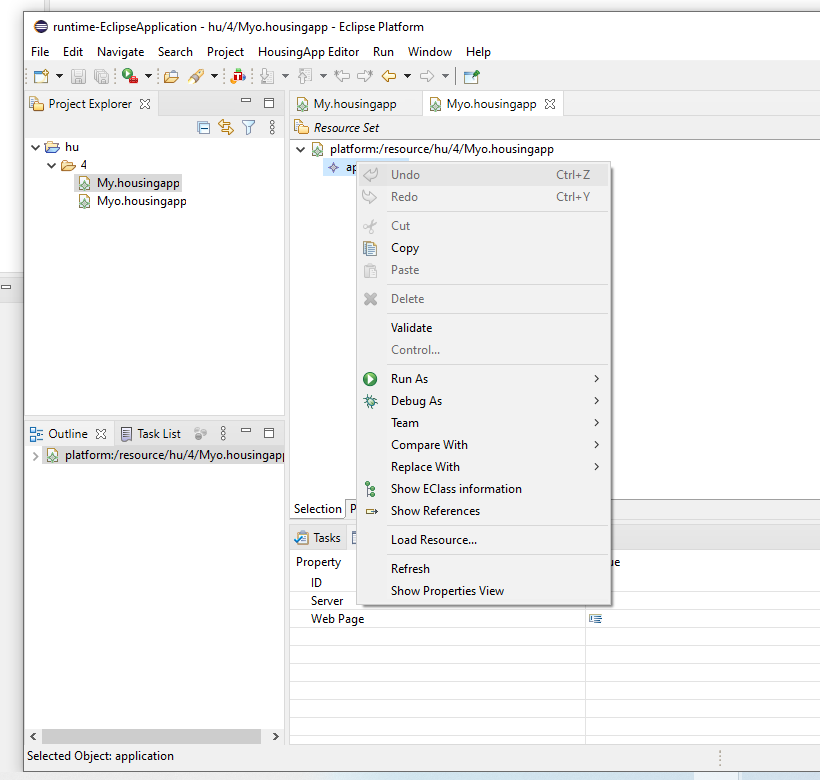

When I create the model, and I want to edit it like editing a metamodel (section 5.4. of the tutorial) by right-clicking on the model, there isn't any option in the menu for "new child."
I've tried many times, but no result. Does anyone have any idea about it?."

Thank you in advance for your guidance.
Morteza

Attachment: EFM.png
(Size: 48.43KB, Downloaded 393 times)

Report message to a moderator

Re: create a model instance from a metamodel in EMF [message #1840118 is a reply to message #1840099]

Wed, 07 April 2021 04:39

Ed Willink

Messages: 7593
Registered: July 2009

Senior Member

Hi

An Ecore metamodel has a *.ecore extension and a Create Dynamic Instance menu option.

You appear to have a model already so an instance does not make much sense.

Regards

Ed Willink

Report message to a moderator

Re: create a model instance from a metamodel in EMF [message #1840119 is a reply to message #1840118]

Wed, 07 April 2021 05:41

Ed Merks

Messages: 32818
Registered: July 2009

Senior Member

At least by default, there will only be New Child options for the containment references of the context object. I say "by default" because it's controlled by the options on the GenFeature, i.e., the structural feature wrappers in the *.genmodel that wrap each thing in your *.ecore model. Here there are options such as "Children" and "Create Child".

Ed Merks
Professional Support: https://www.macromodeling.com/

Report message to a moderator

Re: create a model instance from a metamodel in EMF [message #1840154 is a reply to message #1840119]

Wed, 07 April 2021 16:08

Morteza Yaqubkhani

Messages: 5
Registered: April 2021

Junior Member

Hi. It seems that there is a problem with EMF forms editor. Apparently, the EMF forms editor is not installed and should be installed separately.

Cheers,
Morteza

Report message to a moderator

Re: create a model instance from a metamodel in EMF [message #1840744 is a reply to message #1840154]

Fri, 23 April 2021 09:12

Morteza Yaqubkhani

Messages: 5
Registered: April 2021

Junior Member

Hi again,
Finally, I've found the reason. It is about setting containment references in the model creation phase.
You could find the issue explained here very well:
https://www.eclipse.org/forums/index.php/t/1066459/

Morteza

Report message to a moderator
