How can I hide the stereotypes in the diagrams? [message #1835200]

Fri, 27 November 2020 00:58

Manuel Malagon

Messages: 49
Registered: December 2011

Member

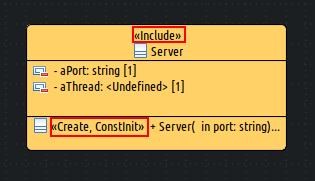

It is possible to hide the stereotype labels in the diagram?

index.php/fa/39421/0/

They occupy a lot of space and make things a little bit more cluttered and harder to see in the diagram.

Attachment: stereotypes.jpeg
(Size: 10.48KB, Downloaded 57 times)

Report message to a moderator

Re: How can I hide the stereotypes in the diagrams? [message #1835227 is a reply to message #1835200]

Fri, 27 November 2020 12:42

Christian Damus

Messages: 1237
Registered: July 2009
Location: Canada

Senior Member

Hi,

You can use a CSS stylesheet attached to your diagram, model, or project to suppress stereotype labels:

Label[type=StereotypeLabel] {
	visible: false;
}

See the wiki for more details: https://wiki.eclipse.org/MDT/Papyrus/UserGuide/CSS#Stereotype_Display

HTH,
Christian

Report message to a moderator

Re: How can I hide the stereotypes in the diagrams? [message #1835234 is a reply to message #1835227]

Fri, 27 November 2020 14:17

Manuel Malagon

Messages: 49
Registered: December 2011

Member

Awesome!!

I saw that webpage explaining styles but It's a lot of new information and I just found about papyrus. There is definitely a lot to read and take in.

Thanks for helping and thanks definitely for providing the example, I appreciate it!

Report message to a moderator
