Hi,

Is it possible in Capella to define activity diagrams with the elements from SysML activity diagrams?

That is, I need to represent an Interruptible Activity Region. How can I do the same diagram with Capella.

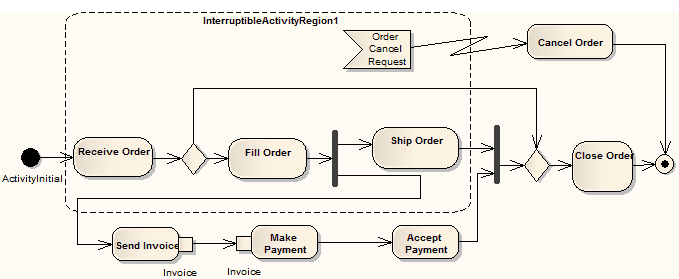

*Attached an example modeled with another tool for reference only.
Re: SysML activity diagram [message #1834298 is a reply to message #1834290] Fri, 06 November 2020 16:27 Go to previous messageGo to next message
Navas Juan is currently offline Navas JuanFriend
Messages: 49
Registered: January 2020
Member
Hello,

You may want to read this page about Capella and SysML: https://www.eclipse.org/capella/arcadia_capella_sysml_tool.html

You can reproduce somehow the activity diagrams in Capella. But the SysML language is not implemented by Capella. Hence, constructions such as interruptible activity regions are not implemented neither.

However, the intended behaviour can be represented using other means. For instance, using Modes States Machines, specifying the functions that are enabled on each mode and the exchanges that trigger a transition to another mode.

Hope this helps.
Re: SysML activity diagram [message #1834302 is a reply to message #1834298] Fri, 06 November 2020 16:59 Go to previous messageGo to next message
Missing name Mising name is currently offline Missing name Mising nameFriend
Messages: 14
Registered: November 2020
Junior Member
Thank you Juan for the link.

Modes and states are not enough to capture an interruption.
Not possible to model an interruption on Capella?
Re: SysML activity diagram [message #1834774 is a reply to message #1834302] Tue, 17 November 2020 16:30 Go to previous message
Pascal Roques is currently offline Pascal RoquesFriend
Messages: 7
Registered: February 2020
Location: Toulouse
Junior Member

There is no "execution" semantics in Capella DFD, and by the way no "Activity start" and "Activity end" ... So you cannot interrupt something which has not started! ;-)
It is somehow different from UML2/SysML activity diagrams, as explained in the Capella web page.

To sum up: Capella IS NOT a SysML tool, even if you can mimic a lot of SysML diagrams with it...


All models are wrong, but some are useful! (G. Box)
