Home » Eclipse Projects » 4DIAC - Framework for Distributed Industrial Automation and Control » Identifying function blocks individually within the code
Identifying function blocks individually within the code [message #1834018] Fri, 30 October 2020 10:09 Go to next message
Shobhit Mishra is currently offline Shobhit MishraFriend
Messages: 7
Registered: September 2020
Junior Member
Hi,
I am using a simple blink example with a redundant application. I wish to send a stream on each individual FB and wished to see if there was a way to identify them through the code. for example, I want to check if the FB is E_SWITCH then perform some task, and then check if the FB is E_SWITCH_1 and then perform something else. Is there a way to do so?

[Updated on: Fri, 30 October 2020 11:56]

Report message to a moderator

Re: Identifying function blocks individually within the code [message #1834036 is a reply to message #1834018] Fri, 30 October 2020 14:50 Go to previous messageGo to next message
Alois Zoitl is currently offline Alois ZoitlFriend
Messages: 1211
Registered: January 2014
Senior Member
hi,

can you please expand a bit on what you mean with sending a stream on each individual FB?

Regarding the identification of individual FBs: In 4diac FORTE each FB type is a class and each FB instance will be an instance of this class. In the C++ code you can access the instance name of the FB and us that for identification.

If you would like to get event streams a hook can be the code in the CFunctionblock base class where input events are received and outputevents are sent.

I hope this is in the direction that you asked.

BR,
Alois

Report message to a moderator

Re: Identifying function blocks individually within the code [message #1834038 is a reply to message #1834036] Fri, 30 October 2020 15:25 Go to previous messageGo to next message
Shobhit Mishra is currently offline Shobhit MishraFriend
Messages: 7
Registered: September 2020
Junior Member

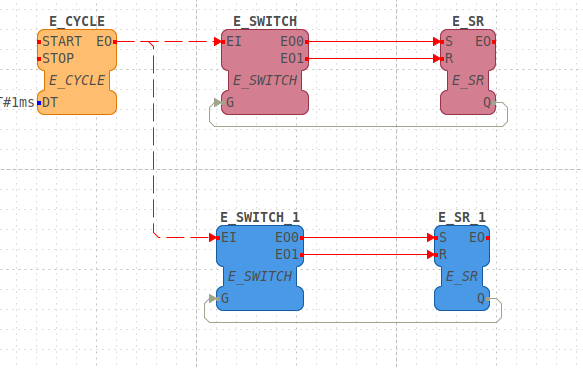

Like in the attached image the E_CYCLE is sending out Events to both E_SWITCH and E_SWITCH_1. since they are sent as multicast, as soon as the ReceiveFromUDP function is called my custom function gets called for both the SWITCHES, What I would like to do is check if it is E_SWITCH then call the custom function and similarly for E_SWITCH_1.

VG,
Shobhit

[Updated on: Fri, 30 October 2020 15:28]

Report message to a moderator

Re: Identifying function blocks individually within the code [message #1834042 is a reply to message #1834038] Fri, 30 October 2020 19:31 Go to previous messageGo to next message
Alois Zoitl is currently offline Alois ZoitlFriend
Messages: 1211
Registered: January 2014
Senior Member
Ah thanks for the clarification. IEC 61499 states that FBs are encapsulated and they will behave the same independent to whom they are connected. Given your setup I think it would make more sense to have a dedicated configuration parameter as part of your receiving layer (I think it is also better to not modify our udp receiving code but have a dedicated layer on top which handles that, I remember Mario de Sousa had a nice paper on that topic). Or if that is not what you want better check on resource or devices. Although I think the first option is better configureable by the user.

Report message to a moderator

Re: Identifying function blocks individually within the code [message #1834444 is a reply to message #1834036] Tue, 10 November 2020 13:21 Go to previous messageGo to next message
Shobhit Mishra is currently offline Shobhit MishraFriend
Messages: 7
Registered: September 2020
Junior Member
Can you please point in the direction to get the FB names, I have been trying a few things but seemingly cannot fetch the FB names in the BSDSocketinterface.cpp file as intended.

Report message to a moderator

Re: Identifying function blocks individually within the code [message #1834452 is a reply to message #1834444] Tue, 10 November 2020 14:47 Go to previous message
Alois Zoitl is currently offline Alois ZoitlFriend
Messages: 1211
Registered: January 2014
Senior Member
You should definitly change BSDSocketinterface.cpp for this task. Please create an additional layer. And I still think you should give the information as parameter to your layer and not search for FB instance names in the runtime.

Report message to a moderator
