Validate diagram button [message #1832376]

Thu, 17 September 2020 06:04

Eclipse User

Hello,

I was working on a diagram and accidentally clicked on the validate diagram button in the contextual menu after right clicking on a diagram.

Warning icons appeared on all my components who had issues.
I can't make them disappear from this diagram.
Most of the issues are warning me that the element isn't represented in physical architecture but I am well aware of that.

I have tried shutting the diagram down, shutting Capella down but the icons are still there.

Is there a way to make them disappear?

Re: Validate diagram button [message #1832388 is a reply to message #1832376]

Thu, 17 September 2020 07:29

Eclipse User

A solution I have found if someone has the same problem :
Clone the entire diagram, the warnings do not appear on the new one.

Re: Validate diagram button [message #1832398 is a reply to message #1832388]

Thu, 17 September 2020 08:13

Eclipse User

Hi Luc,

Just to check.

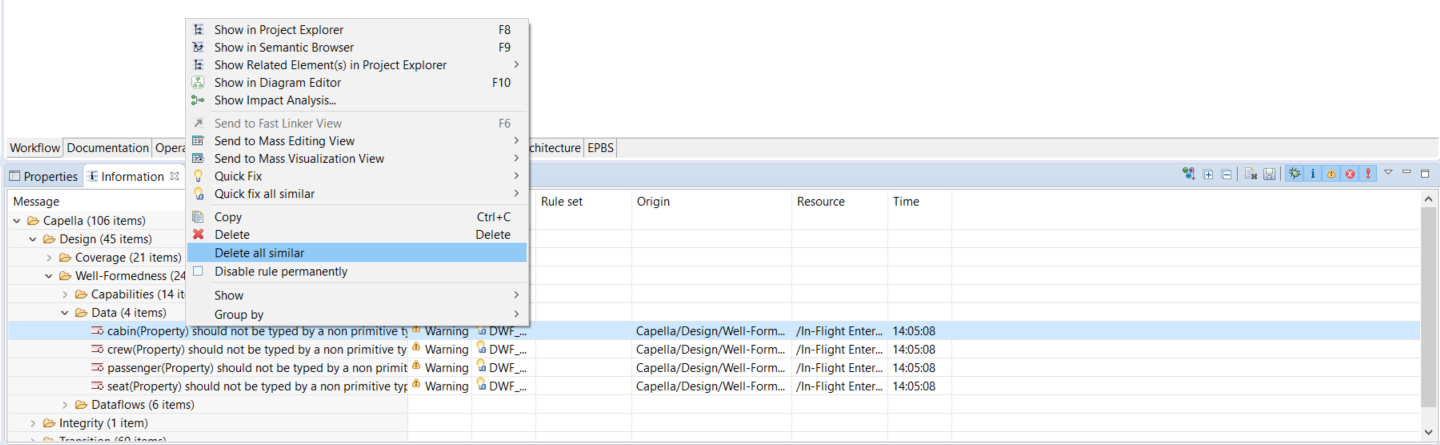

Have you tried using the information view (Window->Show View->Information)?
index.php/fa/38923/0/

Attachment: information_2.png
(Size: 139.69KB, Downloaded 363 times)

Re: Validate diagram button [message #1832461 is a reply to message #1832376]

Fri, 18 September 2020 07:57

Eclipse User

Hi,

No I had not tried to use this tool. I thought it would fully delete the message not allowing me to see it when needed.

Thank you for your advice

Re: Validate diagram button [message #1859908 is a reply to message #1832376]

Tue, 04 July 2023 23:01

Eclipse User

AI Spam removed

[Updated on: Wed, 04 October 2023 09:25] by Moderator
