Exchange Context within Functional Chains [message #1830610]

Wed, 29 July 2020 14:06

Eclipse User

Although there is a field for Exchange Contexts within Functional Chain Involvement Links, there is no mechanism for displaying the Exchange Context in the Functional Chain Diagram.

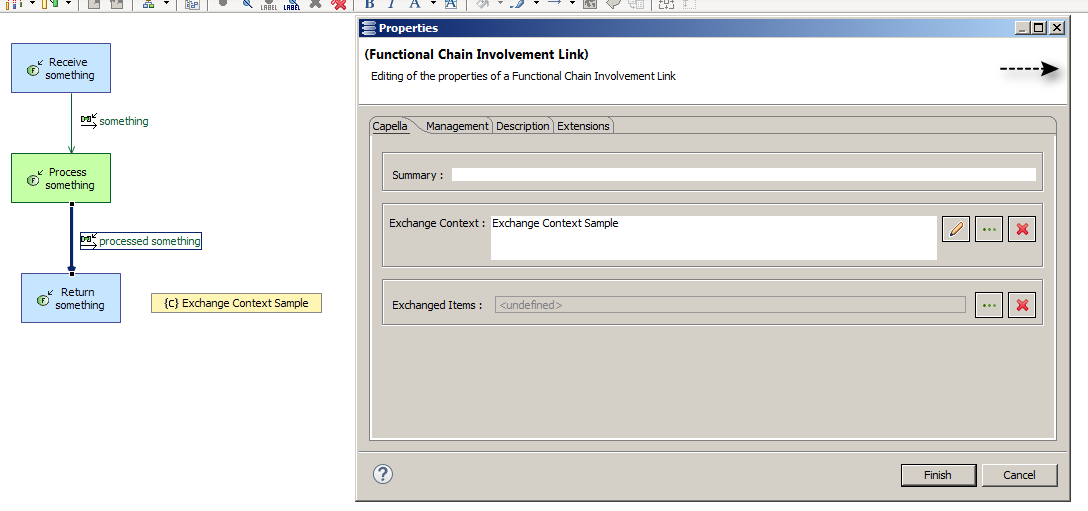

In the example below I created a dummy Functional Chain and added an Exchange Context named "Exchange Context Sample".

I then used the "Constraints" accelerator to bring the generated constraint to the diagram. (in the scenarios there is a dedicated Exchange Context accelerator for this).

The displayed constraint does not display the light yellow link which links Exchange Contexts to Interactions in scenarios.

Is this intended? Or should I open a bug report in the bugzilla?

(I understand there is a workaround by using a ContraintElement relationship to point the constraint to the Functional Exchange Involvement Link which I am already using. I just wanted to know if a bug should be reported)

index.php/fa/38684/0/

Obs.; I'm using Capella 1.4.0

Attachment: 2020-07-29 14_45_58-workspace - platform__resource_subteste_subteste.aird_[SFCD] FunctionalChain 1 -.png
(Size: 28.07KB, Downloaded 483 times)

[Updated on: Wed, 29 July 2020 14:07] by Moderator

Re: Exchange Context within Functional Chains [message #1830611 is a reply to message #1830610]

Wed, 29 July 2020 14:26

Eclipse User

Hi Fabio,

To me, it would make sense that when you create a constraint directly from a model element from the Exchange Context field, then the link "ConstraintElement" is automatically created (and then displayed in the diagram when you decide to display the constraint. But I may be wrong.

Stephane
