Home » Eclipse Projects » Sirius » Edge Appearance(How to set edge Appearance in .odesign file or in program code?)
Edge Appearance [message #1828506] Thu, 11 June 2020 07:11 Go to next message
heng liu is currently offline heng liuFriend
Messages: 3
Registered: June 2020
Junior Member
index.php/fa/38313/0/Hi,
when i run sirius based Eclipse RCP product,i found when click the edge ,the Apperearance tab page will apprear,it can set the edge Appearance one by one , so i want to set the edge Appearance in .odesign file or in program code to make layout more confortable, how to ?

Many thanks
hengliu
index.php/fa/38313/0/

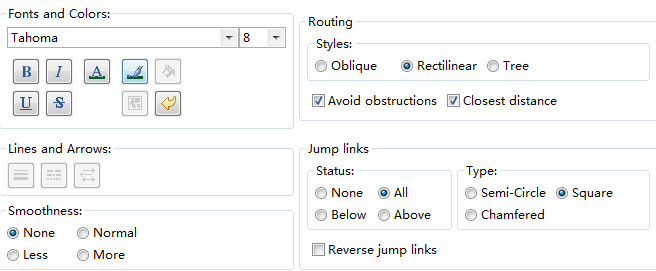

  • Attachment: 1.PNG
    (Size: 17.39KB, Downloaded 267 times)
Re: Edge Appearance [message #1828534 is a reply to message #1828506] Thu, 11 June 2020 13:26 Go to previous messageGo to next message
Maxime Porhel is currently offline Maxime PorhelFriend
Messages: 496
Registered: July 2009
Location: Nantes, France
Senior Member
Hi Heng Liu,

You should be able to customize some of those properties from properties of the Edge mapping and styles elements in the odesign : https://www.eclipse.org/sirius/doc/specifier/diagrams/Diagrams.html#edges_styles


Regards,


Maxime Porhel - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Join the Sirius community at SiriusCon. Register for free: Nov. 9th Paris
http://www.siriuscon.org/
Re: Edge Appearance [message #1828535 is a reply to message #1828534] Thu, 11 June 2020 13:26 Go to previous message
Maxime Porhel is currently offline Maxime PorhelFriend
Messages: 496
Registered: July 2009
Location: Nantes, France
Senior Member
No Message Body

Maxime Porhel - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Join the Sirius community at SiriusCon. Register for free: Nov. 9th Paris
http://www.siriuscon.org/
