Home » Modeling » Papyrus » How to add part and reference to bdd(How to add part and reference to bdd Papyrus Sysml)
How to add part and reference to bdd [message #1828389] Tue, 09 June 2020 05:57 Go to next message
Guillermo Mosquera Canchingre is currently offline Guillermo Mosquera CanchingreFriend
Messages: 4
Registered: June 2020
Junior Member
I would like to know how can I add a part to a block in a bdd while modeling in Papyrus Sysml 1.4.

I'm using Eclipse Modeling Tools

Version: Oxygen.3a Release (4.7.3a)
Build id: 20180405-1200

Can someone help me?
Re: How to add part and reference to bdd [message #1828421 is a reply to message #1828389] Tue, 09 June 2020 13:45 Go to previous messageGo to next message
jb tw is currently offline jb twFriend
Messages: 26
Registered: December 2019
Junior Member
I can only give you part of the answer. I never did it visual the way you do...

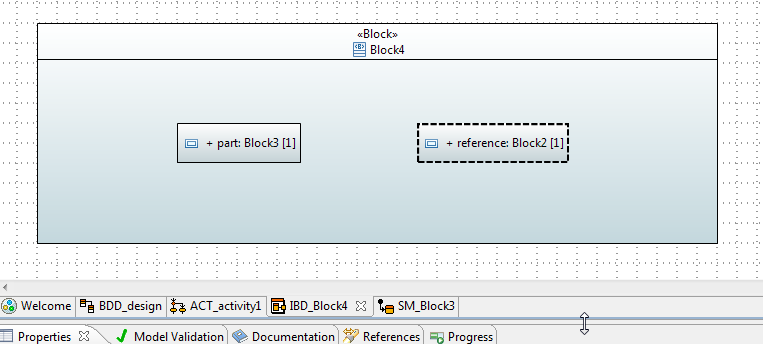

I create them in two ways: via the IDB
index.php/fa/38292/0/

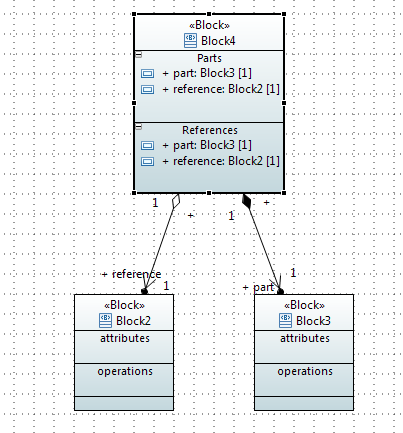

OR via different type of associations
index.php/fa/38293/0/

The resulting question why both blocks are showed in both part AND Reference I have no idea!

[Updated on: Tue, 09 June 2020 13:53]

Report message to a moderator

Re: How to add part and reference to bdd [message #1828428 is a reply to message #1828421] Tue, 09 June 2020 14:19 Go to previous messageGo to next message
Guillermo Mosquera Canchingre is currently offline Guillermo Mosquera CanchingreFriend
Messages: 4
Registered: June 2020
Junior Member
index.php/fa/38297/0/index.php/fa/38296/0/index.php/fa/38295/0/Hello,

Thank you very much for your fast reply.

I want to show the parts exactly the way you do it in your image "Parts_refs_BDD.png"

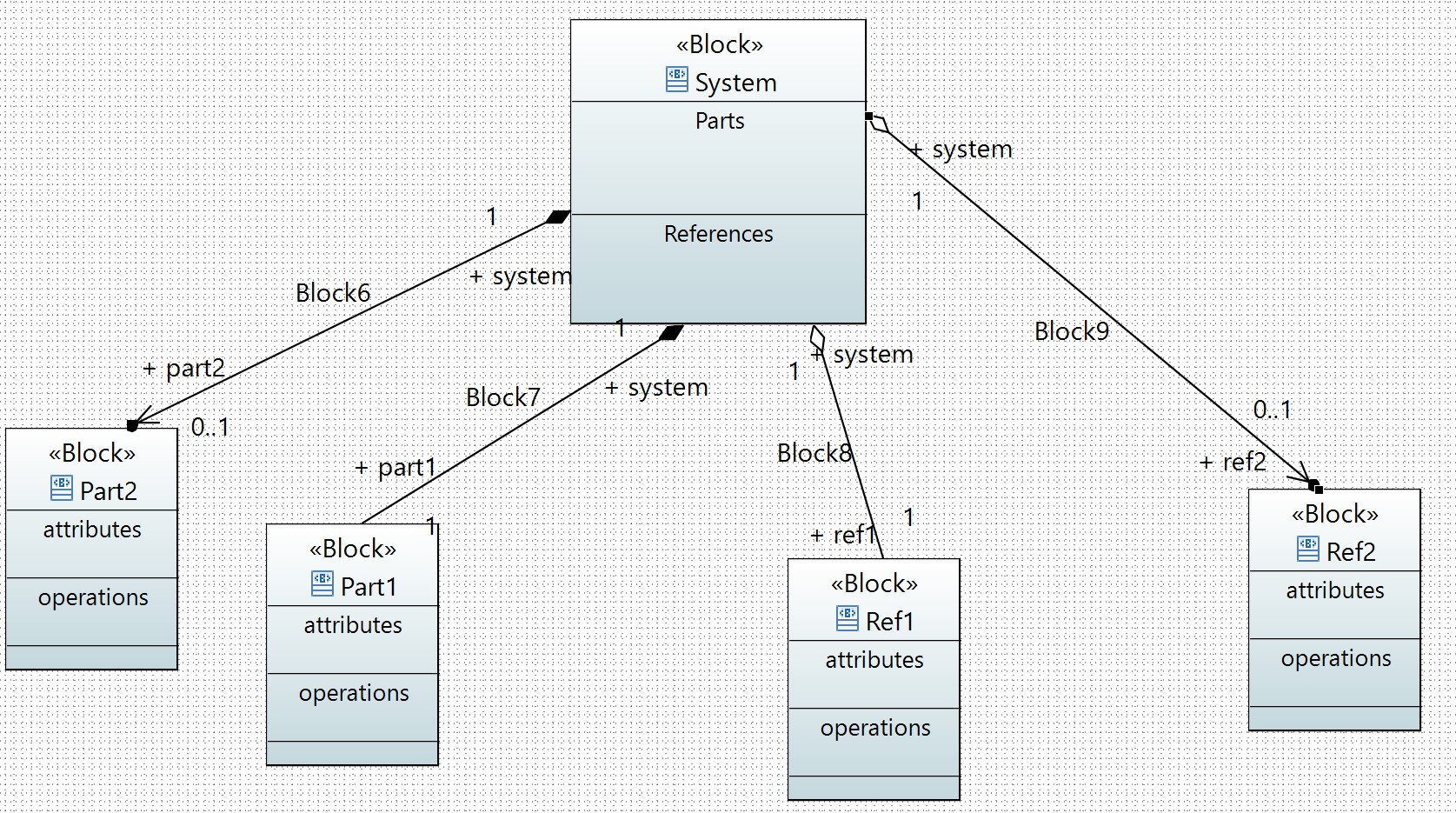

Look here. I tried different associations but the non of them make my parts and ref appear in the system block.
index.php/fa/38295/0/

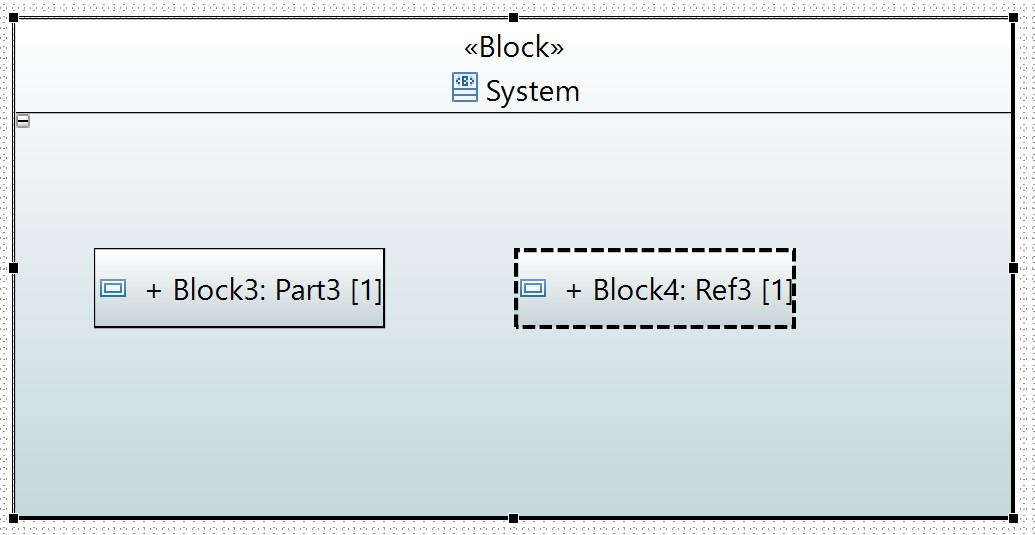

I even tried using ibd.
index.php/fa/38296/0/

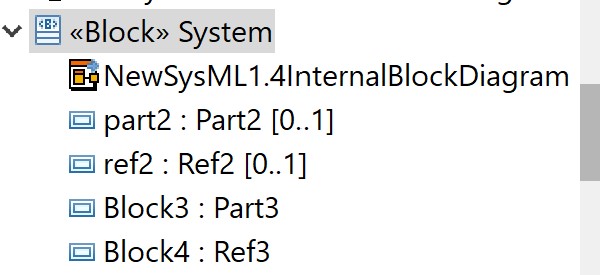

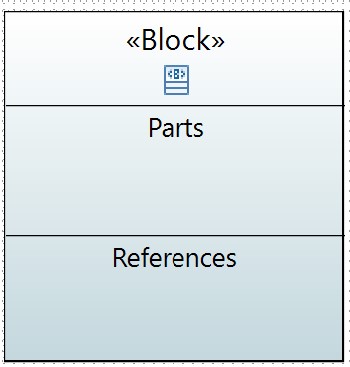

They are shown in the model browser but they don't show up in the system block.
index.php/fa/38297/0/

I don't know what I'm missing. Could you help me, please?
Re: How to add part and reference to bdd [message #1828433 is a reply to message #1828428] Tue, 09 June 2020 14:49 Go to previous messageGo to next message
jb tw is currently offline jb twFriend
Messages: 26
Registered: December 2019
Junior Member
Select block and press F4 (or press on the ghost like symbol and select Show/ Hide content) and switch all on

[Updated on: Tue, 09 June 2020 14:50]

Report message to a moderator

Re: How to add part and reference to bdd [message #1828437 is a reply to message #1828433] Tue, 09 June 2020 15:22 Go to previous message
Guillermo Mosquera Canchingre is currently offline Guillermo Mosquera CanchingreFriend
Messages: 4
Registered: June 2020
Junior Member

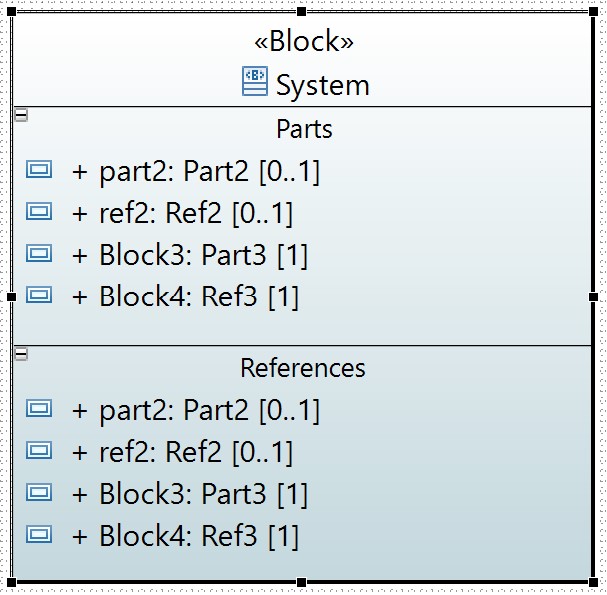

Thank you very much. Now, I can see all the elements.

Problem solved.

index.php/fa/38298/0/

In previus versions this was shown by default.
