Operational Role diagram ( Operational Analysis ) [message #1828069]

Sun, 31 May 2020 11:26

Eclipse User

hello team,
can someone share with us the Purpose or documentation relaeted to "operational role diagram" .
thanks.

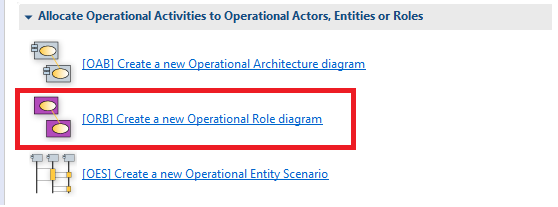

Attachment: Operational Role.png
(Size: 12.92KB, Downloaded 119 times)

Re: Operational Role diagram ( Operational Analysis ) [message #1828084 is a reply to message #1828069]

Mon, 01 June 2020 01:48

Eclipse User

Hello,
From the Glossary: An Operational Role is a set of coherent Operational Activities that can be realized by one or more Operational Entities or Actors, and should be considered as a whole. It is a mean to structure these Activities, and to share them between several Operational Entities or Actors.
The Operational Role diagram shows Roles and the Operational Activities and Interactions associated to them. They do not show Entities: what is highlighted is the dependencies and interactions between roles, independently of "who" is in charge of a role.
Hope it helps,
