Home » Polarsys » Capella Studio » Activity explorer page content doesn't show up
Activity explorer page content doesn't show up [message #1826883] Mon, 04 May 2020 01:11
Soulimane KAMNI is currently offline Soulimane KAMNIFriend
Messages: 20
Registered: February 2020
Junior Member
Hi,

Since adding a page to capella activity explorer using the vpdsl didn't work for me, I decided to follow the tutorial which is accessible via the following link: https://wiki.eclipse.org/images/6/66/Activity_Explorer-1.0.0.pdf

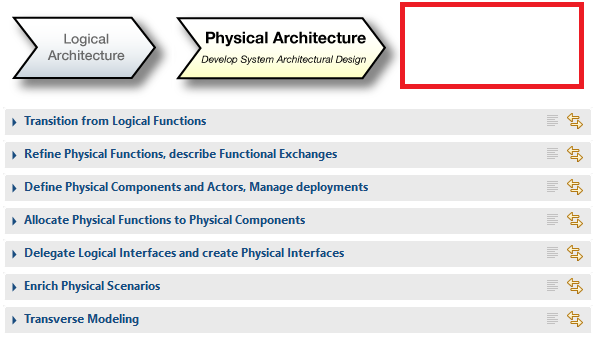

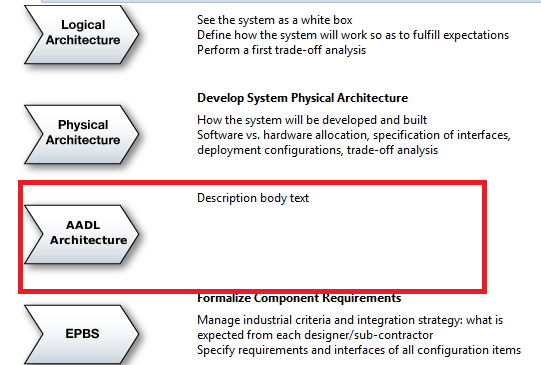

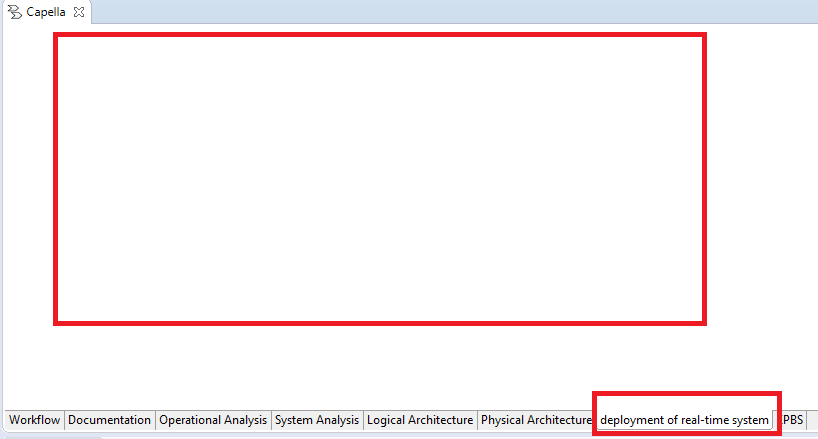

The problem is that when I click on the page icon in the workflow view I get a blank page rather than the page content (section and activities, in addition to previous and next pages). (see screenshots)

index.php/fa/38031/0/

index.php/fa/38032/0/

index.php/fa/38033/0/

Can anyone explain this behavior please?
