Change in Transition of Logical Components to Physical Architecture v1.3.1 vs v1.4.0 [message #1826850] Sat, 02 May 2020 15:09 Go to next message
Fábio Guarita is currently offline Fábio GuaritaFriend
Messages: 64
Registered: December 2019
Member
Hi, I just noticed there was a change in the way Capella performs the 2 transitions below from version 1.3.1 to 1.4.0:

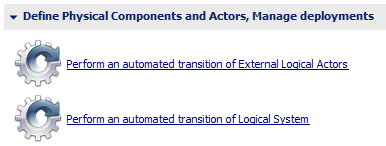

index.php/fa/38022/0/

In version 1.3.1 it transitions:
Logical Components > Physical Components (the blue ones which are called "Behavior PCs" in the toolbox)

In version 1.4.0 it transitions:
Logical Components > Physical Nodes (the yellow ones which are "Node PCs" in the toolbox)

Something similar happens to Logical Actors.

I'd like to know if it is possible to perform the transition from Logical Architecture to Physical Architecture in version 1.4.0 as it happened in version 1.3.1 which is by creating Physical Behavior Components (the blue guys) and not Physical nodes (the yellow ones) for each Logical component. (I mean, using a transition mechanism with the diff/merge window).

Thanks for any help on this subject!
Re: Change in Transition of Logical Components to Physical Architecture v1.3.1 vs v1.4.0 [message #1826853 is a reply to message #1826850] Sat, 02 May 2020 16:11 Go to previous messageGo to next message
Stephane LACRAMPE is currently offline Stephane LACRAMPEFriend
Messages: 197
Registered: July 2009
Senior Member
Hi Fabio,
I am not answering your question but it may be interesting you have a look at the "What's new in Capella 1.4" webinar if you did not already, it explains some of the changes that happened on Phyisical Components / Actors https://www.youtube.com/watch?v=AhRpOjfyPbk


Stephane LACRAMPE
Obeo Canada
Re: Change in Transition of Logical Components to Physical Architecture v1.3.1 vs v1.4.0 [message #1826855 is a reply to message #1826853] Sat, 02 May 2020 17:05 Go to previous messageGo to next message
Fábio Guarita is currently offline Fábio GuaritaFriend
Messages: 64
Registered: December 2019
Member
Hi Stephane, I was writing you when I saw this response :)

I've seen the changes in the MetaModel in the What's New video which I thought were very good and are actually a reason why I am using v1.4.0 for my tests. I didn't see any addressing of this exact topic in the video (although I understand the changes in the MetaModel may have caused the change of the automation which led to the behavior specified above).

What I am struggling with in this new version is with the fact that the elements in the Physical Architecture that I think are best representatives of the Logical Components from the LA perspective are the Physical BCs and not the Physical Nodes. (And I think Physical BCs would be a better starting point to transition structural elements from LA to PA)

Also, the automated transition transitions the Component Ports from the LA to Component Ports in the Physical Nodes which are not really meaningful to me. The exchanges are also transitioned as Component Exchanges. The way things were done in this automated transition in previous versions seemed more correct methodologically.
Re: Change in Transition of Logical Components to Physical Architecture v1.3.1 vs v1.4.0 [message #1826856 is a reply to message #1826855] Sat, 02 May 2020 18:32 Go to previous messageGo to next message
Stephane LACRAMPE is currently offline Stephane LACRAMPEFriend
Messages: 197
Registered: July 2009
Senior Member
Yes let's wait for somebody from the Capella team to answer your question. I know there are a couple of issues with the transitions in 1.4.0 that are going to be fixed for 1.4.1.
Stephane


Stephane LACRAMPE
Obeo Canada
Re: Change in Transition of Logical Components to Physical Architecture v1.3.1 vs v1.4.0 [message #1826859 is a reply to message #1826856] Sat, 02 May 2020 20:35 Go to previous messageGo to next message
Fábio Guarita is currently offline Fábio GuaritaFriend
Messages: 64
Registered: December 2019
Member
I just found this bug report:

"Bug 561178 - Transition LC to PC: A logical component (isActor = false) shall be transitioned with a BEHAVIOR nature"

https://bugs.eclipse.org/bugs/show_bug.cgi?id=561178

It seems the behavior I described above is a bug and was already being tracked by the team and should be available at version 1.4.1 :D

Great to know! I'll keep using version 1.4.0 and convert to 1.4.1 as soon as it is available.
Re: Change in Transition of Logical Components to Physical Architecture v1.3.1 vs v1.4.0 [message #1826890 is a reply to message #1826859] Mon, 04 May 2020 06:32 Go to previous message
Navas Juan is currently offline Navas JuanFriend
Messages: 39
Registered: January 2020
Member
Hello
Indeed, there is a work in progress on this subject
Meanwhile you can check this post for turnarounds : https://www.eclipse.org/forums/index.php/t/1103462/
Hope it helps

[Updated on: Mon, 04 May 2020 06:33]
