OAIB Issue [message #1826470]

Sat, 25 April 2020 12:29

Marius Tillmann

Messages: 4
Registered: April 2020

Junior Member

Hello all!
I started my first MBSE project with Capella. I´m currently in the Operational Analysis phase. I´m at the point where I want to create my OAIB diagram which is helpful for the definition of operational processes.

I wanted to insert the operational activities via the transfer dialog. Unfortunately the software shows not all OAs in the window. What is wrong here? Some links missing? In case I make drag&drop from model tree everything works fine.

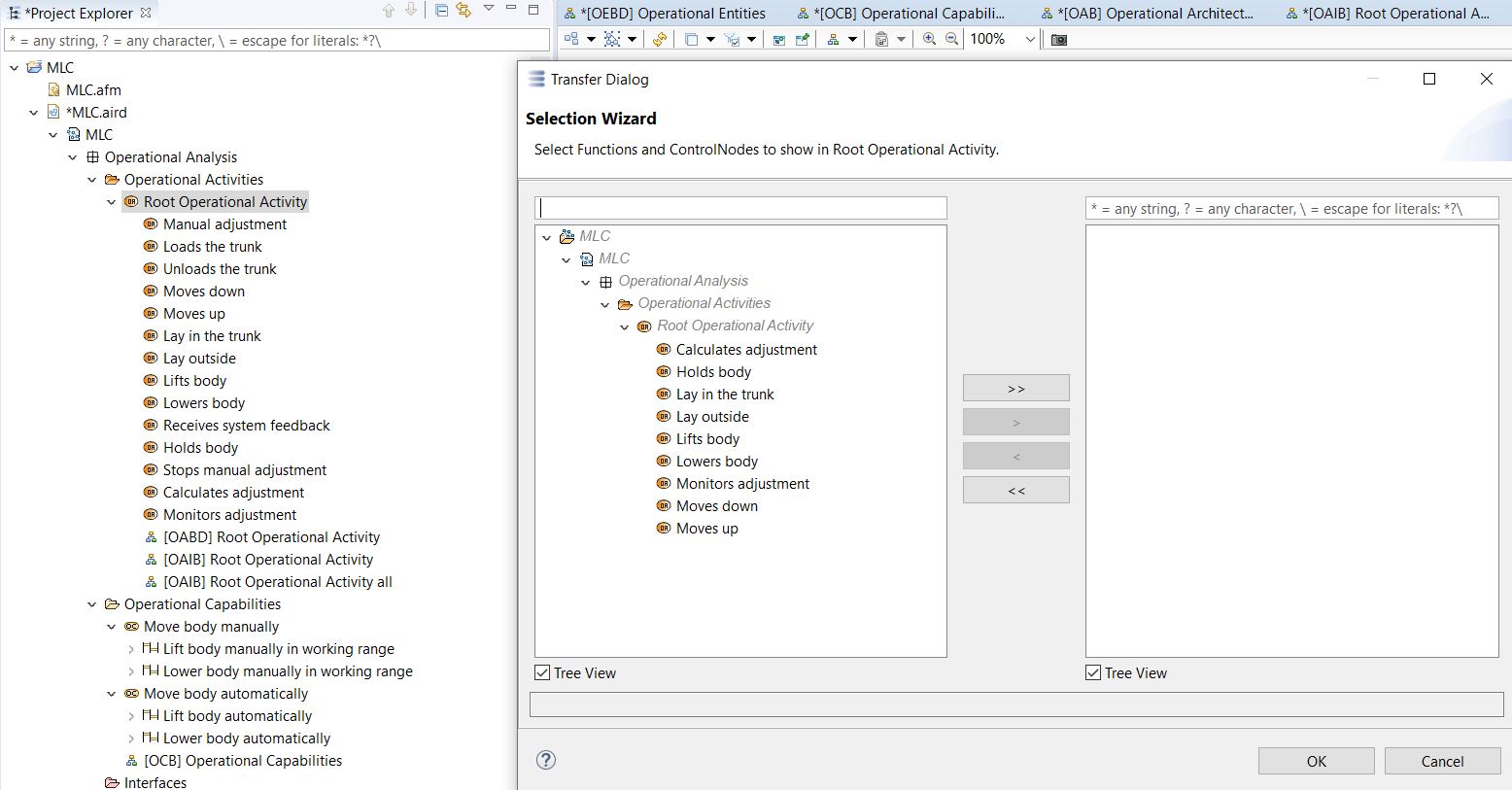

Attached please find a picture of the issue.

Thanks in advance for your help!

Attachment: OAIB_Issue.JPG
(Size: 150.99KB, Downloaded 95 times)

Report message to a moderator

Re: OAIB Issue [message #1826476 is a reply to message #1826470]

Sat, 25 April 2020 15:35

Navas Juan

Messages: 49
Registered: January 2020

Member

Hello
I'm guessing that the "transfer" dialog you are talking about is in fact the tool in the Palette of OAIB diagrams called Operational Activities?
If it is the case, I wasn't able to reproduce your issue, it works fine in my Capella 1.4.

Report message to a moderator

Re: OAIB Issue [message #1826483 is a reply to message #1826476]

Sat, 25 April 2020 16:55

Stephane LACRAMPE

Messages: 217
Registered: July 2009

Senior Member

Juan,

I am reproducing it with Capella 1.4.0 on my end. I created a new OAIB diagram at the Operational Activities root of the IFE example, and when trying to insert them, only a subset is showing.
I did the same on Capella 1.3.1 and they all showed up.

Stephane

Stephane LACRAMPE
Obeo Canada

Report message to a moderator

Re: OAIB Issue [message #1826494 is a reply to message #1826483]

Sat, 25 April 2020 21:49

Marius Tillmann

Messages: 4
Registered: April 2020

Junior Member

Hi Stephane,
thanks for your response. Does it mean this issue is linked to Vers. 1.4.0? Or in other words: I did not make a miste? :-)

Regards,
Marius

Report message to a moderator

Re: OAIB Issue [message #1826498 is a reply to message #1826494]

Sat, 25 April 2020 22:26

Stephane LACRAMPE

Messages: 217
Registered: July 2009

Senior Member

Hi Marius,

Well, I am not 100% sure as Juan said it was working for him, but either I am doing something wrong, either it is an issue with version 1.4.0.
You can try with version 1.3.1 on your end and check if it is working.

Stephane

Stephane LACRAMPE
Obeo Canada
