LC to PC transition problems [message #1826256] Wed, 22 April 2020 05:10 Go to next message
Eclipse UserFriend
Hello,

I have encountered a small but annoying problem during my project.
As you know, you can do transitions between the big steps of your Capella project.
Everything goes well except between logical architecture ans physical : when I want to make a Physical Component (PC) from a Logical Component (LC), the LC automatically becomes a Node PC. I would like it to be a Behavior PC but I cannot change the nature of the PC.

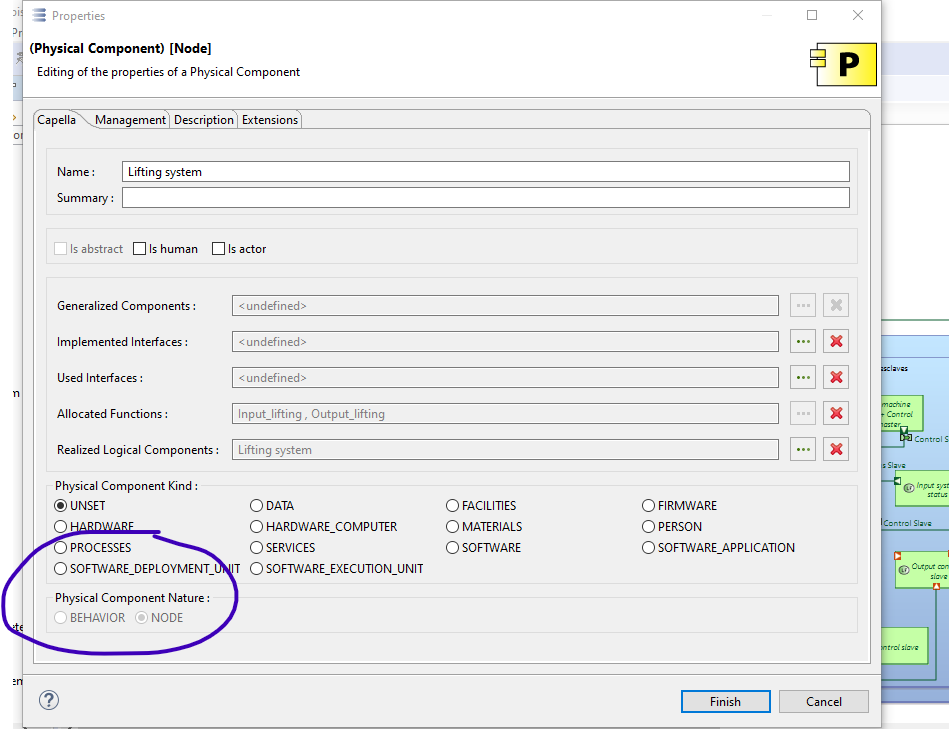

I joined a screenshot to make you see.

Did anyone have this kind of problem and solved it ?

Thank you,

Quentin
Re: LC to PC transition problems [message #1826264 is a reply to message #1826256] Wed, 22 April 2020 08:35 Go to previous messageGo to next message
Eclipse UserFriend
Hi,

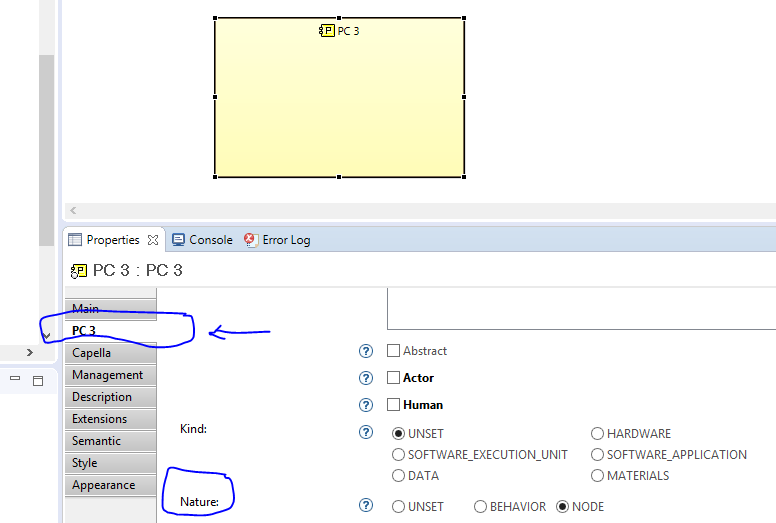

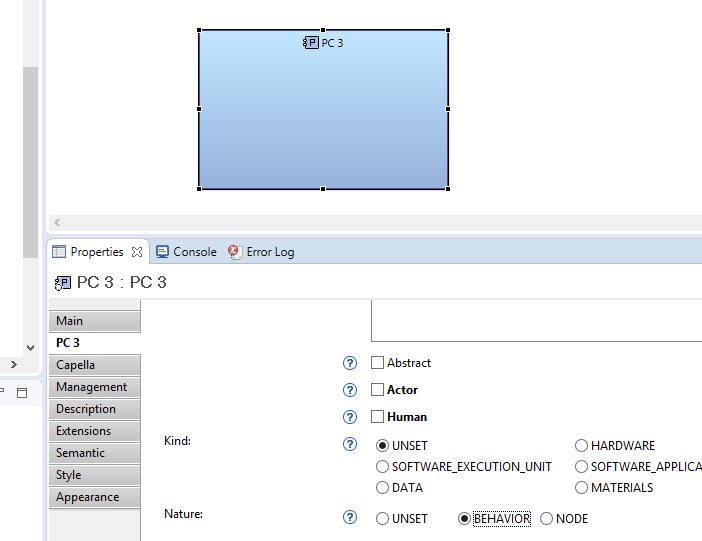

Try to change the nature of the component from the properties -> name of the component tab, which right between the main menu and capella menu.

Check out the following screenshots.

index.php/fa/37907/0/

index.php/fa/37908/0/
  • Attachment: node.PNG
    (Size: 23.62KB, Downloaded 455 times)
  • Attachment: behavior.PNG
    (Size: 20.13KB, Downloaded 424 times)
Re: LC to PC transition problems [message #1826266 is a reply to message #1826264] Wed, 22 April 2020 09:28 Go to previous messageGo to next message
Eclipse UserFriend
FYI, this behavior of the transition will be fixed in future versions of Capella.
Re: LC to PC transition problems [message #1826268 is a reply to message #1826264] Wed, 22 April 2020 09:58 Go to previous messageGo to next message
Eclipse UserFriend
Thanks Soulimane but it doesn't work for me...

Juan, do you have any clue to help me ?
Re: LC to PC transition problems [message #1826269 is a reply to message #1826268] Wed, 22 April 2020 10:02 Go to previous messageGo to next message
Eclipse UserFriend

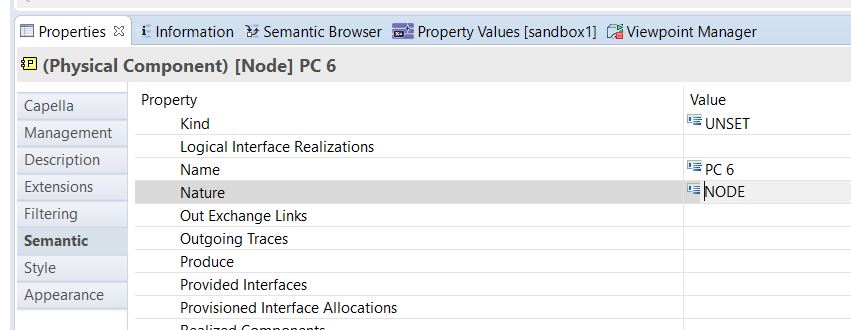

Check the Semantic tab in the Properties view, attribute "Nature" (cf image)
  • Attachment: Capture.JPG
    (Size: 50.74KB, Downloaded 126 times)
Re: LC to PC transition problems [message #1826271 is a reply to message #1826269] Wed, 22 April 2020 10:12 Go to previous messageGo to next message
Eclipse UserFriend
Thanks Juan, it works now !

[Updated on: Wed, 22 April 2020 10:12] by Moderator

Re: LC to PC transition problems [message #1826332 is a reply to message #1826256] Thu, 23 April 2020 11:45 Go to previous message
Eclipse UserFriend
Hi,

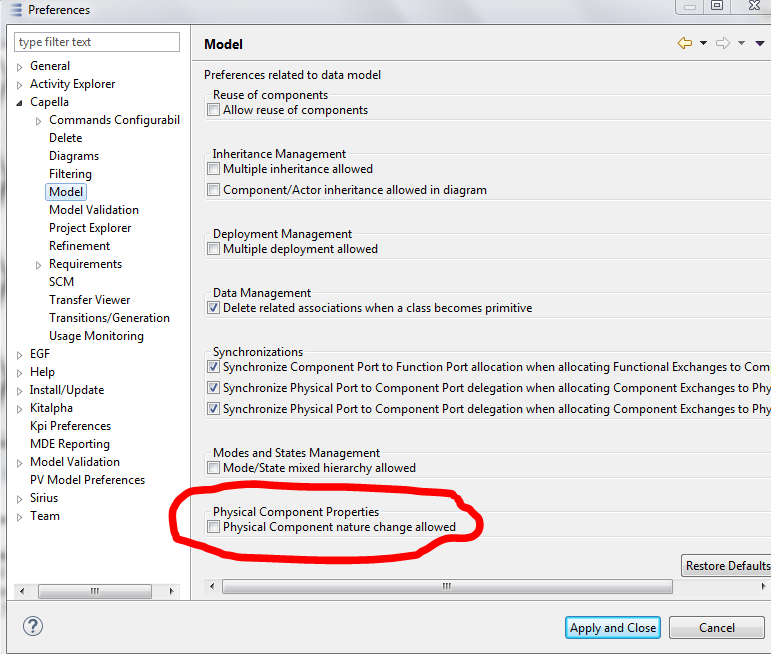

You can also allow the change it in the preferences window. But be carefull it can be dangerous (port, exchanges are not impacted by the change...)

index.php/fa/37924/0/
