Cannot open Papyrus model in eclipse model explorer [message #1824532]

Fri, 17 April 2020 01:10

Eclipse User

Hi,

After upgrading my eclipse IDE from Oxygen (4.7.3a) version to photon version (4.8), I' m not ale to open papyrus model in papyrus perspective model explorer. and not able to create papyrus model from uml file.

below is the stack trace when trying to open papyrus model .di file.

eclipse.buildId=4.8.0.I20180611-0500
java.version=1.8.0_171
java.vendor=Oracle Corporation
BootLoader constants: OS=win32, ARCH=x86_64, WS=win32, NL=en_US
Framework arguments: -product org.eclipse.epp.package.java.product
Command-line arguments: -os win32 -ws win32 -arch x86_64 -product org.eclipse.epp.package.java.product

org.eclipse.ui
Error
Wed Apr 15 00:34:38 EDT 2020
Unhandled event loop exception

java.lang.NoClassDefFoundError: Could not initialize class org.eclipse.papyrus.uml.decoratormodel.internal.resource.DecoratormodelIndex
at org.eclipse.papyrus.uml.decoratormodel.internal.resource.DecoratormodelReadOnlyHandler.anyReadOnly(DecoratormodelReadOnlyHandler.java:67)
at org.eclipse.papyrus.infra.emf.readonly.ReadOnlyManager.anyReadOnly(ReadOnlyManager.java:273)
at org.eclipse.papyrus.infra.emf.readonly.ReadOnlyManager.anyReadOnly(ReadOnlyManager.java:254)
at org.eclipse.papyrus.infra.emf.readonly.ReadOnlyOneFileApprover.proceedExecuting(ReadOnlyOneFileApprover.java:108)
at org.eclipse.papyrus.infra.emf.gmf.command.CheckedOperationHistory.getExecuteApproval(CheckedOperationHistory.java:157)
at org.eclipse.papyrus.infra.emf.gmf.command.CheckedOperationHistory.execute(CheckedOperationHistory.java:190)
at org.eclipse.papyrus.infra.emf.gmf.command.NotifyingWorkspaceCommandStack.doExecute(NotifyingWorkspaceCommandStack.java:264)
at org.eclipse.emf.transaction.impl.AbstractTransactionalCommandStack.execute(AbstractTransactionalCommandStack.java:165)
at org.eclipse.emf.transaction.impl.AbstractTransactionalCommandStack.execute(AbstractTransactionalCommandStack.java:219)
at org.eclipse.papyrus.infra.emf.gmf.command.NestingNotifyingWorkspaceCommandStack.execute(NestingNotifyingWorkspaceCommandStack.java:130)
at org.eclipse.papyrus.uml.diagram.wizards.wizards.InitmodelWizard.createpapyrusmodels(InitmodelWizard.java:163)
at org.eclipse.papyrus.uml.diagram.wizards.wizards.createmodelWizard.createAndOpenpapyrusmodel(createmodelWizard.java:321)
at org.eclipse.papyrus.uml.diagram.wizards.wizards.createmodelWizard.performFinish(createmodelWizard.java:281)
at org.eclipse.jface.wizard.WizardDialog.finishPressed(WizardDialog.java:772)
at org.eclipse.jface.wizard.WizardDialog.buttonPressed(WizardDialog.java:411)
at org.eclipse.jface.dialogs.Dialog.lambda$0(Dialog.java:619)
at org.eclipse.swt.events.SelectionListener$1.widgetSelected(SelectionListener.java:81)
at org.eclipse.swt.widgets.TypedListener.handleEvent(TypedListener.java:249)
at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:86)
at org.eclipse.swt.widgets.Display.sendEvent(Display.java:4118)
at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1052)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:3931)
at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3534)
at org.eclipse.jface.window.Window.runEventLoop(Window.java:818)
at org.eclipse.jface.window.Window.open(Window.java:794)
at org.eclipse.ui.internal.handlers.WizardHandler$New.executeHandler(WizardHandler.java:269)
at org.eclipse.ui.internal.handlers.WizardHandler.execute(WizardHandler.java:290)
at org.eclipse.ui.internal.handlers.HandlerProxy.execute(HandlerProxy.java:291)
at org.eclipse.ui.internal.handlers.E4HandlerProxy.execute(E4HandlerProxy.java:93)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.eclipse.e4.core.internal.di.MethodRequestor.execute(MethodRequestor.java:55)
at org.eclipse.e4.core.internal.di.InjectorImpl.invokeUsingClass(InjectorImpl.java:318)
at org.eclipse.e4.core.internal.di.InjectorImpl.invoke(InjectorImpl.java:252)
at org.eclipse.e4.core.contexts.ContextInjectionFactory.invoke(ContextInjectionFactory.java:173)
at org.eclipse.e4.core.commands.internal.HandlerServiceHandler.execute(HandlerServiceHandler.java:152)
at org.eclipse.core.commands.Command.executeWithChecks(Command.java:494)
at org.eclipse.core.commands.ParameterizedCommand.executeWithChecks(ParameterizedCommand.java:487)
at org.eclipse.e4.core.commands.internal.HandlerServiceImpl.executeHandler(HandlerServiceImpl.java:204)
at org.eclipse.ui.internal.handlers.LegacyHandlerService.executeCommand(LegacyHandlerService.java:393)
at org.eclipse.ui.internal.actions.CommandAction.runWithEvent(CommandAction.java:151)
at org.eclipse.jface.action.ActionContributionItem.handleWidgetSelection(ActionContributionItem.java:565)
at org.eclipse.jface.action.ActionContributionItem.lambda$4(ActionContributionItem.java:397)
at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:86)
at org.eclipse.swt.widgets.Display.sendEvent(Display.java:4118)
at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1052)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:3931)
at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3534)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$5.run(PartRenderingEngine.java:1170)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:336)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:1059)
at org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:153)
at org.eclipse.ui.internal.Workbench.lambda$3(Workbench.java:667)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:336)
at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:597)
at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:148)
at org.eclipse.ui.internal.ide.application.IDEApplication.start(IDEApplication.java:152)
at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:196)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:134)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:104)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:388)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:243)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:656)
at org.eclipse.equinox.launcher.Main.basicRun(Main.java:592)
at org.eclipse.equinox.launcher.Main.run(Main.java:1498)

Appreciate your help to get a fix for this issue.

PS. Please note that this was working fine in Oxygen before I upgrade to Photon.
Thanks,

[Updated on: Sun, 19 April 2020 11:26] by Moderator

Re: Cannot open Papyrus model in eclipse model explorer [message #1826265 is a reply to message #1824532]

Wed, 22 April 2020 09:13

Eclipse User

Hi,

I never had this problem with photon (which is already quite old). How did you migrate from oxygen? Can you try to setup Eclipse photon from scratch? Is it an option for you to use a current Eclipse version?

Re: Cannot open Papyrus model in eclipse model explorer [message #1826499 is a reply to message #1826265]

Sat, 25 April 2020 18:38

Eclipse User

Hi Ansgar,

My intention in the begining was to upgrade Oxygen rather then to go with an Install of Photon from scratch as I don't want to lose my current projects and the procedure I followed is
1- Added http://download.eclipse.org/releases/photon site Under Preferences -> Install/Update -> Available Software Sites
2- I went to Help -> Check for Updates.

If I'm not able to solve this issue definitely I will go with a fresh install of Eclipse 2020-03.

Thanks,
/Kamel

[Updated on: Sat, 25 April 2020 18:39] by Moderator

Re: Cannot open Papyrus model in eclipse model explorer [message #1826516 is a reply to message #1826499]

Sun, 26 April 2020 07:31

Eclipse User

Hi Kamel,
I highly recommend to always do a fresh installation of any Eclipse based IDE with a new, fresh workspace folder.
And import the projects to be used with the new release into the newly created workspace. Please do not forget to set the copy switch.
Following this procedure will keep the old installation completely untouched. Consequently you can use the old installation as fall back until you have completely validated the new installation.
The ability to set up a new installation while preserving the existing one is an IHMO big plus of Eclipse over most commercial IDEs. With IBM Rational Rhapsody for example I do a complete backup before installing a new release.
/Carsten

[Updated on: Sun, 26 April 2020 07:35] by Moderator

Re: Cannot open Papyrus model in eclipse model explorer [message #1826557 is a reply to message #1826516]

Mon, 27 April 2020 01:47

Eclipse User

Hi Ansgar and Carsten,

I have done a fresh install of eclipse 2020-03 using the installer, now the issue of creating a new papyrus model or opening the papyrus models from my old projects is fixed. however I noticed that the modeling perspective is not shown under perspectives.

What is the eclipse plugin responsible for that? I have Eclipse Modeling Framework SDK already installed.

Any idea on how to get it back.

/Kamel

Re: Cannot open Papyrus model in eclipse model explorer [message #1826595 is a reply to message #1826557]

Mon, 27 April 2020 10:57

Eclipse User

Hi Kamel,
"Eclipse Modeling Framework SDK" ist not Papyrus. Either you get the Papyrus all-in-one package or you have to install Papyrus on top of "Eclipse Modeling Framework SDK".
/carsten

Re: Cannot open Papyrus model in eclipse model explorer [message #1826626 is a reply to message #1826595]

Mon, 27 April 2020 19:10

Eclipse User

Hi Carsten,

After Eclispe 2020-03 fresh install, I have installed Papyrus plugin for Eclipse 202-03 (http://download.eclipse.org/modeling/mdt/papyrus/updates/releases/2020-03).

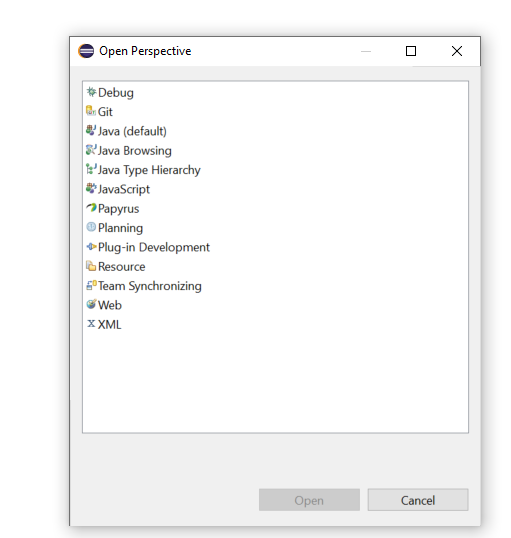

I'm attaching my eclipse perspectives.

Before I had Modeling perspective, don't understand why now is not appearing in the list of perspectives.

Thanks,
/Kamel

Attachment: My Eclipse Pespective.PNG
(Size: 30.65KB, Downloaded 131 times)

[Updated on: Mon, 27 April 2020 19:11] by Moderator

Re: Cannot open Papyrus model in eclipse model explorer [message #1826639 is a reply to message #1826626]

Tue, 28 April 2020 02:13

Eclipse User

Hi Carsten,

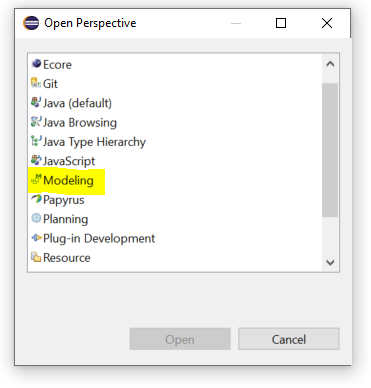

I have fixed my issue. Now I can see Modeling perspective in my eclipse perspectives list.
Basically I have installed Ecore Project modeling plugin for Eclipse 2020-03 on top of EMF SDK and after a restart it is added.

Thanks for your guidance.
/Kamel

Attachment: Modeling perspective.PNG
(Size: 25.75KB, Downloaded 177 times)
