Problem to create node from palette [message #1824297]

Mon, 13 April 2020 15:01

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

Hi,

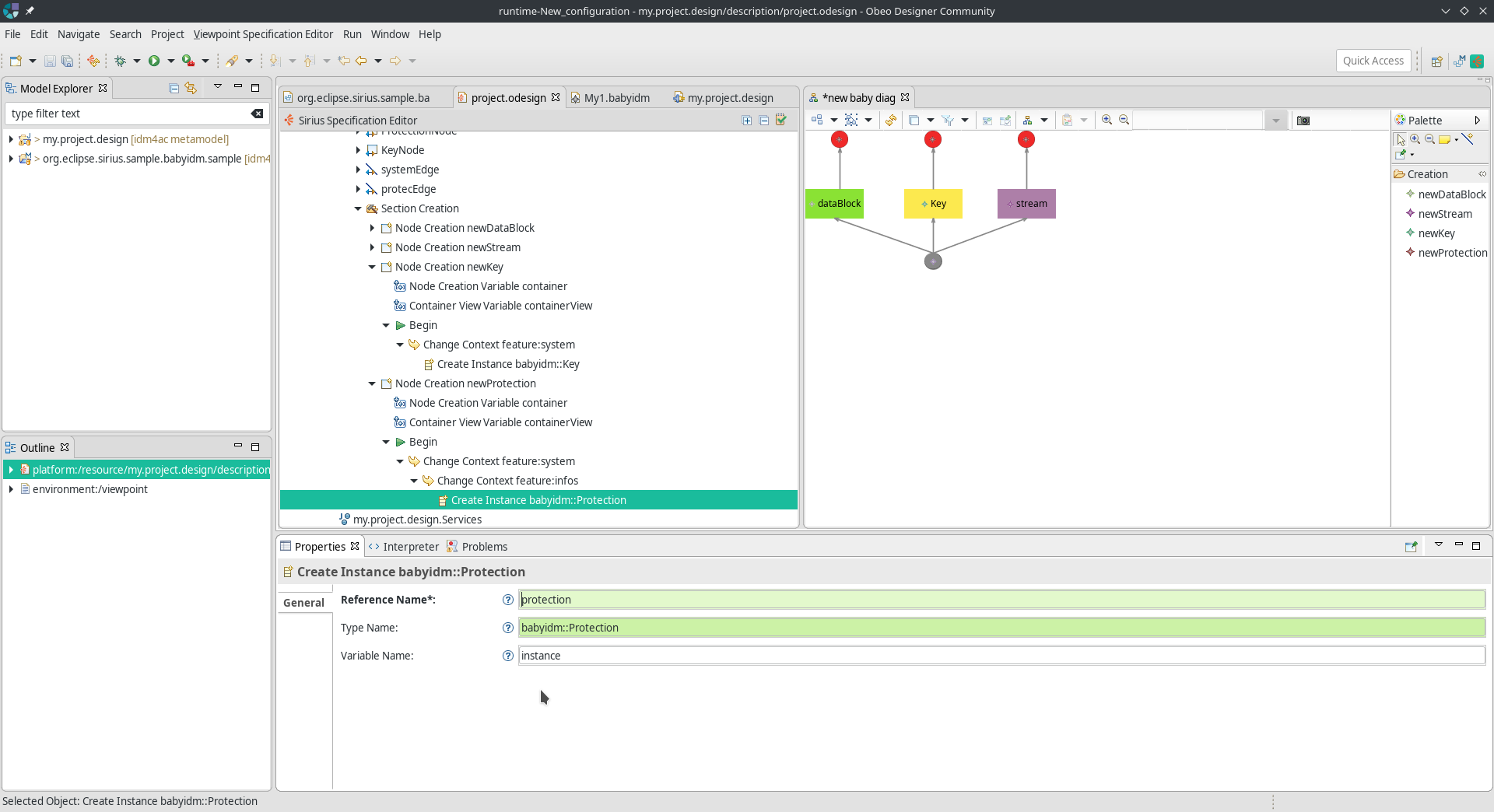

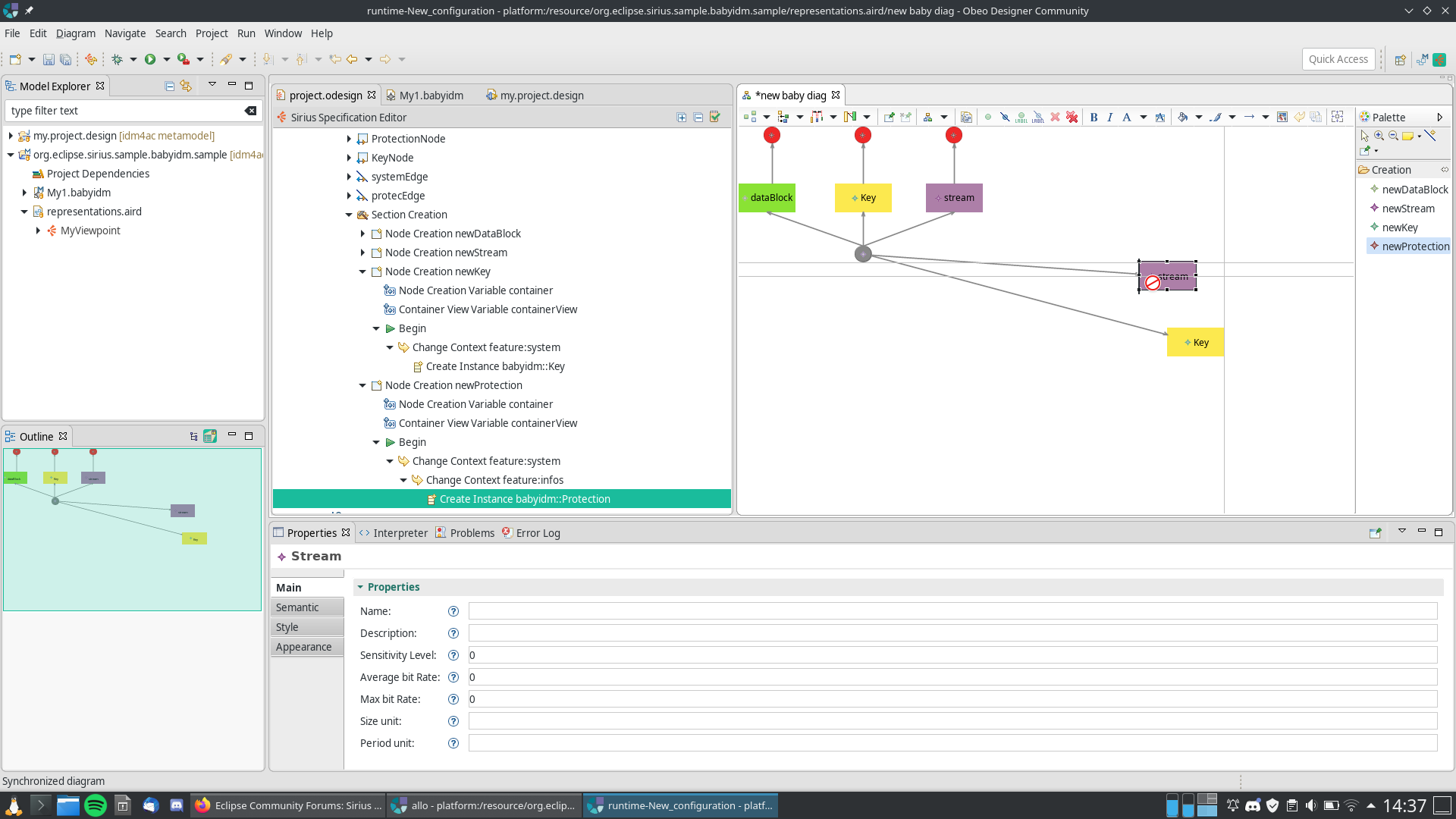

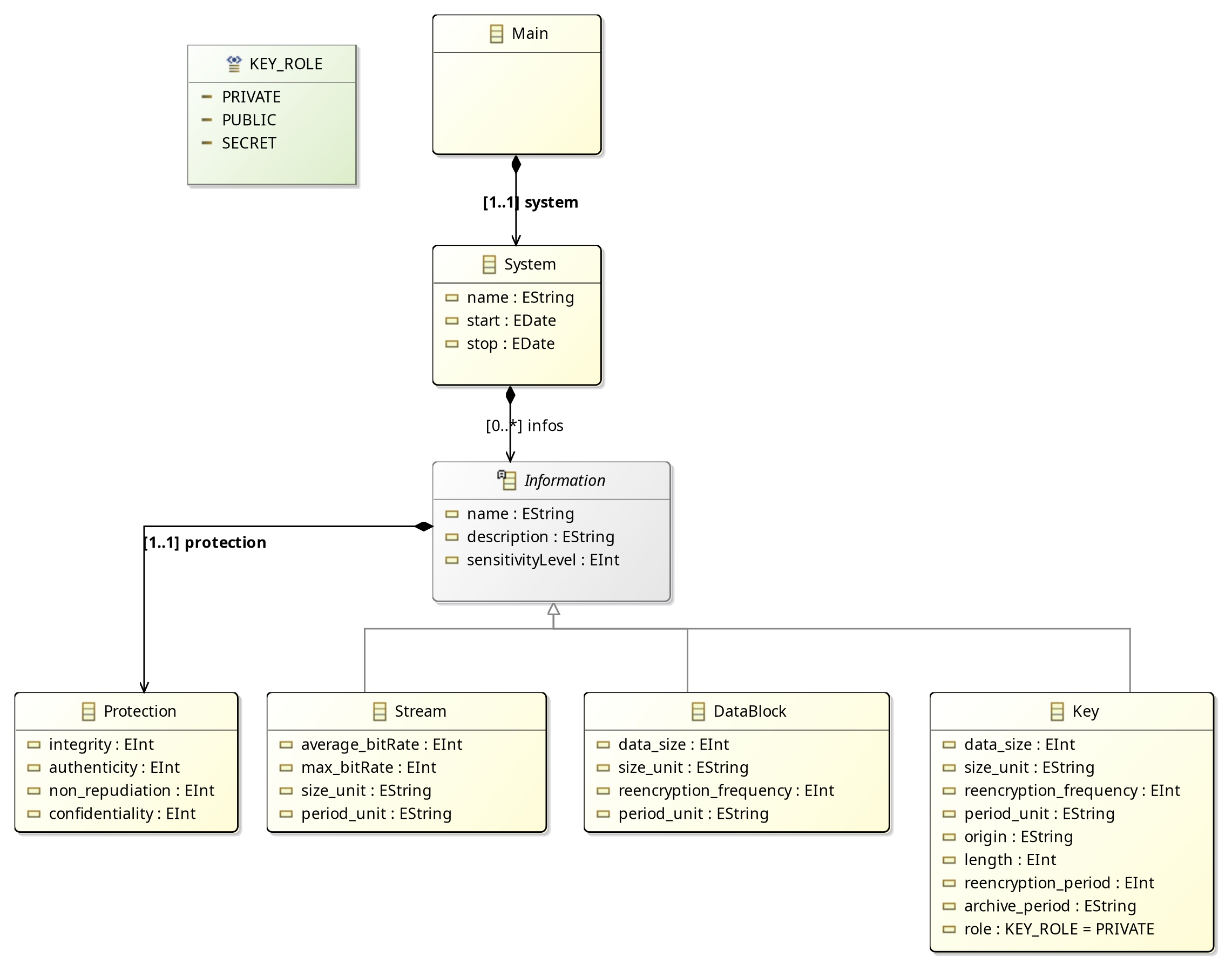

You can see my metamodel below (babyidm.jpg) and a screenshot of my .odesign.
My problem is : I don't succeed to create a "Protection" node from the palette, but i can create "Stream" "DataBlock" and "Key". I don't know why. I proceeded the same way as the 3 others.
Could someone tell me where is my mistake ?

Thanks
Léo

Attachment: babyidm.jpg
(Size: 518.45KB, Downloaded 106 times)
Attachment: odesign.png
(Size: 157.74KB, Downloaded 112 times)

Report message to a moderator

Re: Problem to create node from palette [message #1824446 is a reply to message #1824297]

Wed, 15 April 2020 12:20

Nicolas Vannier is currently offline

Nicolas Vannier

Friend

Messages: 4
Registered: April 2020

Junior Member

The "infos" feature belongs to an "information" object in your model, so I think your tool should be applied on an "information" object and not on the main object.

Report message to a moderator

Re: Problem to create node from palette [message #1824459 is a reply to message #1824446]

Wed, 15 April 2020 15:53

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

Thanks for your reply.
Which tool are you talking about ? Section tool ? I don't understand how to apply it somewhere else.

Report message to a moderator

Re: Problem to create node from palette [message #1824471 is a reply to message #1824459]

Wed, 15 April 2020 18:37

Avi Shaked is currently offline

Friend

Messages: 131
Registered: October 2019

Senior Member

Seems like you first need to change context to the specific "information" element (not just to deatures "infos" which may point to several entities). Since the "protection" node is an element that needs to be contained within a specific "information" node (because of the composition relationship), you first need to navigate to that specifi "information" node (or specify it othewise, and make sure you have created such node befoe the "information" node").

Report message to a moderator

Re: Problem to create node from palette [message #1824502 is a reply to message #1824471]

Thu, 16 April 2020 12:25

Nicolas Vannier is currently offline

Nicolas Vannier

Friend

Messages: 4
Registered: April 2020

Junior Member

When you select a tool in the palette you then have to click somewhere to apply it, I assume you apply it on the diagram background which would be the "main" object, there is no problem with that but as Avi said the "protection" node is contained by an "information" node, however the "main" object contains many "information" nodes ( or none ), so applying the tool on the "main" object without specifying which "information" node is targeted will not work, so as I said before the proper pattern would be to apply the tool on the "information" node that is targeted to begin with.

Report message to a moderator

Re: Problem to create node from palette [message #1824503 is a reply to message #1824471]

Thu, 16 April 2020 12:43

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

Thank you Avi. I understood what you said but do you know how can i navigate to a a specific Information( Stream for exemple) ?
I tried to do something but it's not working (in attachment)

Attachment: Screenshot_20200416_142355.png
(Size: 34.59KB, Downloaded 80 times)

Report message to a moderator

Re: Problem to create node from palette [message #1825004 is a reply to message #1824503]

Fri, 17 April 2020 12:47

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

Yes you are right Nicolas, I was applying it to the background, but I can't apply it to a specific information (see the attachment). That's why I think my .odesign isn't good.

Attachment: screenshot.png
(Size: 207.84KB, Downloaded 71 times)

Report message to a moderator

Re: Problem to create node from palette [message #1826106 is a reply to message #1824503]

Sun, 19 April 2020 17:40

Avi Shaked is currently offline

Friend

Messages: 131
Registered: October 2019

Senior Member

yes.

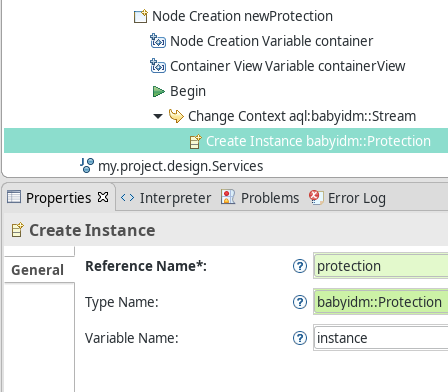

In the create instance properties you can see variable name = instance. You may change it or leave it as it is ("instance").
Then, you need to add another "change context" operation below the "create instance" operation (by right clicking ...). You then use "var: instance" or "aql: instance" for the change context browse expression (in the properties window).

Please let me know you managed it.

Regards,
Avi

P.S. If you wanted to change the context to another entity, and not the newly created one, you may use the "set" operation to declare a variable and then use "change context" operation, or just enter any AQL query for the change context browse expression.

[Updated on: Sun, 19 April 2020 17:42]

Report message to a moderator

Re: Problem to create node from palette [message #1826149 is a reply to message #1826106]

Mon, 20 April 2020 09:57

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

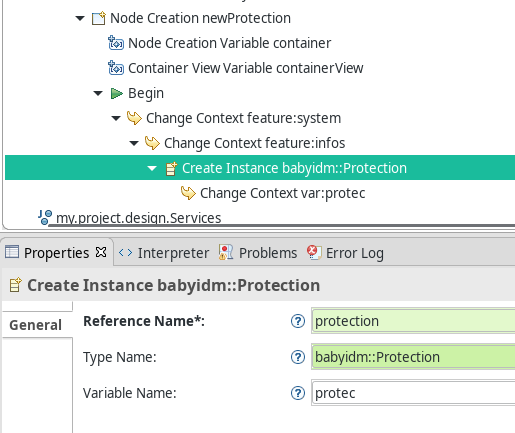

I renamed the variable name of the create instance of NewProtection as "protec". And then I added below a Change Context with "var:protec" (screenshot2.png).

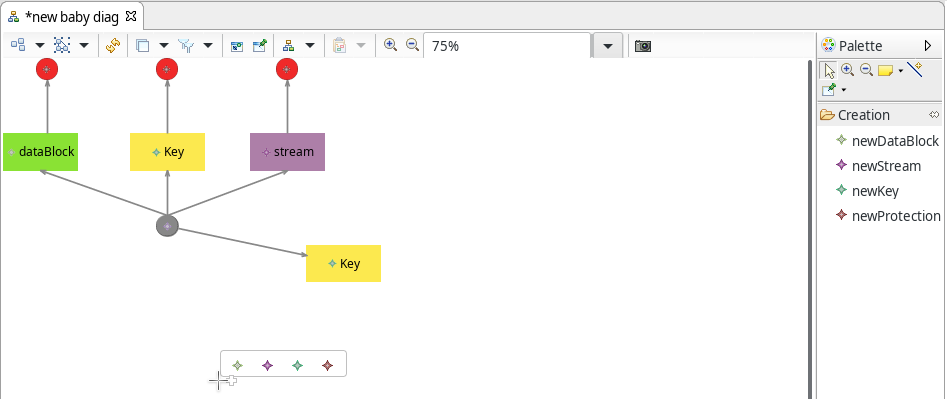

I saved the .odesign but nothing changed on my diagram. I cannot add a protectionNode to a Key, Stream or DataBlock. In fact, it proposes me to create a protection only when I click on the background (main object), and it still doesn't work(4th icon above the cursor on screenshot.png).

Thanks for helping me

Attachment: screenshot.png
(Size: 30.05KB, Downloaded 75 times)
Attachment: screenshot2.png
(Size: 41.28KB, Downloaded 78 times)

Report message to a moderator

Re: Problem to create node from palette [message #1826185 is a reply to message #1826149]

Mon, 20 April 2020 17:55

Avi Shaked is currently offline

Friend

Messages: 131
Registered: October 2019

Senior Member

Hi,

I can see the problem. If I had the odesign I could have commented better, but I will attempt to suggest some help:
Verify the type that the createProtection tool is applied to (. It needs to be applied to a specific information element (and if not, then you should at least navigate to a specific information element from from the element it is applied to). I do not see it in your tool (Screenshot2).
Specifically, it looks like you are applying the tool a Main element, from there you navigate to a System element (which hopefully was already created, otherwise navigation won't work). Then, from there you navigate to "infos", which is NOT a specific information element. You need to navigate to a specific information instance.

I would suggest that you:

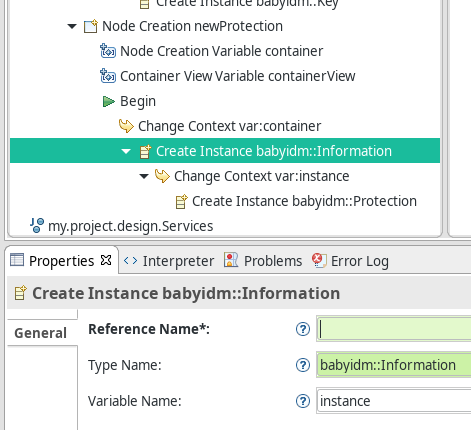

1. try to change the first "change context" to var: container (so that you'll start from the element you clicked on).
2. Assuming the element you clicked on is typed "system" (i.e., the diagram is a representation of system; if it's a representation of another element let me know), create an information element.
3. After the information element creation, in the same tool, change context to the information element you just created and only then create a protection element.
If this works for you, we can continue.

Report message to a moderator

Re: Problem to create node from palette [message #1826222 is a reply to message #1826185]

Tue, 21 April 2020 11:20

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

Hi,
here is my .odesign.
I don't know if I was clear at the beginning but my aim is to let the user do these things :

create new keys, streams or datablock
add protection to each one of these nodes (by selecting protection in the palette and clicking on it)

The system node is already created before and yes it's its representation (but I choose a "main" root to see the system node).
I tried to do what you said but I have a problem, I don't know what to write in the reference name of the Create Instance Information, there is no auto-completion when I choose "var:container" in the change context above it.

Thanks

Léo

Attachment: screenshot3.png
(Size: 41.90KB, Downloaded 68 times)
Attachment: project.odesign
(Size: 12.22KB, Downloaded 73 times)

Report message to a moderator

Re: Problem to create node from palette [message #1826231 is a reply to message #1826222]

Tue, 21 April 2020 15:33

Avi Shaked is currently offline

Friend

Messages: 131
Registered: October 2019

Senior Member

I don't see the tools in the .odesign file you attached.

Anyway, you seem to be on the way. The first change context is good, provided that the tool is applied to a key, stream or datablock.
The reference name (which you left empty) of the first "create instance" should be "protection" (which is the name of the reference between Information to Protection in your ecore metamodel). Also, the type name should be babyidm::Protection (and not information. The key/stream/datablock element on which the tool is applied inherit "information").
Then, you can remove the second "create instance" (because you already created the element). There is no need for the second "change context" as well, unless you want to make any changes to the protection element you just created (but you can leave it as a provision for).

Report message to a moderator

Re: Problem to create node from palette [message #1826487 is a reply to message #1826231]

Sat, 25 April 2020 18:34

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

I did what you said but it still doesn't work (same result as before).

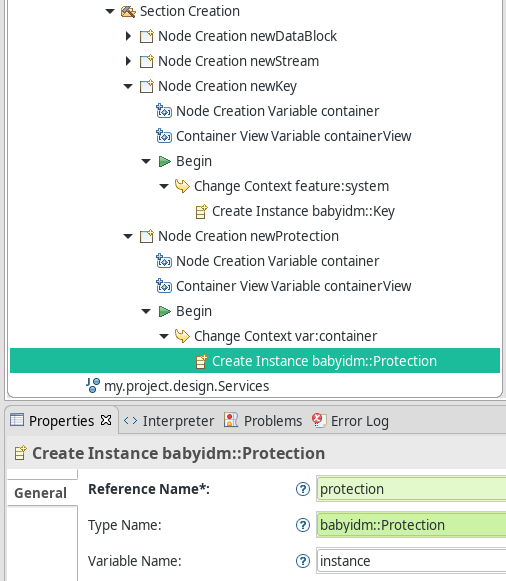

As you can see in the screenshot4 I didn't use the "var:container" for my other create instance so maybe the problem comes from here ? I never succeeded to instantiate object with this var:container (except when I did the StarterTutorial of Sirius).
Thanks

Attachment: screenshot4.png
(Size: 57.49KB, Downloaded 55 times)

Report message to a moderator

Re: Problem to create node from palette [message #1826534 is a reply to message #1826487]

Sun, 26 April 2020 17:41

Avi Shaked is currently offline

Friend

Messages: 131
Registered: October 2019

Senior Member

can you share the exact definition of the entire node creation tool and the node representation associated with it?

Report message to a moderator

Re: Problem to create node from palette [message #1826537 is a reply to message #1826534]

Sun, 26 April 2020 18:38

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

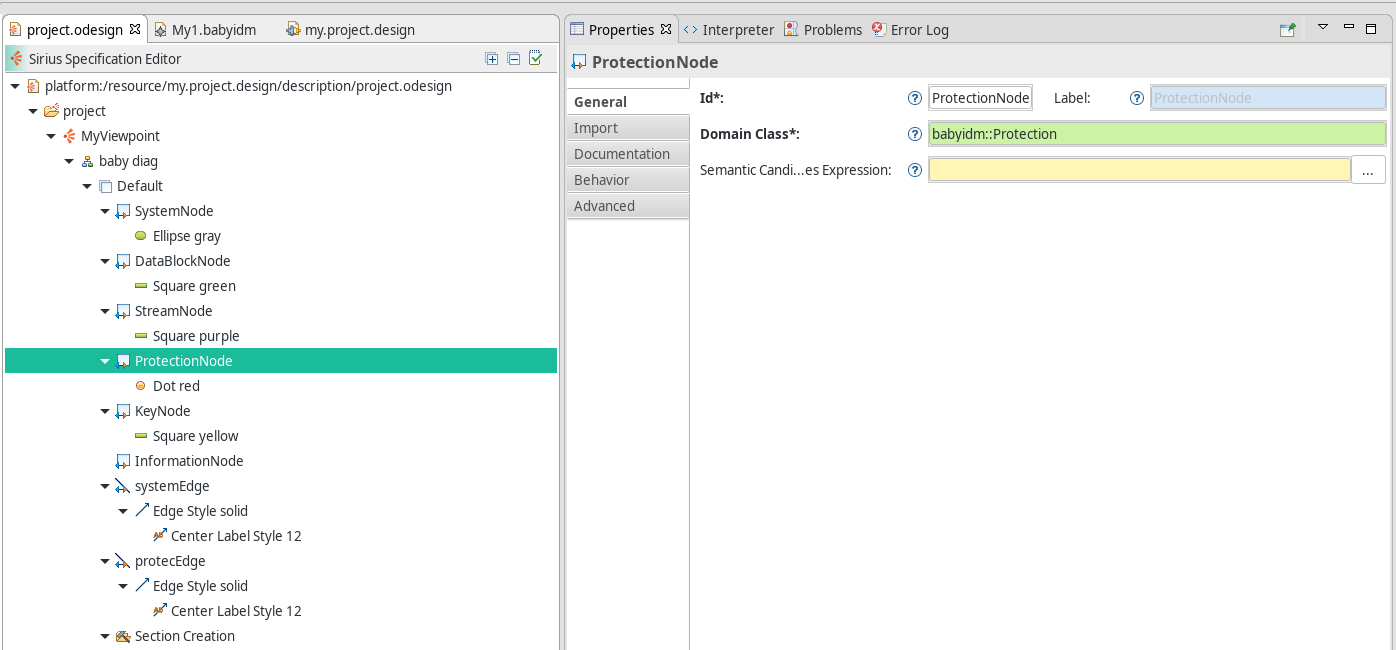

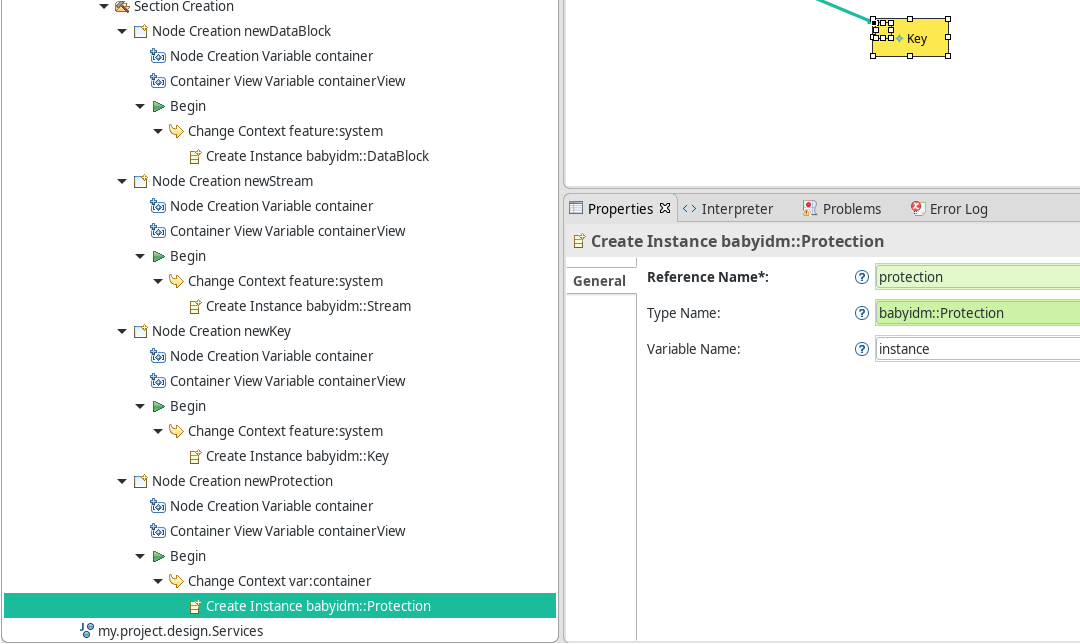

You can see them in attachments, do you need anything else ?
Thank you for spending time on this to help me.

Attachment: node.png
(Size: 80.70KB, Downloaded 64 times)
Attachment: createNode.png
(Size: 84.85KB, Downloaded 67 times)

Report message to a moderator

Re: Problem to create node from palette [message #1826775 is a reply to message #1826537]

Thu, 30 April 2020 09:24

Avi Shaked is currently offline

Friend

Messages: 131
Registered: October 2019

Senior Member

In the Node Creation Protection, select Advanced tab and try to add all elements (or element you want to have protection: Stream, DataBlock, Key).
I believe this should solve the problem.
Anyway, I am attaching an implementation based on the metamodel you provided. I tested it and it works: click on an existing Stream element after you selected the ""Protection" tool and you will see new protection element on the diagram, and as a component of the selected stream element.

Attachment: babyidm design and example.zip
(Size: 9.44KB, Downloaded 75 times)
Attachment: babyIDMecoreModel.zip
(Size: 42.02KB, Downloaded 47 times)

Report message to a moderator

Re: Problem to create node from palette [message #1826814 is a reply to message #1826775]

Fri, 01 May 2020 08:59

Léo Cauvin is currently offline

Friend

Messages: 12
Registered: April 2020

Junior Member

I added my 3 nodes Key/Strem/DataBlock into Extra Mappings in advanced tab of the node creation Protection and it's working !!
The result is exactly what I expected.
Thank you so much for your help !

Report message to a moderator

Re: Problem to create node from palette [message #1826841 is a reply to message #1826814]

Sat, 02 May 2020 05:44

Avi Shaked is currently offline

Friend

Messages: 131
Registered: October 2019

Senior Member

Great to hear!

Report message to a moderator
