Hello,

Is it possible to make a raw TCP/IP client on 4DIAC?

I have tryed raw[ip:port] without any success.

Report message to a moderator

Re: 4DIAC TCP client [message #1822620 is a reply to message #1822619]

Tue, 10 March 2020 14:32

Martin Melik-Merkumians

Messages: 96
Registered: March 2016

Member

Hi,

raw is an encoding layer, not a transport layer.
You can send raw strings via raw[].ip[<ip:port>]

Best regards,
Martin

Report message to a moderator

Re: 4DIAC TCP client [message #1822623 is a reply to message #1822620]

Tue, 10 March 2020 14:41

Paulo Louro

Messages: 31
Registered: February 2020

Member

Hi Martin

Thanks, I have been searching for this info, even looked into the FORTE source code but didnt manage to find the answer.

Just tested it an it worked perfect.

Best regards,
Paulo

Report message to a moderator

Re: 4DIAC TCP client [message #1822624 is a reply to message #1822623]

Tue, 10 March 2020 14:58

Paulo Louro

Messages: 31
Registered: February 2020

Member

Hey again

Now that i can send, i'm trying to receive a string. How can this be done?

I have connected a STRING2STRING to the CNF.->REQ and RD_1-> IN but in the Client_1 output says ND.

If i send from the server it increments the events in the CNF of CLIENT_1.

Best regards.

Report message to a moderator

Re: 4DIAC TCP client [message #1822625 is a reply to message #1822624]

Tue, 10 March 2020 15:01

Martin Melik-Merkumians

Messages: 96
Registered: March 2016

Member

Can you send a screenshot of your application?

Report message to a moderator

Re: 4DIAC TCP client [message #1822626 is a reply to message #1822625]

Tue, 10 March 2020 15:04

Paulo Louro

Messages: 31
Registered: February 2020

Member

Hey

There you go.

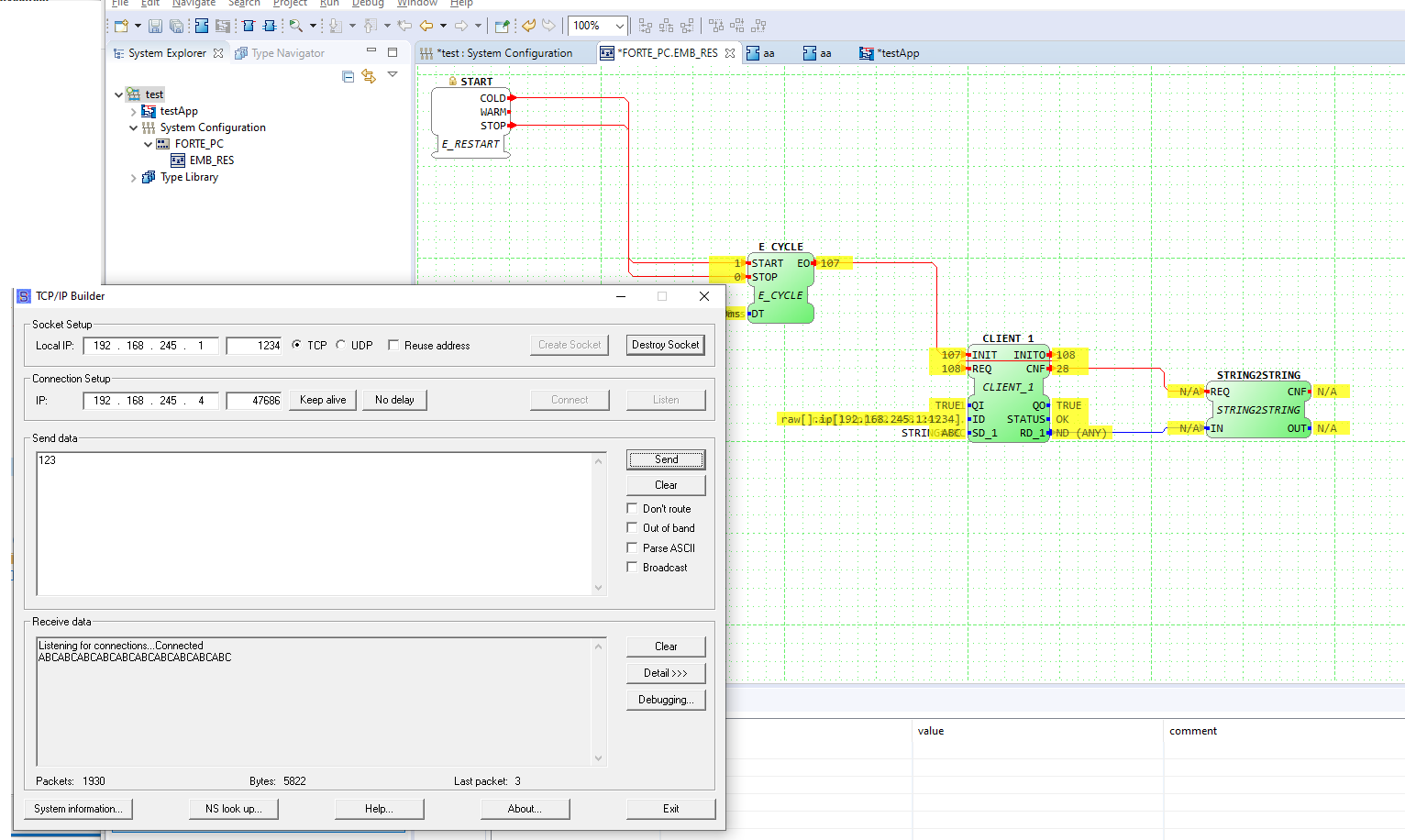

Attachment: Untitled.png
(Size: 84.47KB, Downloaded 22 times)

Report message to a moderator

Re: 4DIAC TCP client [message #1822628 is a reply to message #1822626]

Tue, 10 March 2020 15:13

Paulo Louro

Messages: 31
Registered: February 2020

Member

Ok I double clicked on the output of CLIENT_1 and deleted the ND, after that I'm able to see the 123 I'm sending via the socket.

Correction i wrote STRING# while watching the FB

[Updated on: Tue, 10 March 2020 15:17]

Report message to a moderator

Re: 4DIAC TCP client [message #1822629 is a reply to message #1822628]

Tue, 10 March 2020 15:14

Martin Melik-Merkumians

Messages: 96
Registered: March 2016

Member

Ok, so this is solved I guess?

Report message to a moderator

Re: 4DIAC TCP client [message #1822630 is a reply to message #1822629]

Tue, 10 March 2020 15:18

Paulo Louro

Messages: 31
Registered: February 2020

Member

I think this is more like a user error then anything else... I'm a new on 4DIAC or IEC 61499 std.

Anyways now I can see the string on the output of the CLIENT_1 FB but no luck getting that into the STRING2STRING.

Report message to a moderator

Re: 4DIAC TCP client [message #1822632 is a reply to message #1822630]

Tue, 10 March 2020 15:20

Martin Melik-Merkumians

Messages: 96
Registered: March 2016

Member

Thats strange. Perhaps redraw that part of the application and redownload. If you see the STRING in the CLIENT it has been typified, so the STRING2STRING should be connected.

Report message to a moderator

Re: 4DIAC TCP client [message #1822646 is a reply to message #1822632]

Tue, 10 March 2020 17:40

Alois Zoitl

Messages: 1039
Registered: January 2014

Senior Member

for me it looks like that the STRING2STRING was not deployed to the device. Can you have a look in the deployment console and check if your string2string is shown there.

Report message to a moderator
