Remove actions from context menu {Diagram Editor} [message #1822106]

Thu, 27 February 2020 12:09

Mohit Advani

Messages: 28
Registered: May 2019

Junior Member

Hi,

i want to remove some of action from context menu of diagram editor {right click on diagram}, i have hidden some of them by using activities extension but some of them i m unable to remove , even i have checked the Plugin spy to find out item identifies. i have attached snap of all the other which i want to hide {PFA}
i want o remove
-Edit
- Show/Hide
-Select
- Layout

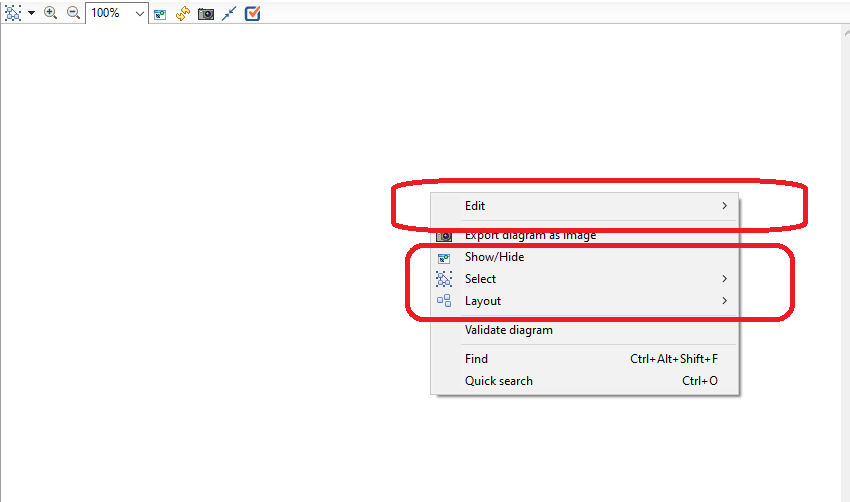

Attachment: Diagram-Context-Menu.png
(Size: 12.95KB, Downloaded 9 times)

Report message to a moderator

Re: Remove actions from context menu {Diagram Editor} [message #1822121 is a reply to message #1822106]

Thu, 27 February 2020 15:32

Laurent Fasani

Messages: 173
Registered: October 2014

Senior Member

Hello

Tweaking contextual menu is not necessarily easy.

The menu entries you want to remove seems to be gmf ones.

You need to provide extension data on org.eclipse.gmf.runtime.common.ui.services.action.contributionItemProviders extension point.

Sirius already removes some gmf provided menus. See example in https://git.eclipse.org/c/sirius/org.eclipse.sirius.git/tree/plugins/org.eclipse.sirius.diagram.ui/plugin.xml line 336

To find the id of the menu entry the Sirius documentation may help you https://www.eclipse.org/sirius/doc/specifier/diagrams/Diagrams.html#tools_reference paragraph "Group menu".

Best regards
Laurent

Laurent Fasani - Obeo
Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator
