cross reference between two resources [message #1820807] Wed, 29 January 2020 12:25 Go to next message
Nagashree KN is currently offline Nagashree KNFriend
Messages: 32
Registered: September 2018
Member
Hi all,

I am using Autosar model in my xtext grammar.
My use case is I will have arxml file with some configuration, for one element in the arxml file i need to open xtext editor.
My problem here is element has cross reference to another element, which will be present in autosar resource not in xtext resource.
How i will show that element in content assist.


Any help would be much appreciated!

Thanks!!
Re: cross reference between two resources [message #1820812 is a reply to message #1820807] Wed, 29 January 2020 13:41 Go to previous messageGo to next message
Tamas Miklossy is currently offline Tamas MiklossyFriend
Messages: 114
Registered: February 2016
Senior Member
You can take a look at the followig blog post:
https://blogs.itemis.com/en/combining-emf-models-with-xtext-dsls
Re: cross reference between two resources [message #1820815 is a reply to message #1820812] Wed, 29 January 2020 14:34 Go to previous messageGo to next message
Christian Dietrich is currently offline Christian DietrichFriend
Messages: 13643
Registered: July 2009
Senior Member
for autosar (i assume you use artop) you have to come up with a manual scoping solution

Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de
Re: cross reference between two resources [message #1820845 is a reply to message #1820812] Thu, 30 January 2020 09:55 Go to previous messageGo to next message
Nagashree KN is currently offline Nagashree KNFriend
Messages: 32
Registered: September 2018
Member
Hi,

Thanks for the quick replay.

I tried to implement the same way as it is there in this link - https://blogs.itemis.com/en/combining-emf-models-with-xtext-dsls.

I am getting error "Couldn't resolve reference to Node 'Root'".

I have attatched the files.
can any one please tell where i am doing wrong.

Thanks!!

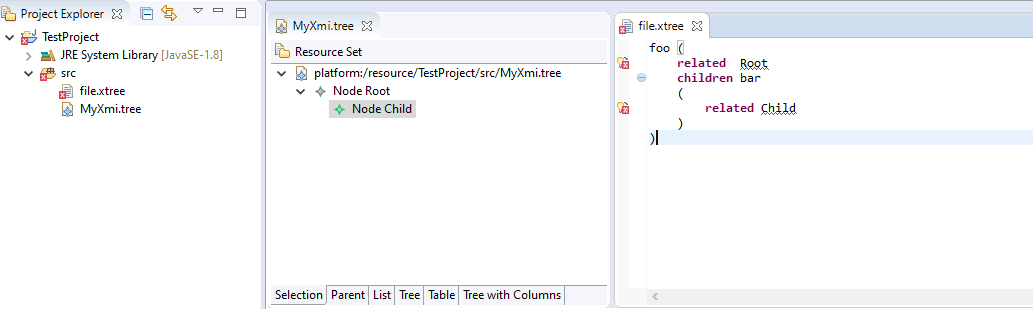

  • Attachment: Result.png
    (Size: 19.67KB, Downloaded 17 times)
  • Attachment: MyDsl.7z
    (Size: 1.45MB, Downloaded 11 times)
Re: cross reference between two resources [message #1820852 is a reply to message #1820845] Thu, 30 January 2020 12:15 Go to previous messageGo to next message
Tamas Miklossy is currently offline Tamas MiklossyFriend
Messages: 114
Registered: February 2016
Senior Member
Hi,

could you create a branch with the name forum/thread1102196 on the https://github.com/itemis/xtext-issues GitHub repository and upload your project there?
Please also update your TestProject.

Tamás
Re: cross reference between two resources [message #1820882 is a reply to message #1820852] Fri, 31 January 2020 05:18 Go to previous messageGo to next message
Nagashree KN is currently offline Nagashree KNFriend
Messages: 32
Registered: September 2018
Member
Hi Tamas ,

I create File1.xtree (Image i have attatched). I deleted that file soon.

From then after Cross references errors are not coming.
Its working fine now.

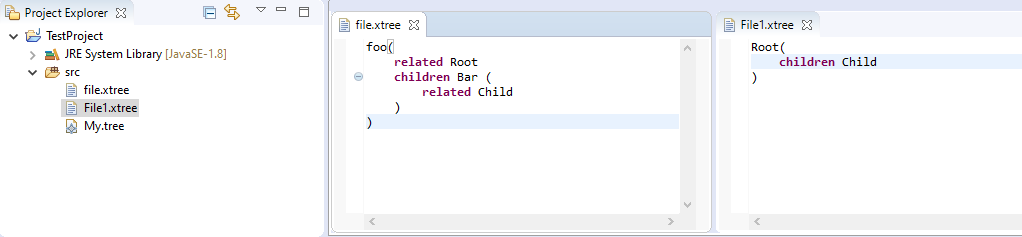

  • Attachment: Image.png
    (Size: 15.82KB, Downloaded 11 times)
Re: cross reference between two resources [message #1820897 is a reply to message #1820882] Fri, 31 January 2020 09:16 Go to previous messageGo to next message
Nagashree KN is currently offline Nagashree KNFriend
Messages: 32
Registered: September 2018
Member
Hi,

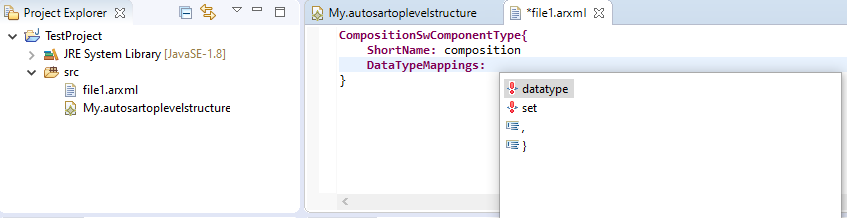

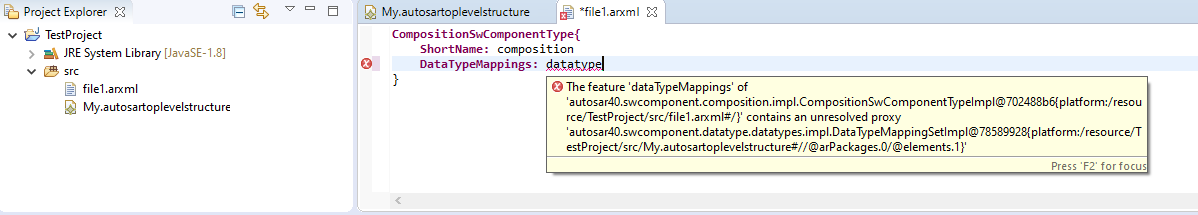

I have another problem now. The same thing i did for AUTOSAR model, In content assist element to be referred is being shown as proxy object.
Why element is becoming proxy, how i can resolve.
Re: cross reference between two resources [message #1820899 is a reply to message #1820897] Fri, 31 January 2020 09:39 Go to previous messageGo to next message
Christian Dietrich is currently offline Christian DietrichFriend
Messages: 13643
Registered: July 2009
Senior Member
you give no details what you implement. e.g. nameprovider for arxml.
how shall we help then


Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de
Re: cross reference between two resources [message #1820902 is a reply to message #1820899] Fri, 31 January 2020 10:08 Go to previous messageGo to next message
Nagashree KN is currently offline Nagashree KNFriend
Messages: 32
Registered: September 2018
Member
Xtext grammar-

// automatically generated by Xtext
grammar org.xtext.example.xtext.MyDsl with org.eclipse.xtext.common.Terminals

import "http://www.eclipse.org/emf/2002/Ecore" as ecore
import "platform:/resource/org.artop.aal.autosar446/model/autosar446.ecore#//swcomponent/composition"
import "platform:/resource/org.artop.aal.autosar446/model/autosar446.ecore#//swcomponent/datatype/datatypes"

CompositionSwComponentType:
{CompositionSwComponentType}
'CompositionSwComponentType{'
('ShortName:' shortName=String0)?
('DataTypeMappings:'dataTypeMappings+=[DataTypeMappingSet|String0] (','dataTypeMappings+=[DataTypeMappingSet|String0])*)?
(checksum=String0)?
(category=String0)?
(uuid=String0)?
(shortNamePattern=String0)?
'}';
String0 returns ecore::EString:
ID* & INT* & '-'*
;
Work flow-

module org.xtext.example.xtext.GenerateMyDsl

import org.eclipse.xtext.xtext.generator.*
import org.eclipse.xtext.xtext.generator.model.project.*

var rootPath = ".."

Workflow {

component = XtextGenerator {
configuration = {
project = StandardProjectConfig {
baseName = "org.xtext.example.xtext"
rootPath = rootPath
runtimeTest = {
enabled = true
}
eclipsePlugin = {
enabled = true
}
eclipsePluginTest = {
enabled = true
}
createEclipseMetaData = true
}
code = {
encoding = "windows-1252"
lineDelimiter = "\r\n"
fileHeader = "/*\n * generated by Xtext \${version}\n */"
}
}
language = StandardLanguage {
name = "org.xtext.example.xtext.MyDsl"
fileExtensions = "arxml"
referencedResource = "platform:/resource/org.artop.aal.autosar446/model/autosar446.genmodel"

fragment = ecore2xtext.Ecore2XtextValueConverterServiceFragment2 auto-inject {}
parserGenerator = {
antlrParam = "-Xmaxinlinedfastates" antlrParam = "100000"
antlrParam = "-Xmaxswitchcaselabels" antlrParam = "30000"
antlrParam = "-Xminswitchalts" antlrParam="1"
options = {
backtrack = true
classSplitting = true
fieldsPerClass = "2000"
methodsPerClass = "2000"
}
// antlrParam = "-Xconversiontimeout"
// antlrParam = "5000"
// options = {
// memoize = true
// }
}
formatter = {
generateStub = true
}

serializer = {
generateStub = false
}
validator = {
// composedCheck = "org.eclipse.xtext.validation.NamesAreUniqueValidator"
// Generates checks for @Deprecated grammar annotations, an IssueProvider and a corresponding PropertyPage
generateDeprecationValidation = true
}
junitSupport = {
junitVersion = "5"
}
}
}
}
Name provider-

public class GrammarReferenceNameProvider extends DefaultDeclarativeQualifiedNameProvider {

QualifiedName qualifiedName(EObject element) {
QualifiedName local_qualifiedName = null;
if(element instanceof CompositionSwComponentType) {
local_qualifiedName = QualifiedName.create(((CompositionSwComponentType) element).getShortName());
}
else if(element instanceof DataTypeMappingSet) {
local_qualifiedName = QualifiedName.create(((DataTypeMappingSet) element).getShortName());
}
return local_qualifiedName;
}
}
