Eclipse 201906 - sequence diagram issue sysML and UML [message #1815583] Sun, 06 October 2019 07:11 Go to next message
Emmanuel MARCON is currently offline Emmanuel MARCONFriend
Messages: 4
Registered: October 2019
Junior Member
I have an issue with sequence diagram when I using sysML 1.6 or UML paryrus Model . All works perfectly until I create a message between lifeline .

For an unkow reason, when I create a message between 2 lifeline that underlined with object instance, the Eclipse GUI do not purpose Create Message Box - Selected Existing Element that is very useful in such diagram .

Perhaps I missed something but I are very stuck on this now, an help would be appreciated .
Re: Eclipse 201906 - sequence diagram issue sysML and UML [message #1815743 is a reply to message #1815583] Wed, 09 October 2019 16:50 Go to previous messageGo to next message
Emmanuel MARCON is currently offline Emmanuel MARCONFriend
Messages: 4
Registered: October 2019
Junior Member

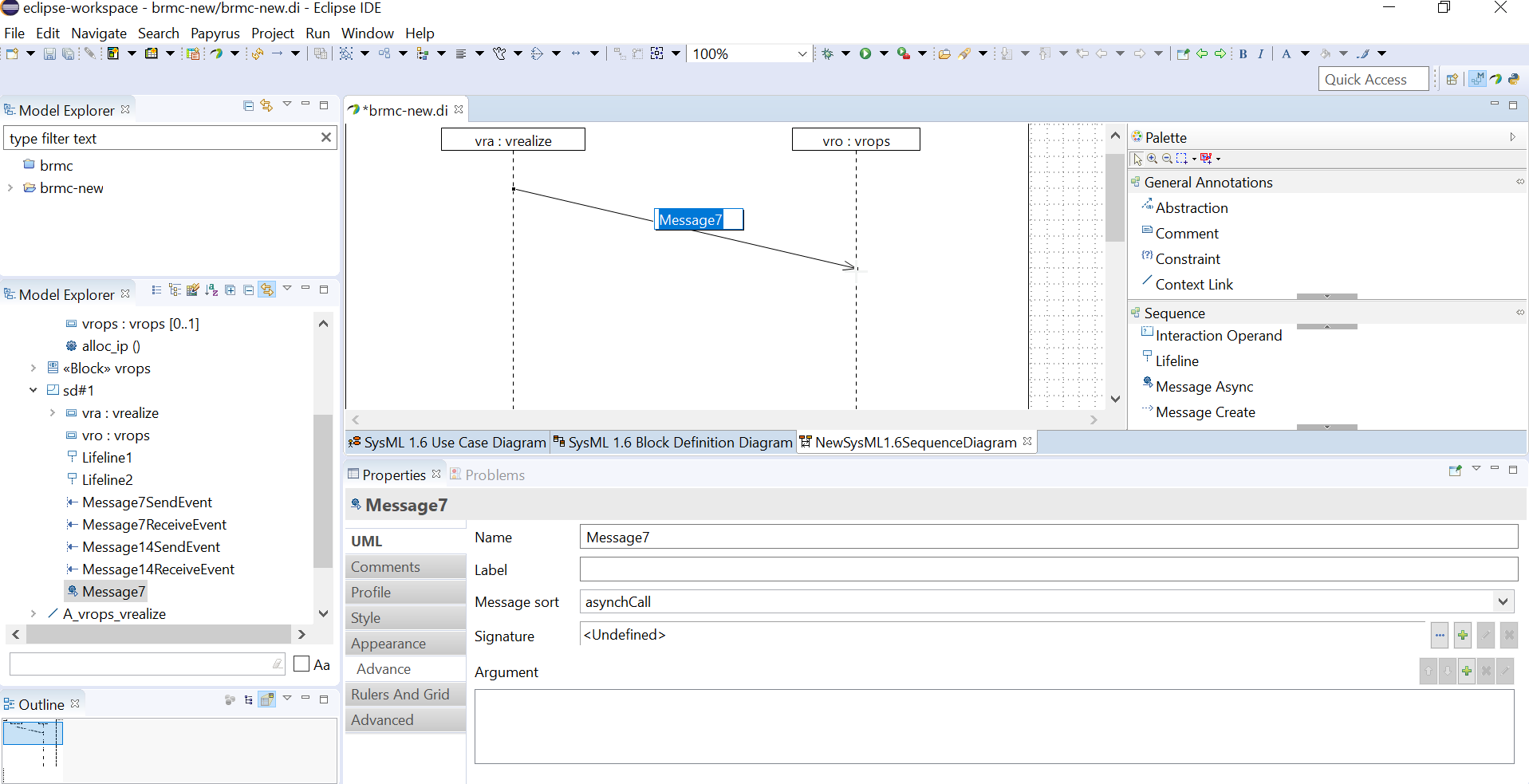

in the previous example ( see attached file ), a dialog box Create Message Box - Select Existing Element should appear ( i.e alloc_ip() that is an operations from the block vrop in my example ).
when clicking on the Lifeline (that become bold on previous version Eclipse Neon with Papyrus SysML 1.4 ) ,but in my current ( Eclipse 201909 version) I do not have this behavior . Lifeline do not become bold and Message Box do not appear .


Is something wrong with my model , is it a bug ? Appreciated if someone could made same test ...

[Updated on: Wed, 09 October 2019 16:51]

Report message to a moderator

Re: Eclipse 201906 - sequence diagram issue sysML and UML [message #1815937 is a reply to message #1815743] Tue, 15 October 2019 14:09 Go to previous message
Joel Greenyer is currently offline Joel GreenyerFriend
Messages: 19
Registered: October 2014
Junior Member
This was already asked in another thread.

It seems that many are missing this dialog box.

Unfortunately, there is noone responding.
