Home » Modeling » Papyrus » About modeling with MARTE(Questions about using stereotypes in MARTE)
About modeling with MARTE [message #1814244] Fri, 06 September 2019 10:24 Go to next message
xinwen hu is currently offline xinwen huFriend
Messages: 1
Registered: September 2019
Junior Member

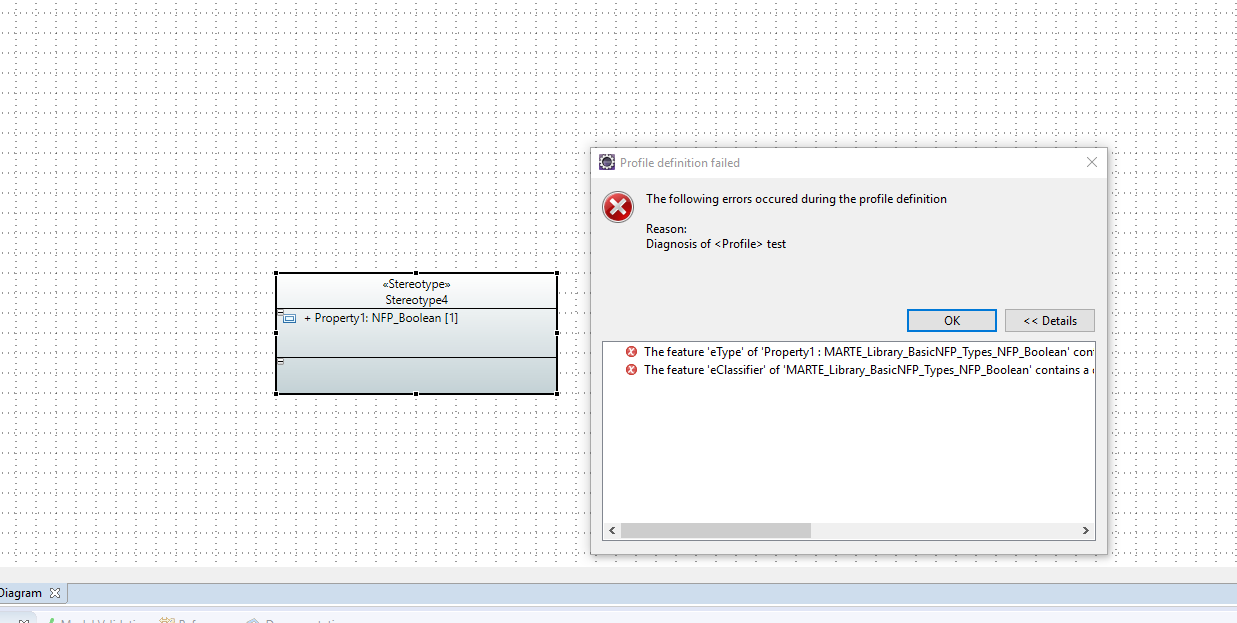

Hi, I import the profile and modelLibrary of MARTE in my profile model in papyrus project, however, I cannot define stereotype attributes with NFP_kinds Types. Like attached figure. index.php/fa/36239/0/

problems: The feature"****" contains a dangling reference "".

Does anyone know how to solve this problem?

And, If I define a stereotype attribute with a VSL_expressions type, how can I define the syntax or how to use VSL in my model?

Thanks in advance.
Re: About modeling with MARTE [message #1814355 is a reply to message #1814244] Tue, 10 September 2019 06:47 Go to previous message
Carsten Pitz is currently offline Carsten PitzFriend
Messages: 172
Registered: May 2015
Location: Germany
Senior Member
Hi,
as far as I know the last version of Papyrus officially supporting (https://www.eclipse.org/papyrus/relatives.html) the MARTE profile is Oxygen.
Which version of Papyrus have you used?
/pica
