Create a subprocess where i can drag and drop another nodes [message #1807273]

Mon, 27 May 2019 10:24

Mohit Advani

Messages: 25
Registered: May 2019

Junior Member

Hi,

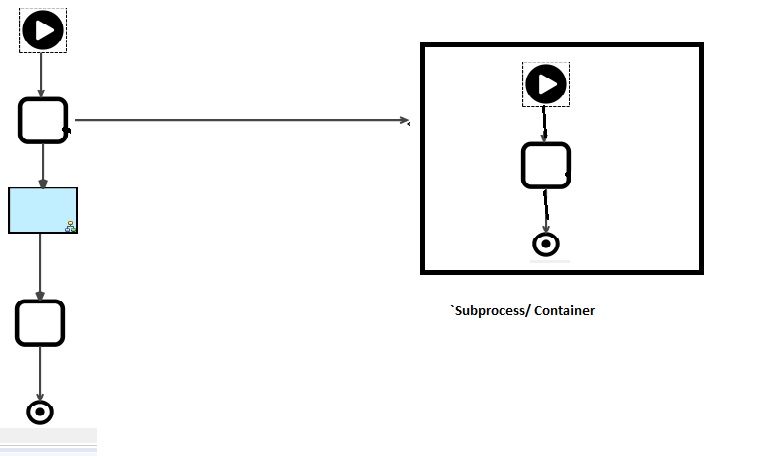

Can i create a container where i can directly drag and drop nodes, rather than open a new tab, sub tasks will be directly visible in main diagram window . i want to provide this container option in my palette whenever user have certain tasks with common functionalities it will first drag a container and then he can drag nodes in that container. (Attaching a template diagram)

Attachment: Template.jpg
(Size: 26.42KB, Downloaded 33 times)

Report message to a moderator

Re: Create a subprocess where i can drag and drop another nodes [message #1808334 is a reply to message #1807273]

Fri, 21 June 2019 15:40

Pierre Guilet

Messages: 250
Registered: June 2017

Senior Member

Hi,

Yes use a container drop tool --> https://www.eclipse.org/sirius/doc/specifier/diagrams/Diagrams.html#containers
Also adapt your metamodel to have a reference in the container to tasks inside to have its own mapping that you can see when you drag the task inside.

Regards,

Pierre Guilet - Obeo
