Unable to write n-ary relationships in papyrus, Is a must !! [message #1806169] Sat, 04 May 2019 17:07
Eduardo Gutierrez is currently offline Eduardo GutierrezFriend
Messages: 32
Registered: December 2017
Member
Related: https://www.eclipse.org/forums/index.php/t/1092740/

I need to represent n-ary relationship ( 3-ary and 4ary) with probably an association class or attribute ( as data contract for example).

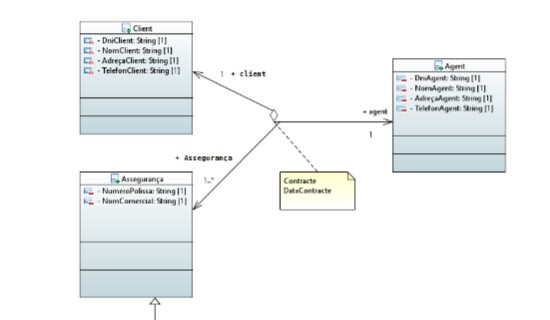

Asseguran├ža is insurance in english. So i need to made a relationship between the agent, the client and the insurance, with a concrete date ( should be an association class).

index.php/fa/35466/0/

I think its a must papyrus has to develop as there are very used
