Missing diagrams and stereotypes; splitting models [message #1803198]

Mon, 25 February 2019 04:30

Eclipse User

I want to separate a "library" package of my model in an extra model. Then in library model stereotypes and diagrams are missing.
The following steps (reproducible according attachment), I performed.
1. model-architecture in folder model-architecture-source created
2. model-architecture.uml, model-architecture.di, model-architecture.notation copied to folder models-split
3. model-library created in folder models-split with the same applied profiles as for model-architecture
4. model-library imported in model-architecture (in folder models-split) by "Import Package From User Model" and Import All
5. package library-package moved to model-library, Enable Write for model-library files confirmed
6. model-architecture saved and closed
7. model-library opened => MARTE stereotypes and classdiagram Mp1 are missing

I use Eclipse IDE for C/C++ Developers Photon 4.8 and Papyrus software Designer 1.1.0

Attachment: splitmodel.zip
(Size: 10.23KB, Downloaded 112 times)

Re: Missing diagrams and stereotypes; splitting models [message #1803953 is a reply to message #1803198]

Thu, 14 March 2019 05:06

Eclipse User

Hello Michael,
please, could you indicate us how you proceed to create your Library ?

Re: Missing diagrams and stereotypes; splitting models [message #1804319 is a reply to message #1803953]

Fri, 22 March 2019 07:22

Eclipse User

Hi Vincent,
I reworked my problem description :
Steps to create the model-library.uml

The starting point is the model-architecture.uml in folder model-architecture-source.
This model contains a package "library-package". This package I want to separate
in an extra model named "model-library.uml". The "library-package" does not have
any dependencies to other packages in model-architecture.
(see attachment1_model-architecture.png)

Following steps I performed:
1.Copy the model-architecture(uml, di, notation) to folder models-split
2.Rename model-architecture to model-architecture-split
3.Create an empty model "model-library((uml, di, notation)" in folder model-split and apply the same MARTE Profile packages from "model-architecture-split" on it.
4.Import model-library in model-architecture-split by "Import Package From User Model" and Import All
5.Move package "library-package" from model-architecture-split to model-library, Enable Write for model-library files confirmed
(see attachment2_model-architecture-split.png)
6.Save and close model-architecture-split
7.Open model-library => MARTE stereotypes and classdiagram Mp1 are missing
(see attachment3_model-library-png)

The attachment splitmodel2.zip contains the mentioned models.
I hope you can reproduce the problem.

BR Michael

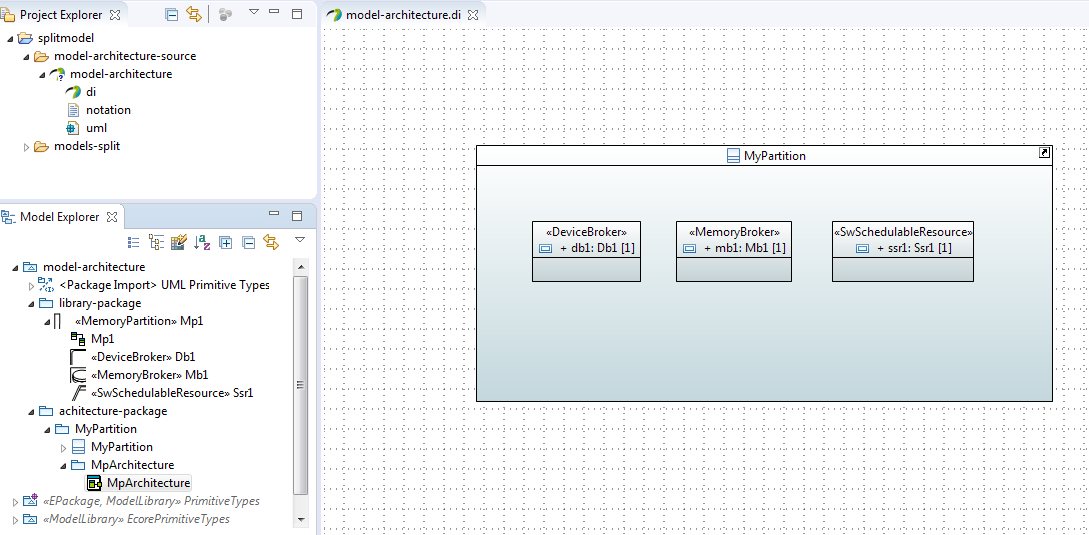

Attachment: attachment1_model-architecture.PNG
(Size: 40.75KB, Downloaded 85 times)

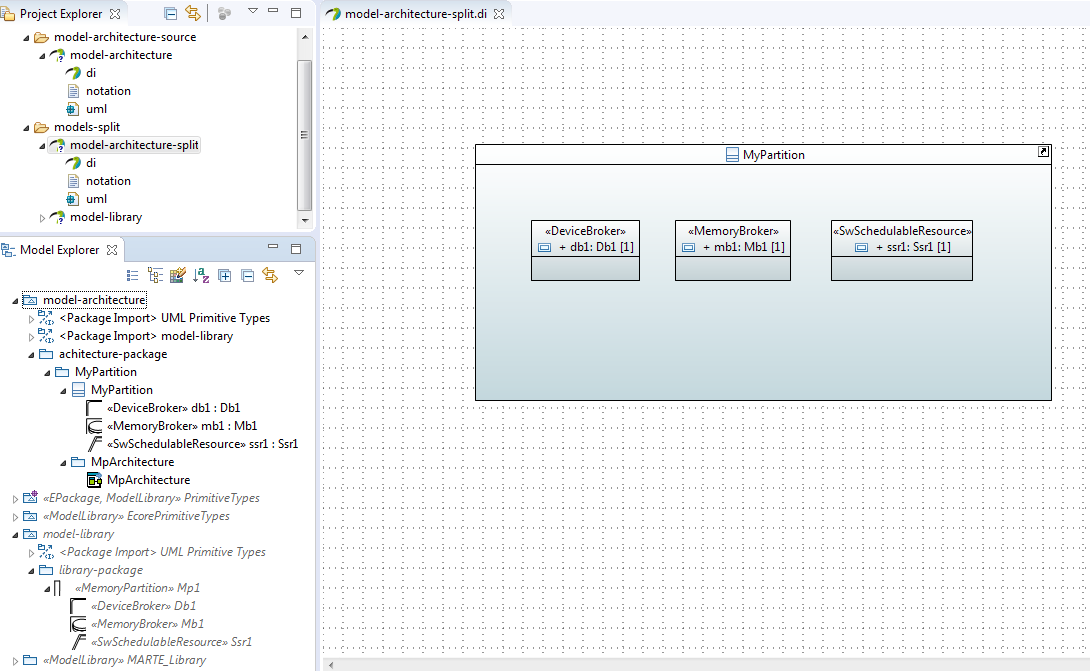

Attachment: attachment2_model-architecture-split.PNG
(Size: 52.81KB, Downloaded 96 times)

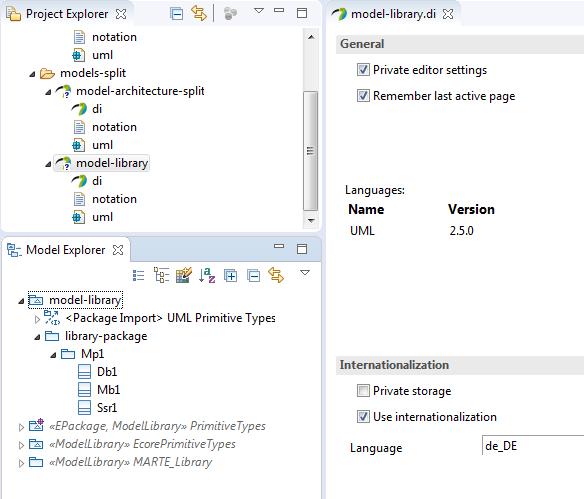

Attachment: attachment3_model-library.PNG
(Size: 30.31KB, Downloaded 82 times)
Attachment: splitmodel2.zip
(Size: 10.33KB, Downloaded 106 times)

Re: Missing diagrams and stereotypes; splitting models [message #1804399 is a reply to message #1804319]

Mon, 25 March 2019 09:55

Eclipse User

Hello Michael,
I confirm the problem. The stereotype are still in the file model-architecture.uml. and the diagram is still in model-architecture.notation after the move.

It is not exactly the same feature, but you could create your library as sub Package of your model, il will avoid to loast stereotype application and diagram.

So in model-architecture.uml, from the Papyrus model Explorer view, select library-package, then Right-Click->Model Refactor -> Create Submodel. , then save.

Now your library is in it own package model, but displayed as an externalized subpackage of model-architecture.

FYI, I fill the bug 545749: Move elements in a library doesn't work properly
https://bugs.eclipse.org/bugs/show_bug.cgi?id=545749

Regards,
--
Vincent
