How to customize SysML transitions? [message #1801040] Fri, 11 January 2019 14:33 Go to next message
ak ka is currently offline ak kaFriend
Messages: 2
Registered: January 2019
Junior Member
Hello,
before asking my question, i would say thanks for providing Papyrus. It's a very useful tool for me to model complex systems and seems to be a serious alternative to some commercial tools.
I'm mainly using Papyrus to create SysML-models and -diagrams. During creation of a Block Definition Diagram (bdd) with composite association i'm unsatisfied with the representation with a lot of labels. These are making my diagram very confusing. I'm wondering if there is a way to customize the appearance in order to make the labels invisible so than only the line is visible? I've read about css stylesheets but i don't understand how to write and apply them.

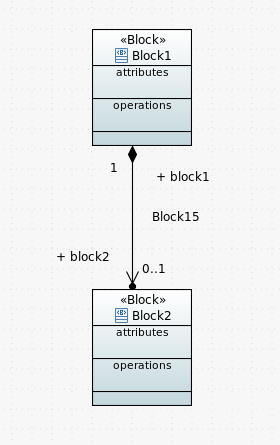

this way the transition is currently represented:

index.php/fa/34652/0/

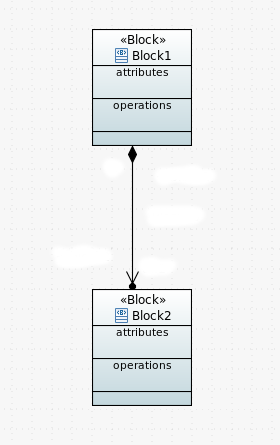

and this way it should be for me:

index.php/fa/34653/0/

Thanks for your help.

akka
  • Attachment: bdd.png
    (Size: 14.13KB, Downloaded 133 times)
  • Attachment: bdd2.png
    (Size: 13.67KB, Downloaded 133 times)
Re: How to customize SysML transitions? [message #1801181 is a reply to message #1801040] Mon, 14 January 2019 21:47 Go to previous messageGo to next message
Adriano Carvalho is currently offline Adriano CarvalhoFriend
Messages: 46
Registered: November 2018
Member
Check this: https://wiki.eclipse.org/MDT/Papyrus/UserGuide/CSS
Re: How to customize SysML transitions? [message #1801191 is a reply to message #1801181] Tue, 15 January 2019 06:20 Go to previous messageGo to next message
Benedikt Bauer is currently offline Benedikt BauerFriend
Messages: 24
Registered: March 2017
Junior Member
If you want such thing to be applied as default setting, CSS is the way to go. If you want it just for a single or some occurrences, you can just click the respective label(s) to select them and hit "delete" on your Keyboard. That will remove the labels from your diagram.
Re: How to customize SysML transitions? [message #1801195 is a reply to message #1801191] Tue, 15 January 2019 07:12 Go to previous messageGo to next message
ak ka is currently offline ak kaFriend
Messages: 2
Registered: January 2019
Junior Member
thank you for your quick answering.
@Benedikt Bauder
i've tried your suggestion and it works if i use "delete from diagram". if i use "delete selected item" the whole transition will be deleted.
@Adriano Carvalho
if i find some more time, i will look into the usage of css. it seems to be a little more complex.

I've found still another way to hide some labels and elements from diagrams by using the filter functionality. right-click on transition->filters->Show/Hide Labels. it works very good for me because i can easily select which labels to show and which to hide.
Re: How to customize SysML transitions? [message #1801197 is a reply to message #1801195] Tue, 15 January 2019 08:06 Go to previous messageGo to next message
Yoann Farre is currently offline Yoann FarreFriend
Messages: 116
Registered: November 2017
Senior Member
Hello,

For the CSS, you can create for example a "style.css" file in the Eclipse project. For your case, add the following css to the file
Association > Label {
	visible : false;
}


Then apply this css file to a diagram by selecting a diagram, select style, "+" button in "diagram style sheets" field. You can also apply to it to the full model.

Yoann.
Re: How to customize SysML transitions? [message #1801223 is a reply to message #1801040] Tue, 15 January 2019 15:36 Go to previous message
Carsten Pitz is currently offline Carsten PitzFriend
Messages: 172
Registered: May 2015
Location: Germany
Senior Member
You can also
1. click on the association on the diagram to select it
2. select "Filters" --> "Hide All Labels" in the context menu
to change the appearance.

But this only alters the appearance of the individual association.

/Carsten
