Node creation [message #1798811]

Mon, 26 November 2018 06:50

Sharmila D

Messages: 81
Registered: June 2018

Member

Hii All

Iam creating Sirius project by taking artop model as a base for my project.I have created all the elements(like Composition ,ARPackage, Application SWcomponent Type etc.,)exists in artop model as diagramatic representation in Sirius.

I got stuck in creation of Text,CDATA,Comment and ProcessInstruction .How to create these elements in sirius .How to represent these elements in sirius.

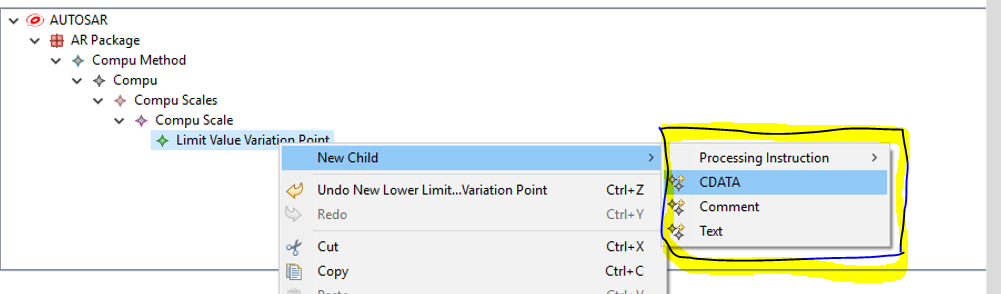

1)In first attchachment Iam showing the elements where Iam facing difficulty in creating

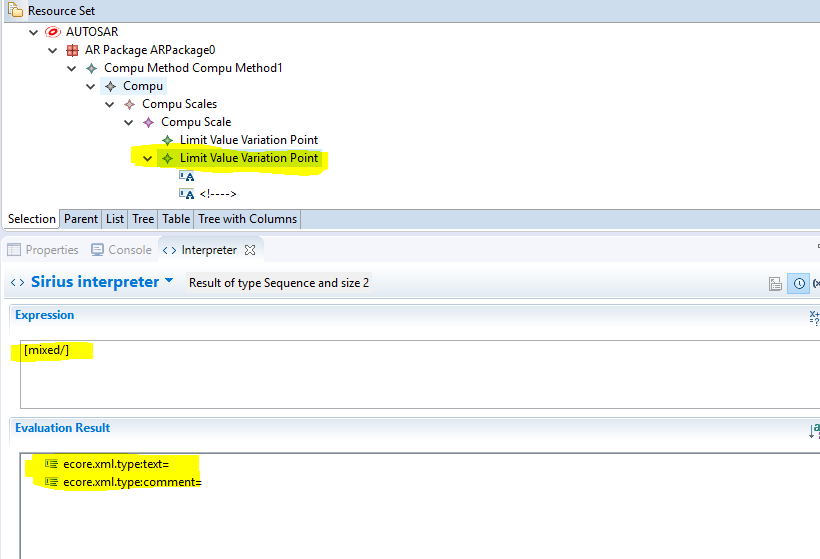

2)In second attachment I have created text and comment under Limit Value variation Point. Limit Value variation Point is having feature as mixed where it will store Text,Comment,CDATA but how to show these elements in eclipse sirius

Attachment: Highlitedelements how to create.PNG
(Size: 62.90KB, Downloaded 49 times)
Attachment: featuremixed.PNG
(Size: 22.17KB, Downloaded 116 times)
