How to create EParameter under Eoperation in eclipse sirius [message #1798153] Tue, 13 November 2018 12:16 Go to next message
Sharmila D is currently offline Sharmila DFriend
Messages: 81
Registered: June 2018
Member
Hii

Iam using Sirius for my project. It is very nice . I got stuck in middle.can anyone help me how to handle this.
Iam having a model which will have Eclasses,Under Eclass Iam having Eoperation under Eoperation Iam having EParameter. Now Iam creating sirius design for this model,
In design For Eclass I have represented container/node.
How to represent EParameter in sirius

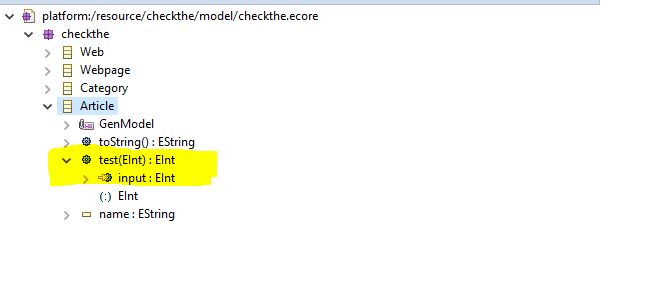

Iam attaching the screen shot of my model

Iam highlighting which I dont know how to create in Sirius
  • Attachment: Model.PNG
    (Size: 9.25KB, Downloaded 73 times)

Report message to a moderator

Re: How to create EParameter under Eoperation in eclipse sirius [message #1798211 is a reply to message #1798153] Wed, 14 November 2018 09:26 Go to previous message
Laurent Fasani is currently offline Laurent FasaniFriend
Messages: 182
Registered: October 2014
Senior Member
Hello

I would suggest that you have a look to ecore tools [1] that is an EMF project leveraging sirius technology to represent and manage ecore model.
It already does that you want and far more.
Have a look in the odesign [2], in Entities in a class Diagram/Default/EC EClass node mapping

[1] https://www.eclipse.org/ecoretools/
[2] https://github.com/eclipse/ecoretools/blob/master/org.eclipse.emf.ecoretools.design/description/ecore.odesign

Regards
Laurent

Laurent Fasani - Obeo
Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator
