Facing Problems While creating delete line tool in Sirius Table representation [message #1794939]

Tue, 11 September 2018 11:48

Divya Patel

Messages: 7
Registered: July 2018

Junior Member

Hi,
I have created the diagram and table description based on my requirement. Table elements(line, feature column) and create line tool are working fine But Delete line tool is not working. Kindly check I have attached an image.

Regards,
Divya Patel

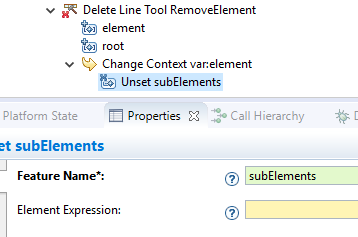

Attachment: Capture1PNG.PNG
(Size: 16.96KB, Downloaded 70 times)

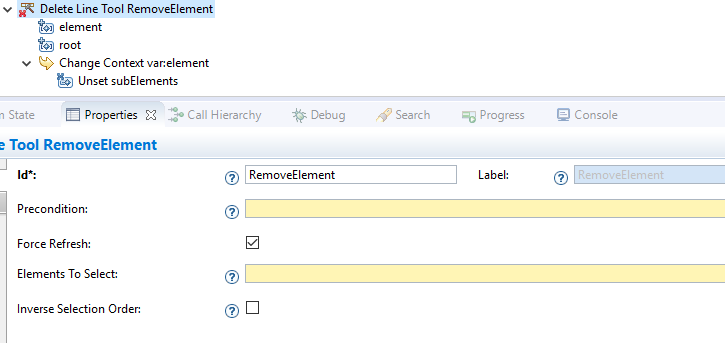

Attachment: Capture2PNG.PNG
(Size: 10.81KB, Downloaded 57 times)

[Updated on: Tue, 11 September 2018 11:53]

Report message to a moderator

Re: Facing Problems While creating delete line tool in Sirius Table representation [message #1794995 is a reply to message #1794939]

Wed, 12 September 2018 10:06

Florian Barbin

Messages: 270
Registered: August 2010

Senior Member

Hi,

you should set the context on the root variable (since it is this element that owns the feature subElements) and set the Element variable in the Element expression field (var:element).

Regards,

Florian
