Behavior of matcher [message #1794831]

Fri, 07 September 2018 11:53

Viktoria Fink

Messages: 12
Registered: May 2016

Junior Member

Hi,
I'm working further programmatically with emf compare. This time I got some strange behavior of the matcher in which case I can't find the reason why.

I have attached the two models of this case. In the right model there is a call and a conditional statement in Step_4. In the left model the call and the conditional statement are deleted and an assignment in actStep_2 is added.

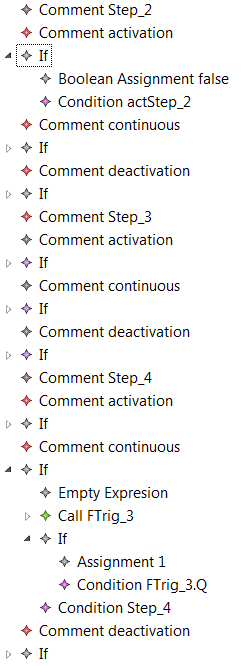

Right: index.php/fa/33832/0/

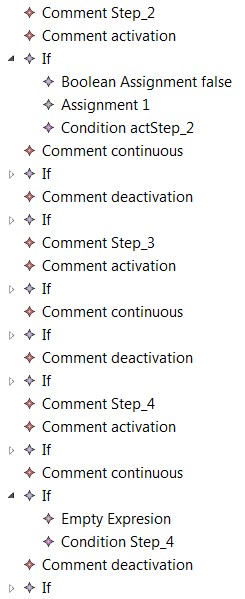

Left:

Now to the behavior: Instead of matching the assignment inside the if-statement to Step_4 it is matched to actStep_2 as right match of the added assignment in the left model. I'm wondering where the problem lies. Is it my thinking, an error or something else? I tried other cases where I added the assignment not in actStep_2 but in the deactivation part of Step_2 and viola it worked just fine. All matches are as expected.
Any suggestions?

Greetings
Viktoria

Attachment: Klassifizierung_3.jpg
(Size: 16.04KB, Downloaded 76 times)
Attachment: Klassifizierung_3_X.jpg
(Size: 14.37KB, Downloaded 76 times)
