Sirius Bordered nodes layout [message #1792949] Thu, 26 July 2018 11:28
Rakesh Nidavani is currently offline Rakesh NidavaniFriend
Messages: 25
Registered: March 2018
Junior Member
When dealing with bordered nodes, the layout algorithm seems to have some issues in arranging the bordered nodes.

Scenario :
Based on the Sirius Example Family Model, we create a node to Represent the Family.
- Members of the family are represented as bordered nodes.
- Men are restricted to the right of the Family node, and women are restricted to the left.

When the node is created, the bordered nodes are not arranged as expected.

1. The bordered nodes are not evenly spaced. Is this expected ?
2. The node labels for the first bordered node always appears above the node, irrespective of the specification in the design file.

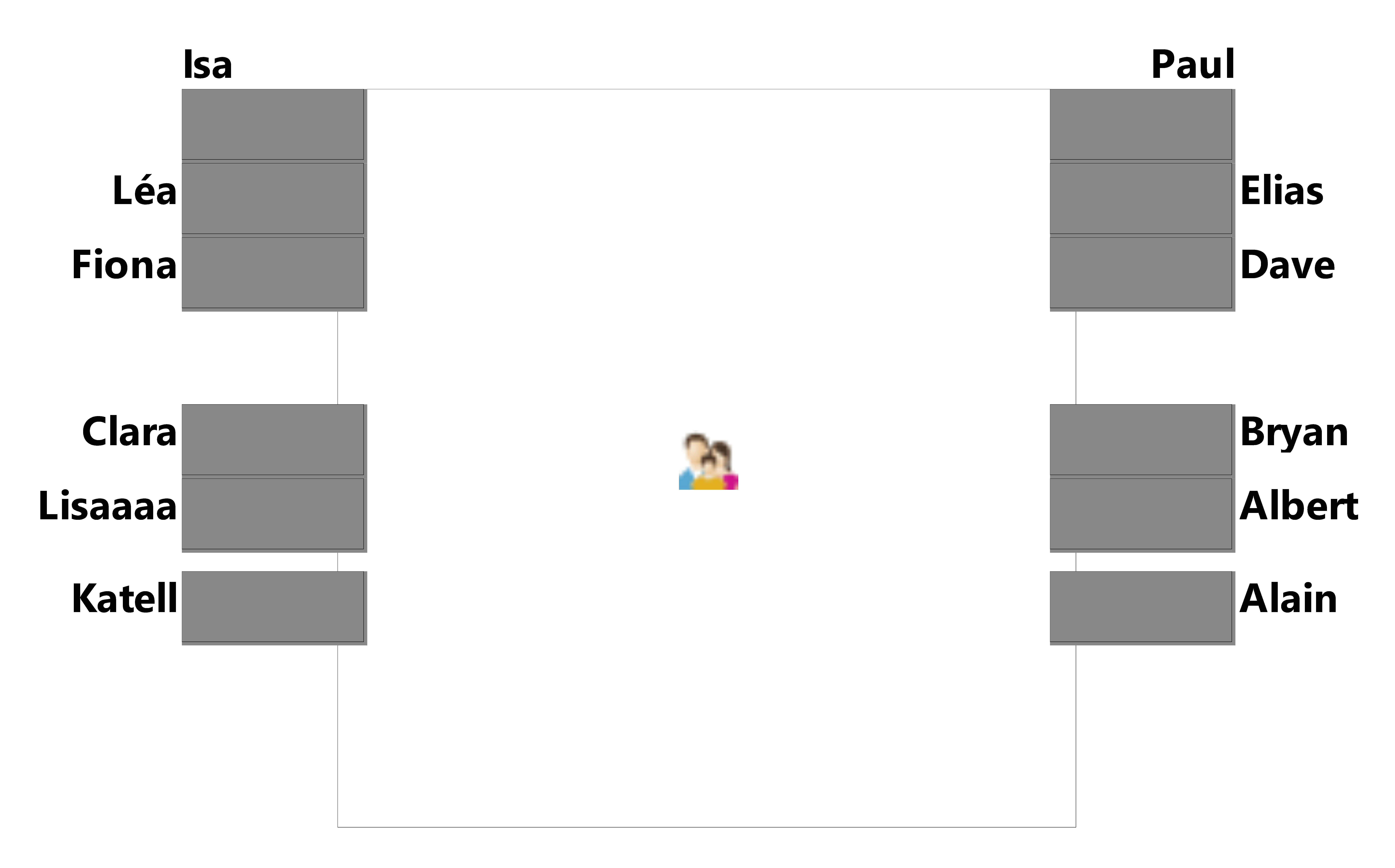

A screenshot and the *.odesign file are attached.

Do let us know how the bordered nodes can be evenly distributed along the sides.
