Inconsistency after deleting element based edge [message #1787251]

Tue, 22 May 2018 15:13

Eclipse User

Hello,

I am currently making my first steps with Sirius and I am quite impressed.
On my way I found some strange behaviour.

1. I am starting with a clean model:

<?xml version="1.0" encoding="UTF-8"?>
<mbse:Package xmi:version="2.0" xmlns:xmi="..." xmlns:xsi="..." xmlns:mbse="tb.mbse">
  <packagedElement xsi:type="mbse:Component"/>
  <packagedElement xsi:type="mbse:Component"/>
  <packagedElement xsi:type="mbse:Component"/>
</mbse:Package>

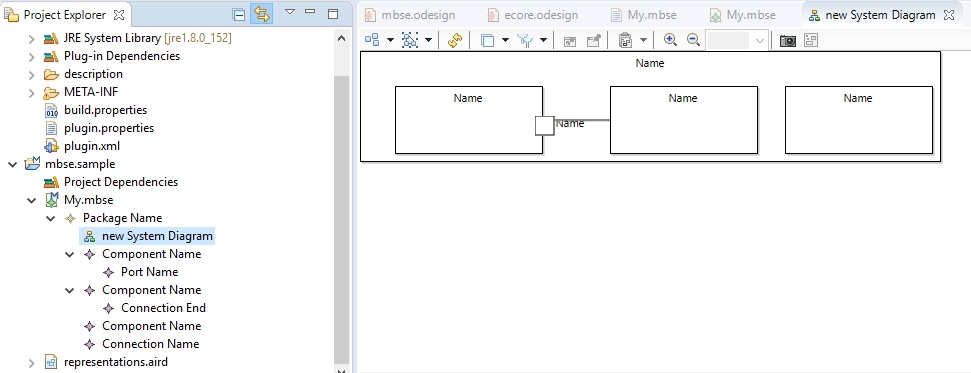

2. I am adding an element based edge between a bordered node (Port is a connection end) and a container (an invisible connection end is created in the context of the container during creation of the edge):
index.php/fa/32882/0/

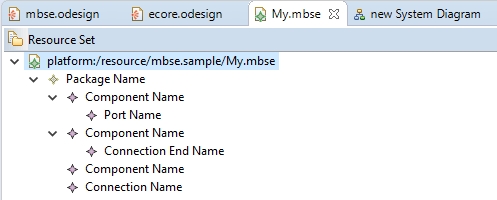

3. In the model tree editor it looks like:
index.php/fa/32883/0/

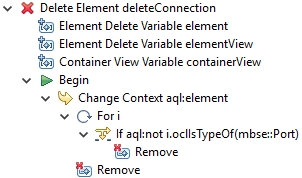

4. Now I am deleting the node based edge with:
index.php/fa/32885/0/

5. It (and the connection ends) seems to be removed in the diagram and in the project explorer:
index.php/fa/32884/0/

6. But in the model editor and in the XMI file the elements are remaining:
index.php/fa/32886/0/

<?xml version="1.0" encoding="UTF-8"?>
<mbse:Package xmi:version="2.0" xmlns:xmi="..." xmlns:xsi="..." xmlns:mbse="tb.mbse">
  <packagedElement xsi:type="mbse:Component">
    <ownedFeature xsi:type="mbse:Port" connection="//@packagedElement.3"/>
  </packagedElement>
  <packagedElement xsi:type="mbse:Component">
    <ownedFeature xsi:type="mbse:ConnectionEnd" connection="//@packagedElement.3"/>
  </packagedElement>
  <packagedElement xsi:type="mbse:Component"/>
  <packagedElement xsi:type="mbse:Connection" end="//@packagedElement.0/@ownedFeature.0 //@packagedElement.1/@ownedFeature.0"/>
</mbse:Package>

Do you have any clue on what is going on there? :)
Do I have to unset something before removing?

Thanks a lot and best regards,
Tom

Attachment: Zwischenablage03.jpg
(Size: 96.38KB, Downloaded 312 times)
Attachment: Zwischenablage04.jpg
(Size: 42.96KB, Downloaded 305 times)
Attachment: Zwischenablage07.jpg
(Size: 25.75KB, Downloaded 307 times)
Attachment: Zwischenablage05.jpg
(Size: 34.21KB, Downloaded 282 times)
Attachment: Zwischenablage08.jpg
(Size: 24.76KB, Downloaded 319 times)

Re: Inconsistency after deleting element based edge [message #1789941 is a reply to message #1787251]

Fri, 01 June 2018 02:20

Eclipse User

Hi Tom,

The Remove operation removes each elements from its container, then at the end of the tool operations, Sirius is supposed to remove the references from the model to the removed elements.

It seems that the model file as not been saved : did you save it ?
Do you still have the '*' in your editor tab ?

Could you check if something has been reported in the error log ?

Regards,

Maxime

Re: Inconsistency after deleting element based edge [message #1801373 is a reply to message #1789941]

Thu, 17 January 2019 14:36

Eclipse User

Hello,

I looked into that project with Eclipse 4.8 again and the issue is still there.

During deleting I can see following error messages during saving:


!ENTRY org.eclipse.sirius 4 0 2019-01-17 21:41:59.991
!MESSAGE Error saving resource
!STACK 0
org.eclipse.emf.ecore.resource.Resource$IOWrappedException: The object 'com.tb.mbse.impl.ConnectionImpl@17aa498e (description: null, URI: null) (name: Name, visibility: public)' is not contained in a resource.
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.endSave(XMLSaveImpl.java:301)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.save(XMLSaveImpl.java:265)
	at org.eclipse.emf.ecore.xmi.impl.XMLResourceImpl.doSave(XMLResourceImpl.java:389)
	at org.eclipse.emf.ecore.resource.impl.ResourceImpl.save(ResourceImpl.java:1475)
	at org.eclipse.sirius.business.internal.session.danalysis.ResourceSaveDiagnose.hasDifferentSerialization(ResourceSaveDiagnose.java:84)
	at org.eclipse.sirius.business.internal.session.IsModifiedSavingPolicy.hasDifferentSerialization(IsModifiedSavingPolicy.java:211)
	at org.eclipse.sirius.business.internal.session.IsModifiedSavingPolicy.computeResourcesToSave(IsModifiedSavingPolicy.java:192)
	at org.eclipse.sirius.business.api.session.AbstractSavingPolicy.save(AbstractSavingPolicy.java:57)
	at org.eclipse.sirius.business.internal.session.danalysis.DAnalysisSessionImpl$1.run(DAnalysisSessionImpl.java:829)
	at org.eclipse.emf.transaction.impl.TransactionalEditingDomainImpl.runExclusive(TransactionalEditingDomainImpl.java:328)
	at org.eclipse.sirius.business.internal.session.danalysis.DAnalysisSessionImpl.doSave(DAnalysisSessionImpl.java:838)
	at org.eclipse.sirius.business.internal.session.danalysis.Saver.wrappedSave(Saver.java:142)
	at org.eclipse.sirius.business.internal.session.danalysis.Saver.access$0(Saver.java:131)
	at org.eclipse.sirius.business.internal.session.danalysis.Saver$1.run(Saver.java:119)
	at org.eclipse.core.internal.resources.Workspace.run(Workspace.java:2289)
	at org.eclipse.core.internal.resources.Workspace.run(Workspace.java:2311)
	at org.eclipse.sirius.business.internal.session.danalysis.Saver.saveNow(Saver.java:116)
	at org.eclipse.sirius.business.internal.session.danalysis.Saver.save(Saver.java:93)
	at org.eclipse.sirius.business.internal.session.danalysis.DAnalysisSessionImpl.save(DAnalysisSessionImpl.java:802)
	at org.eclipse.sirius.business.internal.session.danalysis.DAnalysisSessionImpl.save(DAnalysisSessionImpl.java:797)
	at org.eclipse.sirius.diagram.ui.tools.internal.resource.CustomSiriusDocumentProvider.doSaveDocument(CustomSiriusDocumentProvider.java:279)
	at org.eclipse.gmf.runtime.diagram.ui.resources.editor.document.AbstractDocumentProvider$1SaveOperation.execute(AbstractDocumentProvider.java:596)
	at org.eclipse.gmf.runtime.diagram.ui.resources.editor.document.AbstractDocumentProvider$DocumentProviderOperation.run(AbstractDocumentProvider.java:66)
	at org.eclipse.gmf.runtime.diagram.ui.resources.editor.document.AbstractDocumentProvider.executeOperation(AbstractDocumentProvider.java:530)
	at org.eclipse.gmf.runtime.diagram.ui.resources.editor.document.AbstractDocumentProvider.saveDocument(AbstractDocumentProvider.java:579)
	at org.eclipse.gmf.runtime.diagram.ui.resources.editor.parts.DiagramDocumentEditor.performSave(DiagramDocumentEditor.java:864)
	at org.eclipse.gmf.runtime.diagram.ui.resources.editor.parts.DiagramDocumentEditor.doSave(DiagramDocumentEditor.java:684)
	at org.eclipse.sirius.ui.business.internal.session.SaveSessionRunnable.run(SaveSessionRunnable.java:62)
	at org.eclipse.ui.internal.SaveableHelper$2.run(SaveableHelper.java:370)
	at org.eclipse.core.internal.jobs.Worker.run(Worker.java:60)
Caused by: org.eclipse.emf.ecore.xmi.DanglingHREFException: The object 'com.tb.mbse.impl.ConnectionImpl@17aa498e (description: null, URI: null) (name: Name, visibility: public)' is not contained in a resource.
	at org.eclipse.emf.ecore.xmi.impl.XMLHelperImpl.handleDanglingHREF(XMLHelperImpl.java:754)
	at org.eclipse.emf.ecore.xmi.impl.XMLHelperImpl.getURIFragment(XMLHelperImpl.java:725)
	at org.eclipse.emf.ecore.xmi.impl.XMLHelperImpl.getIDREF(XMLHelperImpl.java:747)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveIDRefMany(XMLSaveImpl.java:2023)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveFeatures(XMLSaveImpl.java:1370)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveFeatures(XMLSaveImpl.java:1224)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveElementID(XMLSaveImpl.java:2716)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveElement(XMLSaveImpl.java:1181)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveElement(XMLSaveImpl.java:1042)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveContainedMany(XMLSaveImpl.java:2417)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveFeatures(XMLSaveImpl.java:1553)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveFeatures(XMLSaveImpl.java:1224)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveElementID(XMLSaveImpl.java:2716)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveElement(XMLSaveImpl.java:1181)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveElement(XMLSaveImpl.java:1042)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveContainedMany(XMLSaveImpl.java:2417)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveFeatures(XMLSaveImpl.java:1553)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveFeatures(XMLSaveImpl.java:1224)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.saveElementID(XMLSaveImpl.java:2716)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.writeTopObject(XMLSaveImpl.java:683)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.traverse(XMLSaveImpl.java:591)
	at org.eclipse.emf.ecore.xmi.impl.XMLSaveImpl.save(XMLSaveImpl.java:251)
	... 28 more

Does somebody have an idea?

Thanks and best regards,
Tom

[Updated on: Thu, 17 January 2019 15:44] by Moderator
