Diagram refresh [message #1783165] Thu, 08 March 2018 16:22 Go to next message
Matthieu Durot is currently offline Matthieu DurotFriend
Messages: 10
Registered: February 2017
Junior Member

When I create a new element in an existing diagram, sometimes relations between elements disappear and the only way to bring them back is to refresh the diagram.

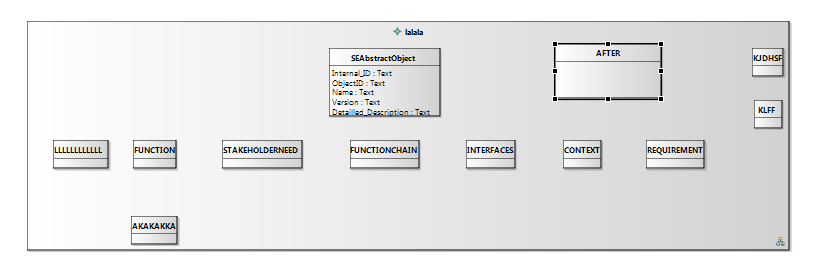

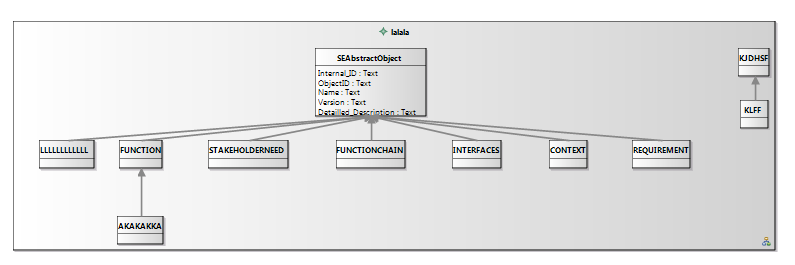

(screenshot below)

How can I refresh a diagram using java service ?



  • Attachment: before.png
    (Size: 38.31KB, Downloaded 213 times)
  • Attachment: after.png
    (Size: 35.42KB, Downloaded 112 times)

[Updated on: Thu, 08 March 2018 16:23]

Report message to a moderator

Re: Diagram refresh [message #1783208 is a reply to message #1783165] Fri, 09 March 2018 08:35 Go to previous message
Florian Barbin is currently offline Florian BarbinFriend
Messages: 253
Registered: August 2010
Senior Member
Hi Matthieu,

The relations are not supposed to disappear. There may be something wrong with the edge mapping. Could you provide us more details about your *.odesign ?
