How to merge measure (summary field) cells in crosstab in one row [message #1783085]

Wed, 07 March 2018 09:13

Eclipse User

Good day!

I have to merge several cells in row in crosstab.

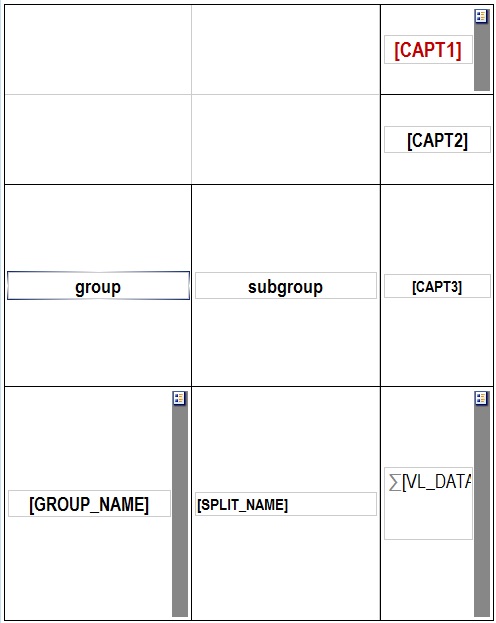

Crosstab in birt designer:
index.php/fa/32242/0/

I'm trying to use script at data onRender event :

if (parseInt(dimension["GroupName"]["SPLIT_NAME"]["SPLIT_ID"]) == -2
&&
dimension["CaptionGroup"]["CAPT3"]["CAPT_ORDER"].toString().substr(2,2) == "02")
{
this.getStyle().textAlign = "left";
if (data["CAPT1"] == "quantity")
{
this.getParent().setColSpan(10);
this.setDisplayValue("1. +/- 5 subgroup diff:\n2. +/- 6 subgroup diff:\n3. +/- 7 subgroup diff:");
}
}

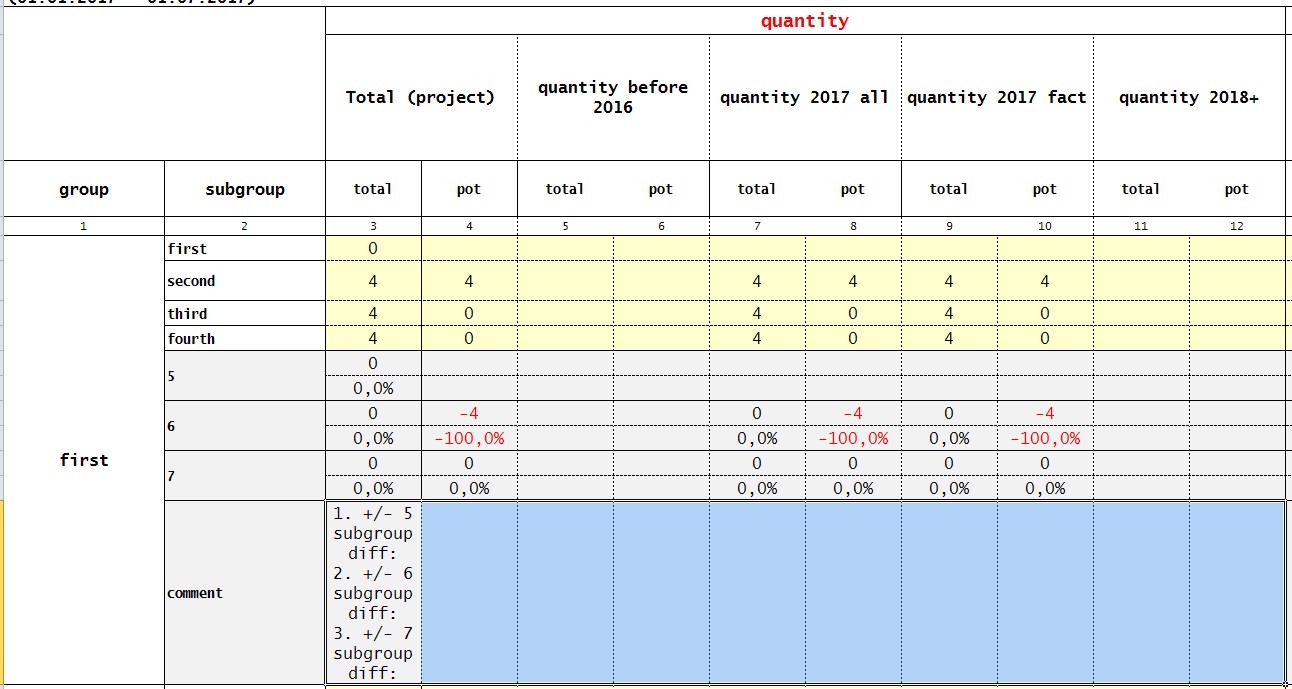

! but it doesn't work! ColSpan attribute changes but it has no effect at result table:

index.php/fa/32241/0/

Is there any workaround to make colSpan work? Or any other way to merge measure cell at runtime (during report execution)?

Thanks in advance.

Attachment: image.jpeg
(Size: 190.67KB, Downloaded 519 times)
Attachment: image.jpeg
(Size: 45.11KB, Downloaded 523 times)

[Updated on: Fri, 16 March 2018 03:21] by Moderator

Re: How to merge measure (summary field) cells in crosstab in one row [message #1783710 is a reply to message #1783085]

Fri, 16 March 2018 03:23

Eclipse User

Is there somebody who knows this how-to?
