Papyrus not Intuitive [message #1782565]

Mon, 26 February 2018 14:17

Kiren Pillay

Messages: 3
Registered: July 2009

Junior Member

I last used Papyrus 6 months ago and struggled then as much as I'm struggling now.

For me , If a component (of whatever type) appears on a palette, I should be able to drag it onto my diagram, or onto the model.

Right now, nothing happens. I have managed to go onto the model and Right-click add new class for example.

Why is this so complicated?

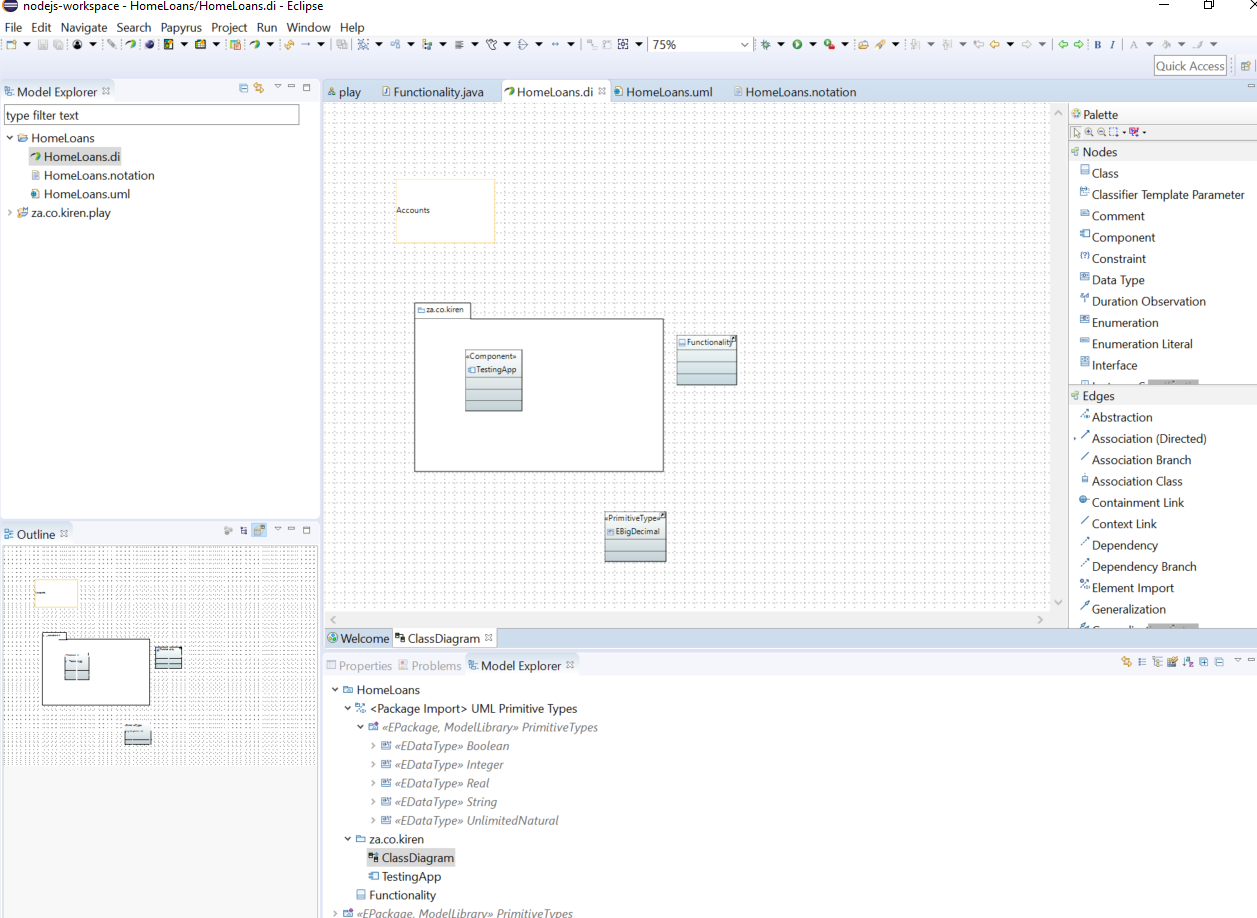

I've attached a picture of what my screen looks like. I cannot drag from the palette onto the diagram or onto the model.

Oxygen.2 Release (4.7.2)
Papyrus 3.1.0

Attachment: Capture.PNG
(Size: 183.18KB, Downloaded 44 times)

Report message to a moderator

Re: Papyrus not Intuitive [message #1782568 is a reply to message #1782565]

Mon, 26 February 2018 14:59

Camille Letavernier

Messages: 878
Registered: February 2011

Senior Member

Hi,

Do you have more info about the error? Papyrus 3.1.0 is not the latest version (And it's not the one shipped with Eclipse/Oxygen 4.7.2; you should be using Papyrus 3.2.0)

Creating elements from the palette works fine for me on Oxygen 4.7.2 / Papyrus 3.2.0

HTH,
Camille

Camille Letavernier

Report message to a moderator

Re: Papyrus not Intuitive [message #1782623 is a reply to message #1782565]

Tue, 27 February 2018 09:12

vincent lorenzo

Messages: 93
Registered: June 2010
Location: Paris Saclay, France

Member

Hi,
your problem is strange. I don't remember a such problem on Papyrus 3.1.0.
FYI, when its works, the creation from the palette can work with these 3 ways (for nodes):
- clicking on the item in the palette, then clicking on the diagram
- dropping the item from the palette in the diagram
- double-clicking on the item and a new object will be directly created in the diagram

Regards,
Vincent

Report message to a moderator

Re: Papyrus not Intuitive [message #1782625 is a reply to message #1782623]

Tue, 27 February 2018 09:21

Kiren Pillay

Messages: 3
Registered: July 2009

Junior Member

Hi Vincent and Camille,

It does work as you say :)

It definitely didn't work immediately after the first installation yesterday, which was quite frustrating. Not sure what happened there [maybe I didn't restart the eclipse as I was supposed to?].

Regards
Kiren

Report message to a moderator

Re: Papyrus not Intuitive [message #1782626 is a reply to message #1782623]

Tue, 27 February 2018 09:23

Ed Willink

Messages: 5930
Registered: July 2009

Senior Member

Hi

I think it depends what drawing tools you are used to.

Some tools are select and drop, others are drag and drop. If you are used to one, the other can be irritating.

You need to learn how Papyrus works, rather than expect it to be like a different favourite tool.

Regards

Ed Willink

Report message to a moderator
